ALMA Array Antenna Locations

This page lists possible problem antenna pad sites.

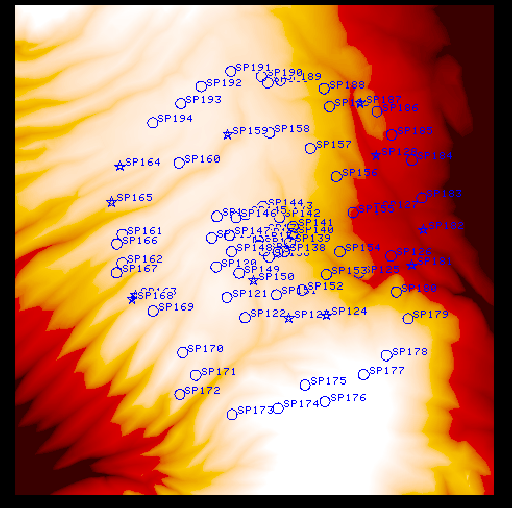

Antenna pad sites which strike me as having some exposure are given as stars in the figure.

628162.02498 7453278.42310 is the location of pad Sp104 in quebrada?

628179.99187 7453222.38644 is the location of pad Sp105 "

628191.82688 7453116.32535 is the location of pad Sp106 "

628235.06889 7453055.49579 is the location of pad Sp107 "

628696.21845 7453347.61666 is the location of pad Sp112

629345.18622 7454044.88635 is the location of pad Sp128

628217.99004 7453231.41894 is the location of pad Sp133 in quebrada?

628225.18858 7453178.36711 is the location of pad Sp134

628273.00078 7453126.00586 is the location of pad Sp135

628406.47444 7453114.95283 is the location of pad Sp137 in depression

628468.60269 7453120.81300 is the location of pad Sp138 "

628550.26909 7453358.53821 is the location of pad Sp141

628420.56229 7453445.77778 is the location of pad Sp142 in depression

628349.57616 7453516.67732 is the location of pad Sp143 "

628260.53446 7453552.04278 is the location of pad Sp144 "

628508.07166 7452484.19280 is the location of pad Sp123 which lies close to a quebrada to the west.

628868.78669 7452507.68413 is the location of pad Sp124 which lies at the head of a quebrada to the SW.

629345.18622 7454044.88635 is the location of pad Sp128 which lies very close to a quebrada heading NW-SE.

628172.43494 7452839.61853 is the location of pad Sp150 which lies near the head of a quebrada heading off to the S.

627922.97165 7454240.50761 is the location of pad Sp159 which lies close to a quebrada to the SE.

627038.29288 7452703.15159 is the location of pad Sp163 which lies on the side of a quebrada to the S heading SW.

626891.67374 7453935.67467 is the location of pad Sp164 which lies near the head of a quebrada on an isthmus between two of them.

626810.24380 7453595.06250 is the location of pad Sp165 which lies very near a quebrada heading SW to NE.

627005.02377 7452663.54919 is the location of pad Sp168 which lies very close to pad 163 with the same concern.

629688.05000 7452987.40300 is the location of pad Sp181 which lies very close to a quebrada passing just S and W of it.

629796.48696 7453328.78307 is the location of pad Sp182 which lies probably a safe distance E of a large quebrada.

629195.33859 7454540.34699 is the location of pad Sp187 which lies near the head of the large quebrada of 182.

1	628392.20370	7453247.39950	Sp	1
2	628384.60210	7453266.36320	Sp	2
3	628382.86430	7453284.64880	Sp	3
4	628381.24300	7453300.57020	Sp	4
5	628360.81990	7453305.05240	Sp	5
6	628344.95560	7453308.24520	Sp	6
7	628315.59870	7453308.55290	Sp	7
8	628305.38040	7453291.47420	Sp	8
9	628288.48910	7453293.29600	Sp	9
10	628295.07160	7453269.99840	Sp	10
11	628274.99960	7453256.60310	Sp	11
12	628285.67950	7453234.30970	Sp	12
13	628292.20490	7453215.44450	Sp	13
14	628306.96030	7453197.06210	Sp	14
15	628322.03840	7453197.48250	Sp	15
16	628340.44540	7453192.31820	Sp	16
17	628360.98690	7453196.38100	Sp	17
18	628376.30620	7453195.32560	Sp	18
19	628391.79520	7453208.89830	Sp	19
20	628395.60820	7453231.35490	Sp	20
21	628362.38560	7453258.73160	Sp	21
22	628358.80600	7453287.38420	Sp	22
23	628336.49980	7453294.44910	Sp	23
24	628326.75230	7453280.93130	Sp	24
25	628314.17340	7453263.84480	Sp	25
26	628300.22540	7453248.51500	Sp	26
27	628323.06090	7453240.24040	Sp	27
28	628313.27570	7453220.60240	Sp	28
29	628338.46660	7453216.34730	Sp	29
30	628353.50570	7453218.95960	Sp	30
31	628371.41410	7453229.09950	Sp	31
32	628371.98570	7453245.25990	Sp	32
33	628344.72180	7453245.32140	Sp	33
34	628419.27420	7453249.06330	Sp	34
35	628426.33240	7453266.19200	Sp	35
36	628413.78820	7453285.71790	Sp	36
37	628406.51550	7453300.49940	Sp	37
38	628399.55090	7453315.13680	Sp	38
39	628382.98350	7453323.78550	Sp	39
40	628372.77670	7453336.51480	Sp	40
41	628356.86510	7453332.56090	Sp	41
42	628333.44340	7453339.22130	Sp	42
43	628318.54940	7453335.75450	Sp	43
44	628305.04110	7453328.08970	Sp	44
45	628288.71390	7453319.79110	Sp	45
46	628279.51910	7453306.58630	Sp	46
47	628268.45880	7453295.33730	Sp	47
48	628262.82580	7453279.03160	Sp	48
49	628262.04820	7453263.00790	Sp	49
50	628262.32670	7453241.54060	Sp	50
51	628262.47270	7453220.06160	Sp	51
52	628273.14240	7453207.12270	Sp	52
53	628279.59530	7453192.31330	Sp	53
54	628288.79520	7453178.94030	Sp	54
55	628303.02910	7453171.60850	Sp	55
56	628316.52010	7453163.83310	Sp	56
57	628329.60140	7453154.21940	Sp	57
58	628345.24740	7453163.44690	Sp	58
59	628366.26250	7453163.90510	Sp	59
60	628386.51330	7453176.31090	Sp	60
61	628400.80480	7453186.88880	Sp	61
62	628405.13750	7453203.22590	Sp	62
63	628414.15290	7453216.79460	Sp	63
64	628415.89310	7453232.90950	Sp	64
65	628319.17077	7453148.60959	Sp	65
66	628364.40806	7453144.13966	Sp	66
67	628432.04002	7453153.20665	Sp	67
68	628461.15762	7453192.32602	Sp	68
69	628464.87296	7453248.81115	Sp	69
70	628452.87232	7453345.86338	Sp	70
71	628440.91523	7453377.15922	Sp	71
72	628388.13359	7453425.01856	Sp	72
73	628290.84580	7453449.13713	Sp	73
74	628227.22008	7453432.76226	Sp	74
75	628127.68822	7453377.93424	Sp	75
76	628090.25618	7453286.06120	Sp	76
77	628093.43619	7453164.83365	Sp	77
78	628111.26491	7453040.86754	Sp	78
79	628198.24229	7452950.20788	Sp	79
80	628340.80689	7452872.22972	Sp	80
81	628549.62296	7452910.13931	Sp	81
82	628673.20684	7453035.29968	Sp	82
83	628799.95804	7453232.03073	Sp	83
84	628884.41476	7453361.41458	Sp	84
85	628787.51856	7453538.54936	Sp	85
86	628604.83732	7453843.49032	Sp	86
87	628398.89627	7453884.10125	Sp	87
88	628140.73089	7453964.97691	Sp	88
89	627800.82968	7453778.15578	Sp	89
90	627591.07703	7453524.43504	Sp	90
91	627384.81363	7453042.35533	Sp	91
92	627464.12781	7452754.96677	Sp	92
93	627700.38950	7452398.36724	Sp	93
94	628161.81896	7452105.35793	Sp	94
95	628675.99841	7452074.90625	Sp	95
96	629146.09537	7452268.41324	Sp	96
97	629615.08205	7452509.64954	Sp	97
98	628443.65503	7453291.67940	Sp	98
99	628415.69977	7453314.51408	Sp	99
100	628380.24482	7453366.65876	Sp	100
101	628328.88691	7453369.80905	Sp	101
102	628253.15920	7453369.13406	Sp	102
103	628209.78031	7453328.96943	Sp	103
104	628162.02498	7453278.42310	Sp	104
105	628179.99187	7453222.38644	Sp	105
106	628191.82688	7453116.32535	Sp	106
107	628235.06889	7453055.49579	Sp	107
108	628350.45465	7453020.04880	Sp	108
109	628459.84052	7453018.95715	Sp	109
110	628533.15848	7453047.63232	Sp	110
111	628596.73874	7453157.47803	Sp	111
112	628696.21845	7453347.61666	Sp	112
113	628638.09681	7453442.29070	Sp	113
114	628554.23188	7453575.55821	Sp	114
115	628318.59059	7453670.54557	Sp	115
116	628201.85928	7453696.79793	Sp	116
117	627959.72586	7453627.89337	Sp	117
118	627819.95172	7453455.91329	Sp	118
119	627771.61512	7453251.22585	Sp	119
120	627813.53532	7452973.46597	Sp	120
121	627915.50676	7452681.69743	Sp	121
122	628089.88027	7452486.07978	Sp	122
123	628508.07166	7452484.19280	Sp	123
124	628868.78669	7452507.68413	Sp	124
125	629182.02229	7452914.64871	Sp	125
126	629488.69567	7453077.24354	Sp	126
127	629356.17462	7453532.73664	Sp	127
128	629345.18622	7454044.88635	Sp	128
129	628900.20933	7454510.41125	Sp	129
130	628307.40591	7454741.55265	Sp	130
131	628263.42135	7453311.63107	Sp	131
132	628236.78652	7453265.37411	Sp	132
133	628217.99004	7453231.41894	Sp	133
134	628225.18858	7453178.36711	Sp	134
135	628273.00078	7453126.00586	Sp	135
136	628320.51703	7453070.32357	Sp	136
137	628406.47444	7453114.95283	Sp	137
138	628468.60269	7453120.81300	Sp	138
139	628521.00039	7453210.37535	Sp	139
140	628545.69002	7453289.02323	Sp	140
141	628550.26909	7453358.53821	Sp	141
142	628420.56229	7453445.77778	Sp	142
143	628349.57616	7453516.67732	Sp	143
144	628260.53446	7453552.04278	Sp	144
145	628096.89378	7453477.29302	Sp	145
146	628004.44129	7453445.83730	Sp	146
147	627941.25254	7453275.28554	Sp	147
148	627961.69160	7453118.59655	Sp	148
149	628033.93593	7452913.28169	Sp	149
150	628172.43494	7452839.61853	Sp	150
151	628388.53530	7452705.52471	Sp	151
152	628636.52651	7452749.65729	Sp	152
153	628869.91428	7452900.30719	Sp	153
154	628999.76440	7453118.50143	Sp	154
155	629126.21144	7453494.77760	Sp	155
156	628966.49284	7453839.90361	Sp	156
157	628716.75549	7454111.00717	Sp	157
158	628323.15663	7454258.98104	Sp	158
159	627922.97165	7454240.50761	Sp	159
160	627456.26400	7453971.13899	Sp	160
161	626912.09087	7453283.70902	Sp	161
162	626912.75043	7453008.20046	Sp	162
163	627038.29288	7452703.15159	Sp	163
164	626891.67374	7453935.67467	Sp	164
165	626810.24380	7453595.06250	Sp	165
166	626859.30009	7453193.65752	Sp	166
167	626857.22024	7452916.15049	Sp	167
168	627005.02377	7452663.54919	Sp	168
169	627205.79000	7452549.46600	Sp	169
170	627492.01200	7452151.82000	Sp	170
171	627616.65278	7451933.85366	Sp	171
172	627464.33771	7451750.82851	Sp	172
173	627965.12700	7451556.12297	Sp	173
174	628406.11336	7451615.00964	Sp	174
175	628665.06989	7451838.78608	Sp	175
176	628855.34376	7451681.20661	Sp	176
177	629226.00300	7451938.82000	Sp	177
178	629446.38129	7452123.33667	Sp	178
179	629654.91374	7452476.22856	Sp	179
180	629539.35000	7452733.52400	Sp	180
181	629688.05000	7452987.40300	Sp	181
182	629796.48696	7453328.78307	Sp	182
183	629783.94912	7453635.63714	Sp	183
184	629688.49666	7453996.90359	Sp	184
185	629495.10506	7454240.39743	Sp	185
186	629355.07505	7454464.00132	Sp	186
187	629195.33859	7454540.34699	Sp	187
188	628847.75574	7454683.39941	Sp	188
189	628428.31715	7454764.18755	Sp	189
190	628247.36629	7454800.97373	Sp	190
191	627953.71215	7454851.36779	Sp	191
192	627668.12648	7454704.58420	Sp	192
193	627473.90618	7454539.32128	Sp	193
194	627203.74886	7454356.29115	Sp	194
