The Millimeter Array Deep Field -- Yun
Min Yun's `very crude' simulation of the MMA Deep Field at 850 microns
|
|
V1. Min Yun's very crude simulation of the MMA Deep Field at 850 microns
All this includes so far are the 5 HDF SCUBA sources plus 1656
model sources brighter than 30 microJy, which is 5 sigma upper
limit after spending about 1 hr per primary beam -- about 200 hrs
total -- covering 4' by 4' field. The sizes of the circles are
logarithmic representation of their 850 micron brightness
(radius = log S(mJy) + 3 -- we can come up with more sensible
things later).
The total number is about a factor 2 larger than Al's analysis
because I am using the latest source count papers the Ivison
and Co: N(>S) = 7900 S^{-1.1} per square degree. Oh, the circle
in the middle is roughly the FOV of SCUBA, so you can compare
directly with Hughes et al. The brighter sources in the circle are
simulations of the actual sources seen by them.
|
Millimeter Array Deep Field Simulations -- Gallimore
Millimeter Array D-array 350 GHz continuum simulation plotted
with a linear stretch. The color channel allocation corresponds to
redshift following red: z > 3; green: 1.5 < z < 3; and blue:
z < 1.5. The field size is 4.2 arcminutes. The assumed cosmology
and evolution match the model Peak-5 of Blain et al. (1999)
(astro-ph/9806062). For simplicity, the sources were taken to be
unresolved. No noise is added in this simulation, but I imposed a flux
cutoff of 0.01 mJy. |
The same simulation plotted with a logarithmic stretch to emphasize
the number of detectable sources.
|
Same simulation as above, except that the sources are now
distributed in randomly oriented 20~kpc diameter disks. The stretch is
linear. |
Disk simulation displayed with a logarithmic stretch.
|
To do list:
- More extensive testing of the algorithms wouldn't hurt.
- Check the math on the cosmology.
- Need to consider realistic source sizes and possible evolution
with redshift?
- Possibly allow the morphology of the sources to vary?
- Add noise to images.
- Vary the cosmology & evolution parameters.
|
Here's the source code:
cosmo1.f
|
Performs all of the source counts as a function of redshift. All
of the parameters are hard-wired right now, but they will be converted
to run-time inputs eventually.
|
cosmoplot.f
|
Generates FITS images based on the output of cosmo1. All of the
sources are placed on the image as single pixels. I use AIPS tasks to
convolve with a gaussian beam (CONVL) and to generate RGB images
(TVRGB). Again, all of the parameters are hard-wired, but will be
softened later. Compilation requires the fitsio library for FORTRAN
and a suitable random number generator for the function ran1 (I used
the Numerical Recipes routine).
|
cosmo2.f
|
Like cosmo1, but also prints out the angular size distance for use in
cosmoplot2.f.
|
cosmoplot2.f
|
Like cosmoplot.f, but places randomly oriented disks of a fixed
diameter around the image.
|
|
Millimeter Array 350 GHz continuum simulation plotted in pseudo-color
with a linear stretch. The background rms is 0.01 mJy, the image
resolution (beam) is 1.5 arcseconds, and the field
size is 4.2 arcminutes. The assumed cosmology
and evolution match the model Peak-5 of Blain et al. (1999)
(astro-ph /
9806062). For illustration, the galaxies were simulated by 20 kpc
diameter uniform disks. |
The same simulation, except that galaxies in redshift bins have been
assigned different color channels: red: z > 3; green: 1.5 < z
< 3; and blue: z < 1.5. The image stretch is linear, and the
simulated noise appears as grey.
|
To do list:
- More extensive testing of the algorithms wouldn't hurt.
- Check the math on the cosmology.
- Need to consider realistic source sizes and possible evolution
with redshift?
- Possibly allow the morphology of the sources to vary?
- Vary the cosmology & evolution parameters.
|
The latest source code:
cosmo3.f
|
Performs all of the source counts as a function of
redshift. Inputs are through the file cosmo3.par. The output file, cosmo3.dat,
can be used as input for cosmoplot3.
|
cosmoplot3.f
|
Generates FITS images based on the output of cosmo3. Inputs are
through the file cosmoplot3.par. This version of the
code allows convolution with a circular Gaussian beam and the addition
of Gaussian noise. Compilation requires the fitsio
library for FORTRAN and the Numerical Recipes subroutines ran1,
gasdev, rlft3, and
fourn . |
nsvs.f
|
This code simply checks the source counts, N(>S) as a function
of S, based on output from cosmo3. Requires the Numerical Recipes
subroutine indexx. |
|
Ways out:
NRAO Charlottesville Homepage
Jack's Homepage
Changed by: Jack Gallimore, 29-Jan-1999
Spectral Lines in the Millimeter Array Deep Field Simulations -- Wootten, Radford, Yun
The above simulations are medium deep mosaicked observations taking a few weeks
at several hundred pointings. We have decided that best sensitivity is at
350 GHz. How would an array as specified in the Project Book observe this?
First, the total coverage from edge to edge of the upper and lower sidebands
is 24 GHz, so the pseudo continuum band should be centered in the window, which
isn't much wider than this.
The observations will be taken in spectral line mode but with coarse
resolution covering all 8 GHz centered on 339 GHz in the LSB. In the
USB, the 4-12 GHz IF centers us at 355 GHz, again with 8 GHz coverage.
This results in the total band matched well to the atmospheric window.
Only 16 GHz can be processed at a single time, so maximum frequency coverage
involves using only one polarization for each sideband.
The minimum frequency resolution per spectral channel is 31.25 MHz, or
27.2 km/s; 90% of the analog bandwidth will be usable for a total
spectral coverage of 12,500 km/s, though non-contiguous. Up to J=8-7
CO at z=1.75, different transitions of CO will fall within the band for
different z. For 25% of z-space, a transition of CO will fall within this
band for some transition. Granted, J=8-7 isn't the most expected search
line, but lines of H2O or CI will also be shifted into the band for
moderate redshifts. Therefore, we will not only detect over 1000 galaxies,
we'll get redshifts for some hefty percentage of them for free. The optical
HDF is dominated by galaxies with z<1.7 though the submillimeter HDF would
be expected to have a somewhat different redshift distribution. Gallimore's
simulations above show this dramatically. But we may
well also obtain redshifts for dozens if not hundreds of galaxies simultaneously
with the continuum observations. We must determine what the sensitivity
will be to line emission for these few hours per pointing integrations,
and what fraction of galaxies we might measure line emission for. This can
be quite rough for the first cut. Perhaps we should show this somehow on
the simulation--randomly pepper the percentage of galaxies for which we
expect CO detections with rainbow colors, to indicate spectral detection?
|
| V24.
From Silk and Spaans ApJ 488, L79 (1997) Fig 2.: Redshift dependence of the CO e
mission spectrum for a starburst galaxy containing 3 x 10^5 Orion regions. The t
hree
red lines indicate the range in line intensities resulting from metallicities eq
ual to 4 and 1/4 times solar. Note the rough constancy of line luminosity with r
edshift. For such galaxies, CO emission should be observable to the
earliest epochs of galaxy formation. Note (see end of this page) a new
preprint by Combes et al. which totally disagrees with this result.
|
|
|

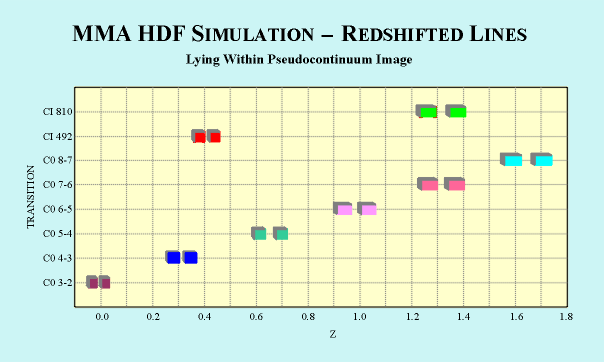

V3. This is shown in the figure to the left,
showing z as abcissa with coverage color coded to lines, listed on the
ordinate. Each CO line is named on the y axis as in column 1 of the table
which I emailed around.
The first CI is 492 GHz, the second 809 GHz. The abcissa (z)
is given on my sketch as two line segments,
the lowest z from column 4 going to column 5, then another segment from
column 2 value to that in column 3.
This figure is being modified to show the actual expected CO intensities for
the galaxies in the field shown above as a 'pie slice' diagram.
|
Min points out:
Of course, the far infrared atomic cooling transitions dominate the spectra
of many galaxies, if not the most luminous ones. However, in many cases they
are still comparable to the CO lines in brightness. Any of these lines
within the z range given in the table will fall within the spectrometer
passband during the deep field integration above. If intense enough for
detection, the deep field integration will result in measurement of the redshift
of the corresponding galaxy. Note that all z between 3 < z < 8 are covered
by one of these lines.
Line | Rest Wavelength (microns) | Frequency (THz) | z range |
[N II] | 205 | 1.463 | 2.96 - 4.32 |
[N II] | 122 | 2.461 | 5.15 - 7.95 |
[C II] | 157 | 1.911 | 4.16 - 5.95 |
[O I] | 63 | 4.76 | 11.9 - 16.4 |
We conclude that the spectrometer coverage which produces the continuum
image above, made with a Large Millimeter Array, also provides the opportunity
to detect emission from bright lines over a large range of z. Hence, in
contrast to the Hubble Deep Field, the LMA Deep Field will image distant
galaxies in much of the third dimension, distance, in addition to their location
on the plane of the sky.
|
|
V4. Min S. Yun plots five sigma detection limits for CO lines in Milky Way
under two different
cosmologies. These are for a Large Millimeter Array of 48 12m antennas.
Furthermore, the 5 sigma detection is calculated over the entire 300 km/s line
but for a single beam. The LMA should be able to detect CO from the Milky Way
out to z=4 even in the q=0.5 no evolution cosmology. The lower magenta colored line is for a
five sigma detection in a single 25 km/s wide line, perhaps relevant to
detecting resolved clouds in individual galaxies.
|
See also:
F. Combes, R. Maoli, and A. Omont, CO lines in high redshift galaxies:
perspective for future mm instruments, accepted in A&A
which you can get off the astro-ph web site (xxx.lanl.gov/archive/astro-ph)
as astro-ph/9902286
Further material relating to CO lines in these fields is available from
Hi-Z Molecule
Page . GBT simulations may be found at
the GBT Deep Field
Page .
