2234+282(CTD 135)QSO z= 0.795 V= 19.0
Notes (from the published papers):
The QSO\,2234+282 is a $V$=19.1 object with a redshift of 0.795.
It is not resolved at kpc-scales at 4.8 and 1.4\,GHz (\citet{Price93}).
The \citet{Fey96} pc-scale maps show a very compact structure at 2.3
and 8.4\,GHz, with hints of extension westwards.

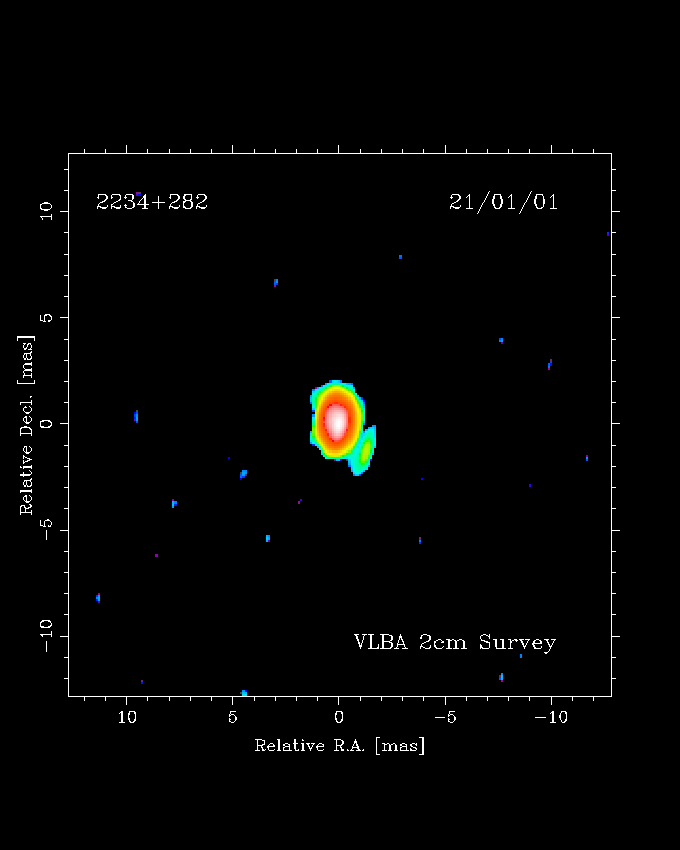

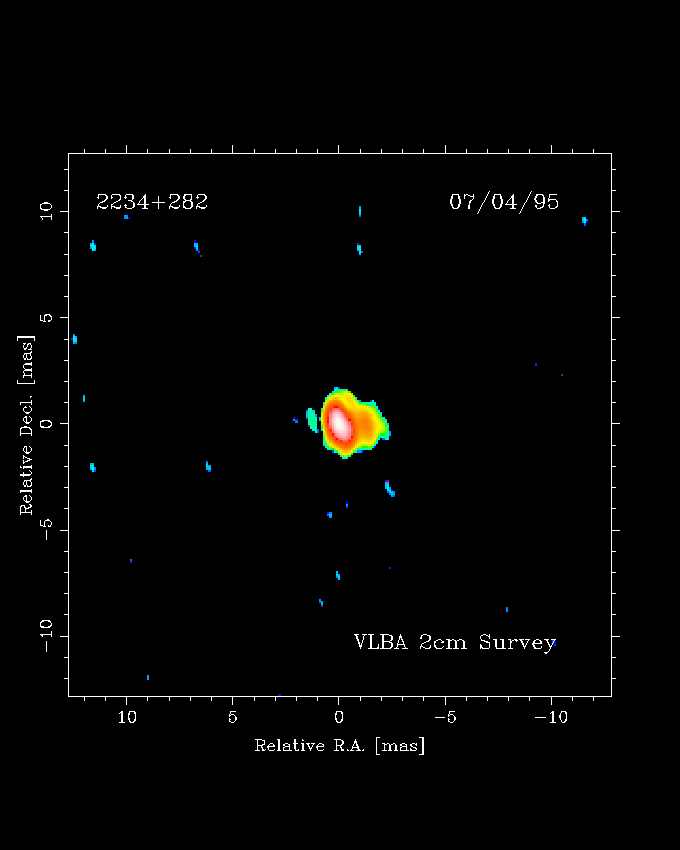

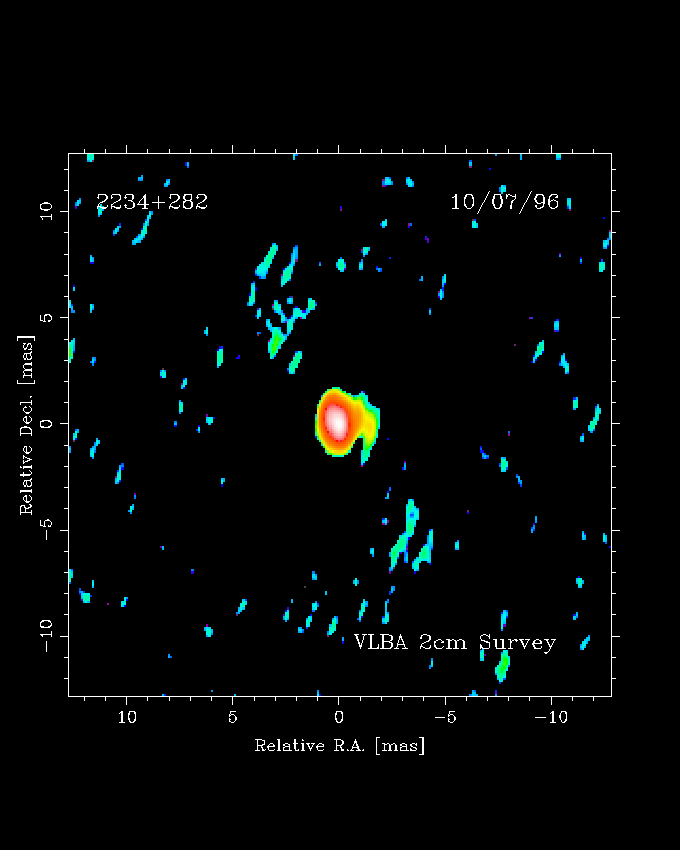

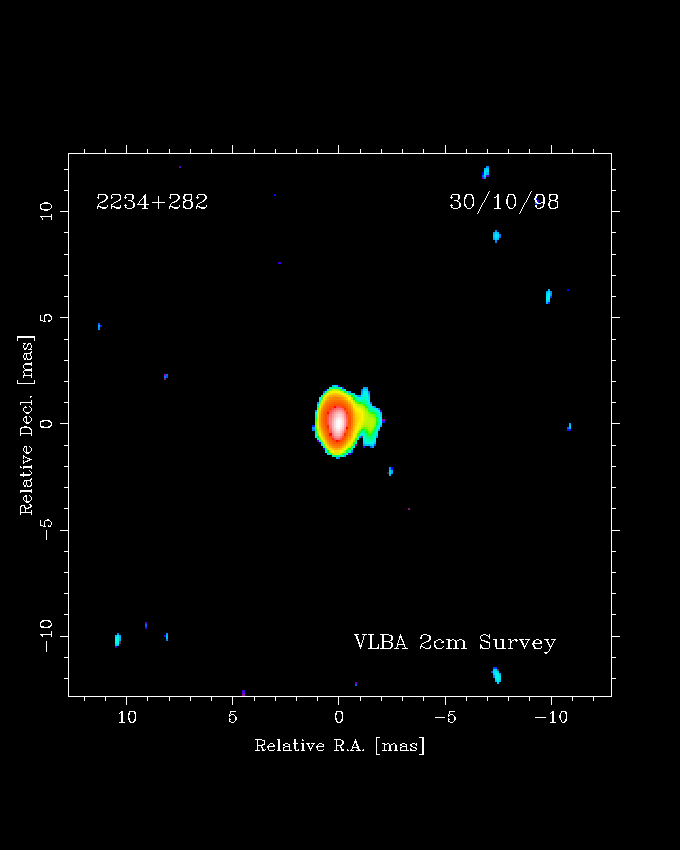

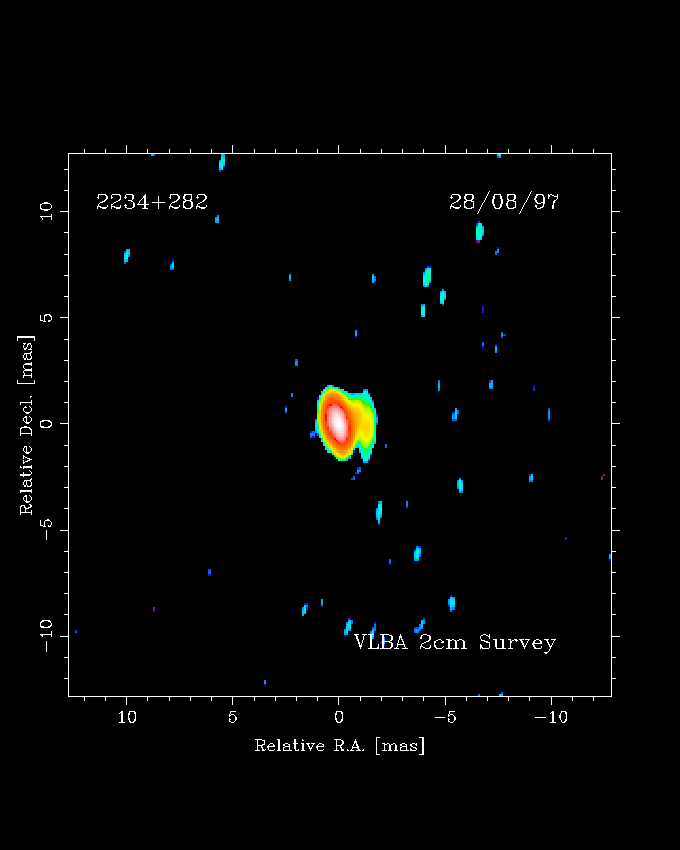

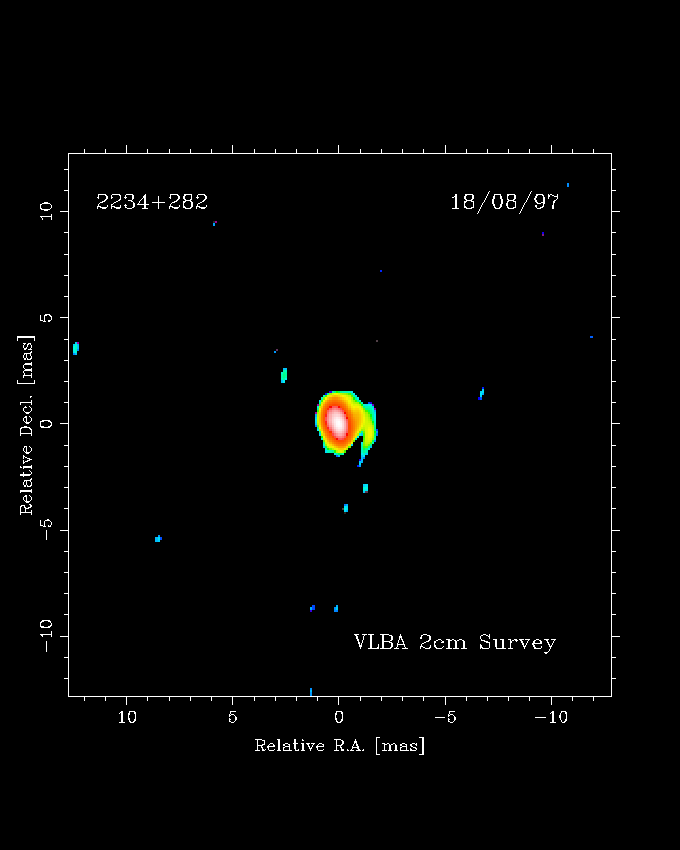

Our maps show a compact structure elongated to a P.A.\,$\sim$20$^\circ$,
with some faint emission further to the West at P.A.\,$-90^\circ$ not outer
than 2\,mas.
|
04/1995 07/1996 08/1997 09/1997 10/1998 01/2001 10/2002 |
PS PS PS PS PS PS PS |
PS PS PS PS PS PS PS |
GIF GIF GIF GIF GIF GIF GIF |
