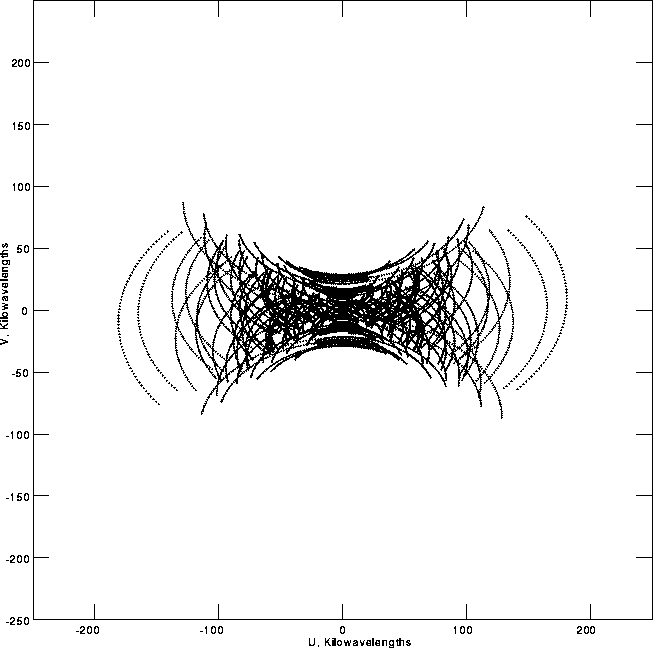

Figure: The u-v plane coverage at 4.9 GHz for full synthesis of a
source at = with the VLA
in the B configuration.

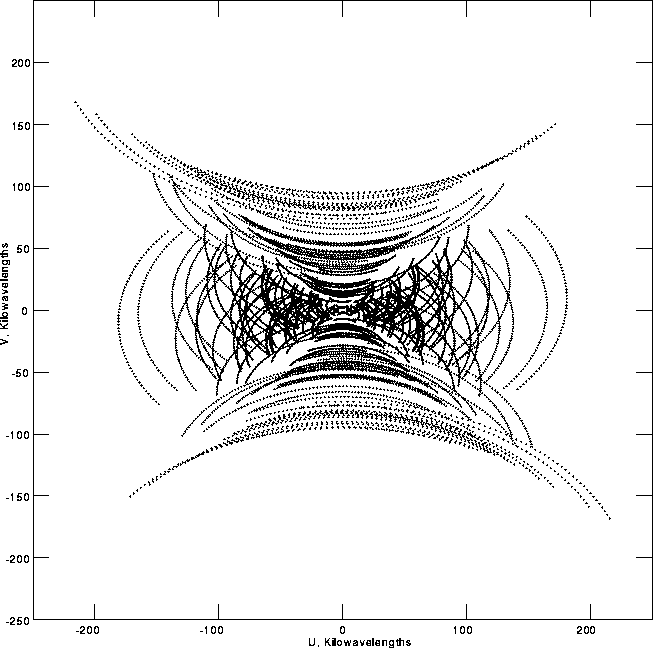

Figure: The u-v plane coverage at 4.9 GHz for a full synthesis of a
source at = with the VLA
in the B configuration on the East and West arms, but in
the A configuration on the North arm (the BnA hybrid).
``Hybrid'' configurations occur during reconfigurations, when the arms of the VLA may either be of different length, or have a non-standard assortment of long and short baselines. Hybrid configurations with long North arms are regularly scheduled. They are useful when imaging regions south of , where the north-south extent of the u-v coverage of the standard configurations is seriously foreshortened by projection. Figures 4 and 5 compare the u-v coverage for the B configuration at = with that of a hybrid configuration whose East and West arms are in the B configuration but whose North arm is in the A configuration. The baselines to the longer North arm fill in a region around the v-axis that is left empty by the standard B configuration. This BnA hybrid is available briefly about every sixteen months, during a reconfiguration from A to B. Similar CnB and DnC hybrids are scheduled between the appropriate reconfigurations.
