Common Name: BZB J0316+0904 MOJAVE 15 GHz   | VLBA 1.4 GHz:
B1950 Name: 0313+088 2 cm VLBA Image map
J2000 Name: J0316+0904
R.A. and Dec. (J2000): 3h16m12.733s
+9d4'43.283"
AGN Class: ISP BL Lac
Redshift: Unknown
Luminosity Distance: Unknown
Radio Spectrum: Flat
Gamma-ray Association LAT: Y, EGRET: N, TeV: N
Kpc-scale morphology: Unknown
Jet Speed: Maximum: Unknown ;
Median: Unknown ;
Separation Versus Time Plot: Not available

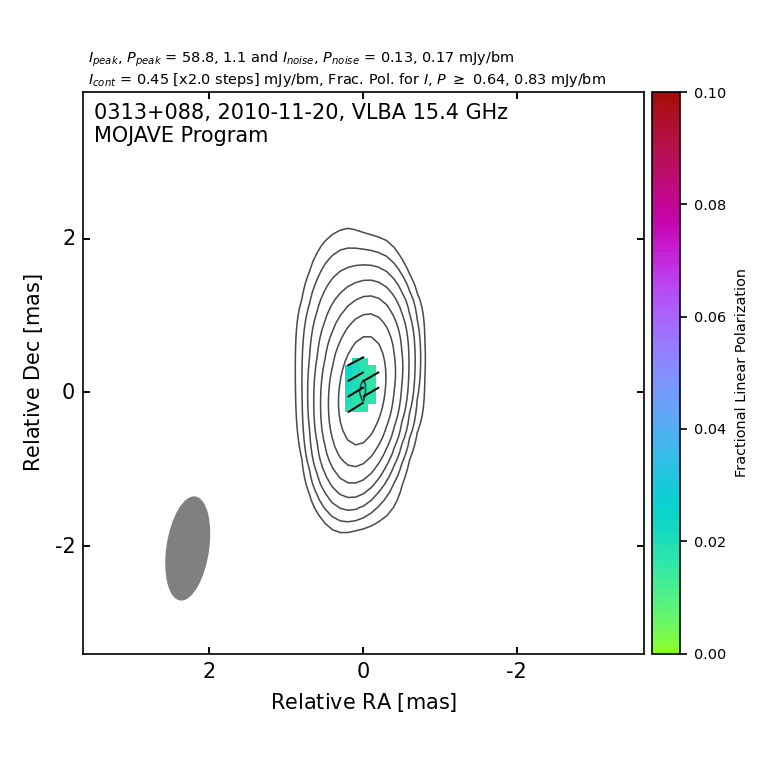

Stacked 15 GHz Stokes I VLBA images:
Natural weight:   Not Available
Circular Beam:   Not Available
Tapered Beam:   Not Available

Stacked 15 GHz Polarization VLBA images:

Rotation Measure 8-15 GHz Map: | Not available |

Spectral Index 8-15 GHz Map: | Not available |


VLBA 23 GHz:
Kpc-scale:
23 GHz Image
Kpc Image

Fermi LAT and 15 GHz VLBA Light Curves

Fermi LAT and 15 GHz VLBA Light Curves
VLBA 43 GHz:
Multiepoch Radio Spectrum:
43 GHz Image

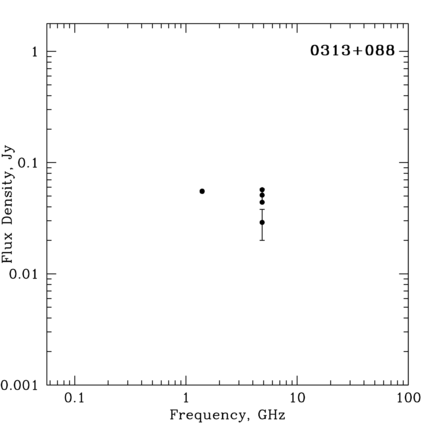

Radio Spectrum
Comments: LAT_1FM weak sample; z = 0.372 from host mag by 2014ApJ...784..151S

If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"

Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Epoch
(YYYY-MM-DD)
VLBA Code VLBA I
(mJy)
VLBA P
(mJy)
VLBA
P (%)
VLBA
EVPA (deg.)
I Image (Nat. Weight) Visibility
Data
Stokes I Radplot Polarization
Full
Montage
2010-11-20 BL149CX 64 no data FITS   PNG   PDF UVF PNG   PDF PNG
