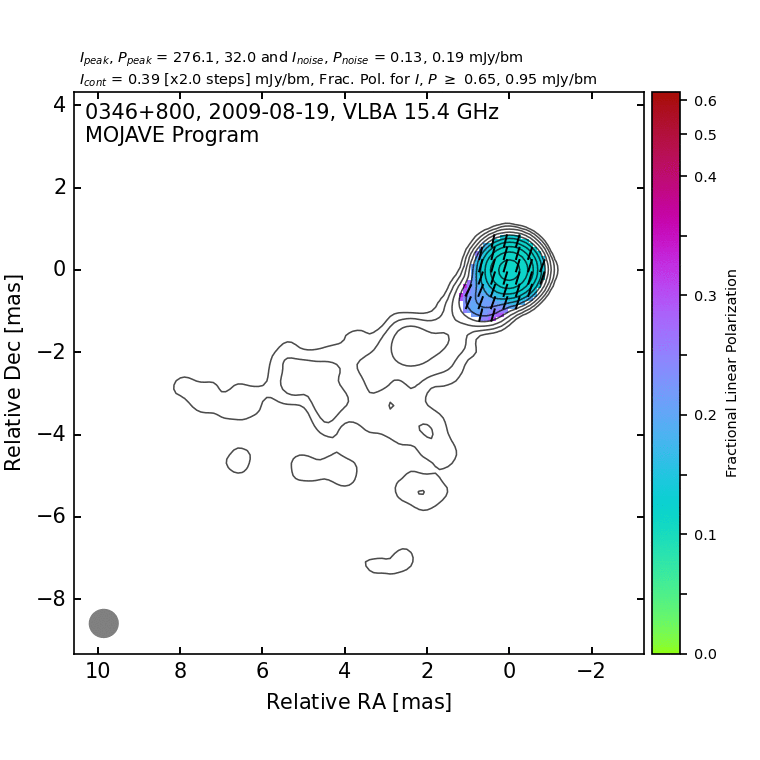

Common Name: S5 0346+80 MOJAVE 15 GHz [Total intensity movie]   | [Polariz. movie] VLBA 1.4 GHz:
B1950 Name: 0346+800 2 cm VLBA Image map
J2000 Name: J0354+8009
R.A. and Dec. (J2000): 3h54m46.126s
+80d9'28.847"
AGN Class: LSP BL Lac
Redshift: Unknown
Luminosity Distance: Unknown
Radio Spectrum: CSS
Gamma-ray Association LAT: Y, EGRET: N, TeV: N
Kpc-scale morphology: One-sided
Jet Speed: Maximum: 35 ± 21 μas/y ;
Median: N/A ;
based on 3 moving features
Lister et al. 2019, ApJ,874,43

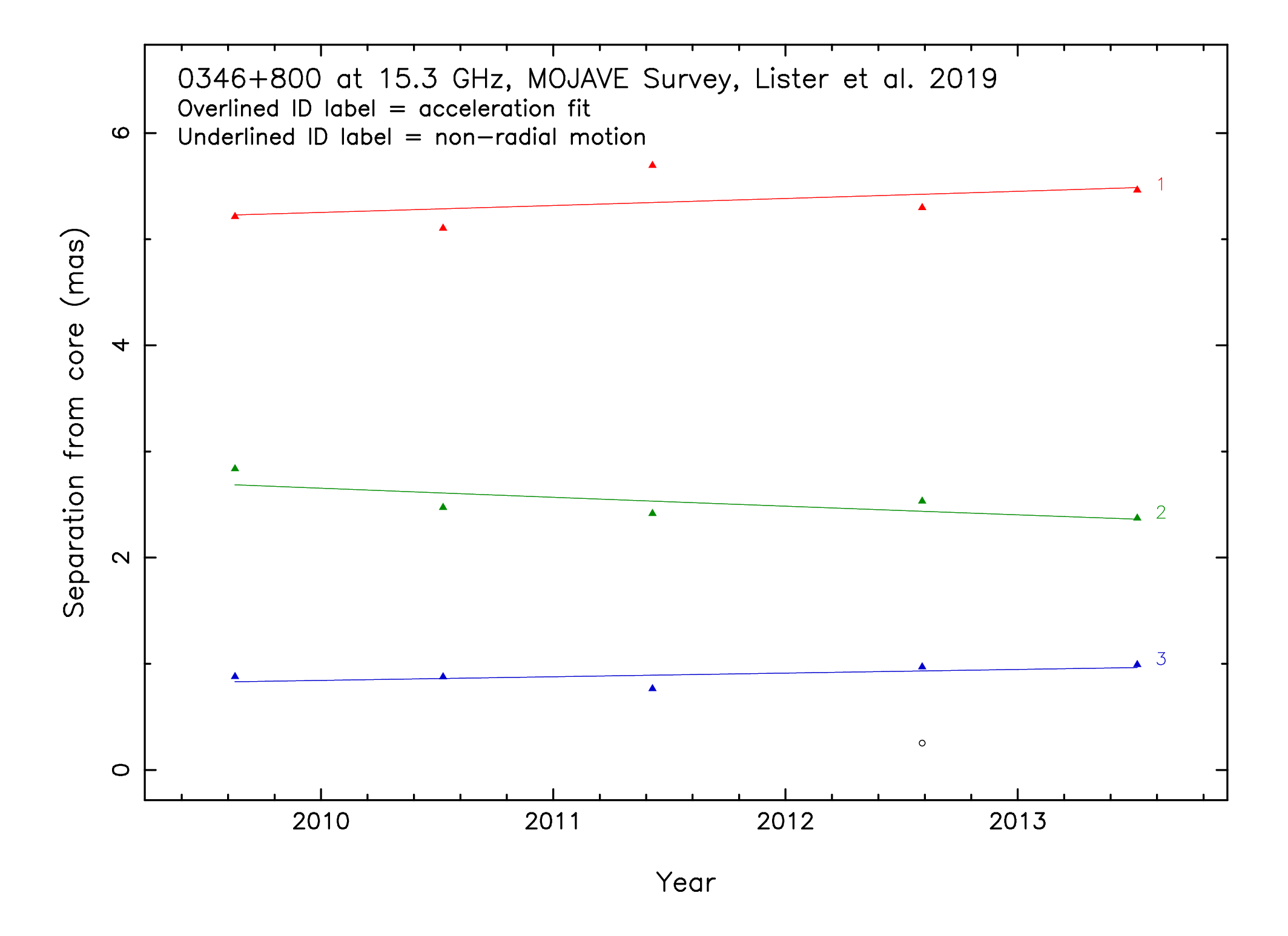

Separation Versus Time Plot: PNG    PDF
Stacked 15 GHz Stokes I VLBA images:
Natural weight:   PNG PDF FITS

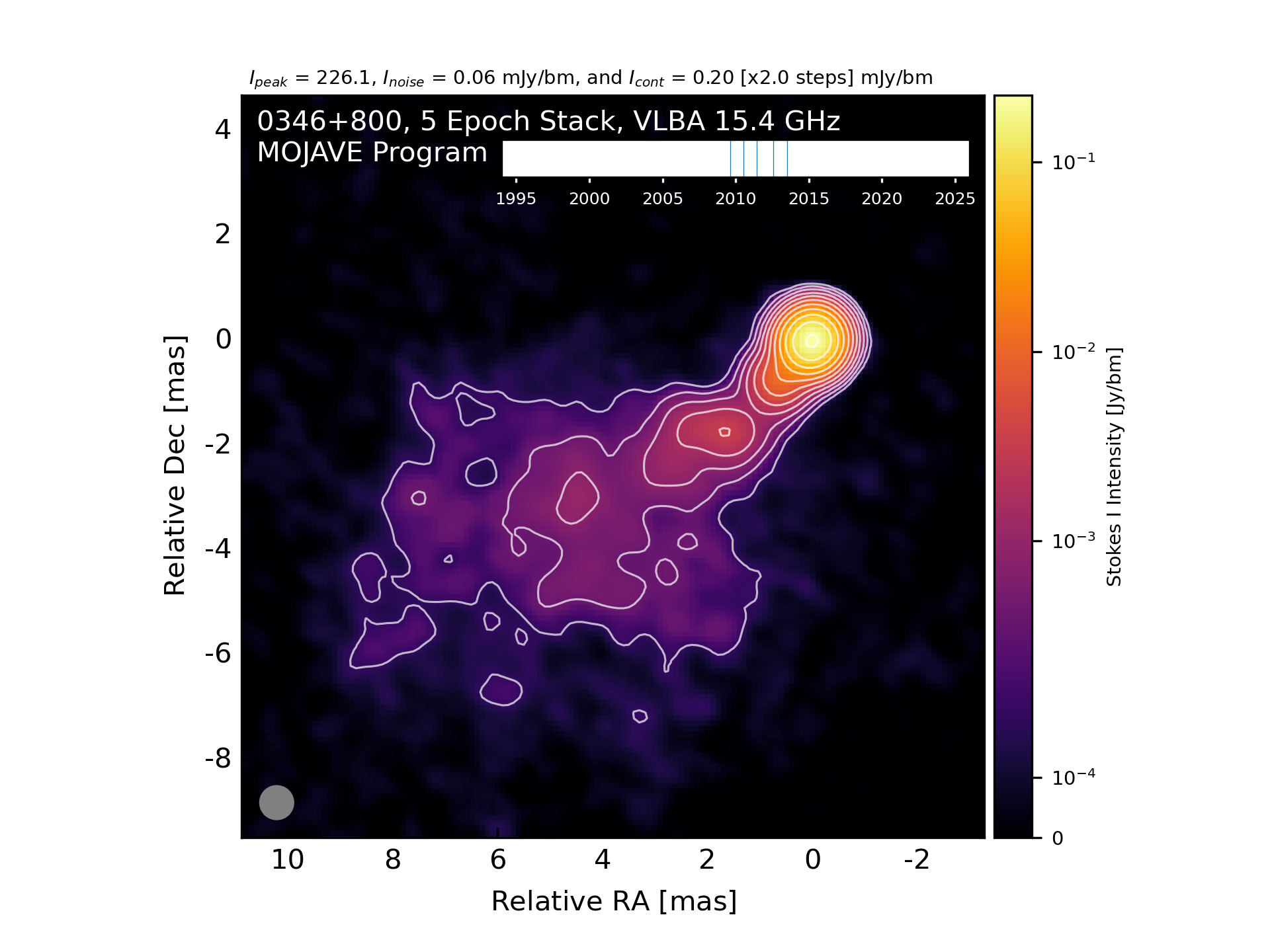

Circular Beam:   PNG PDF FITS

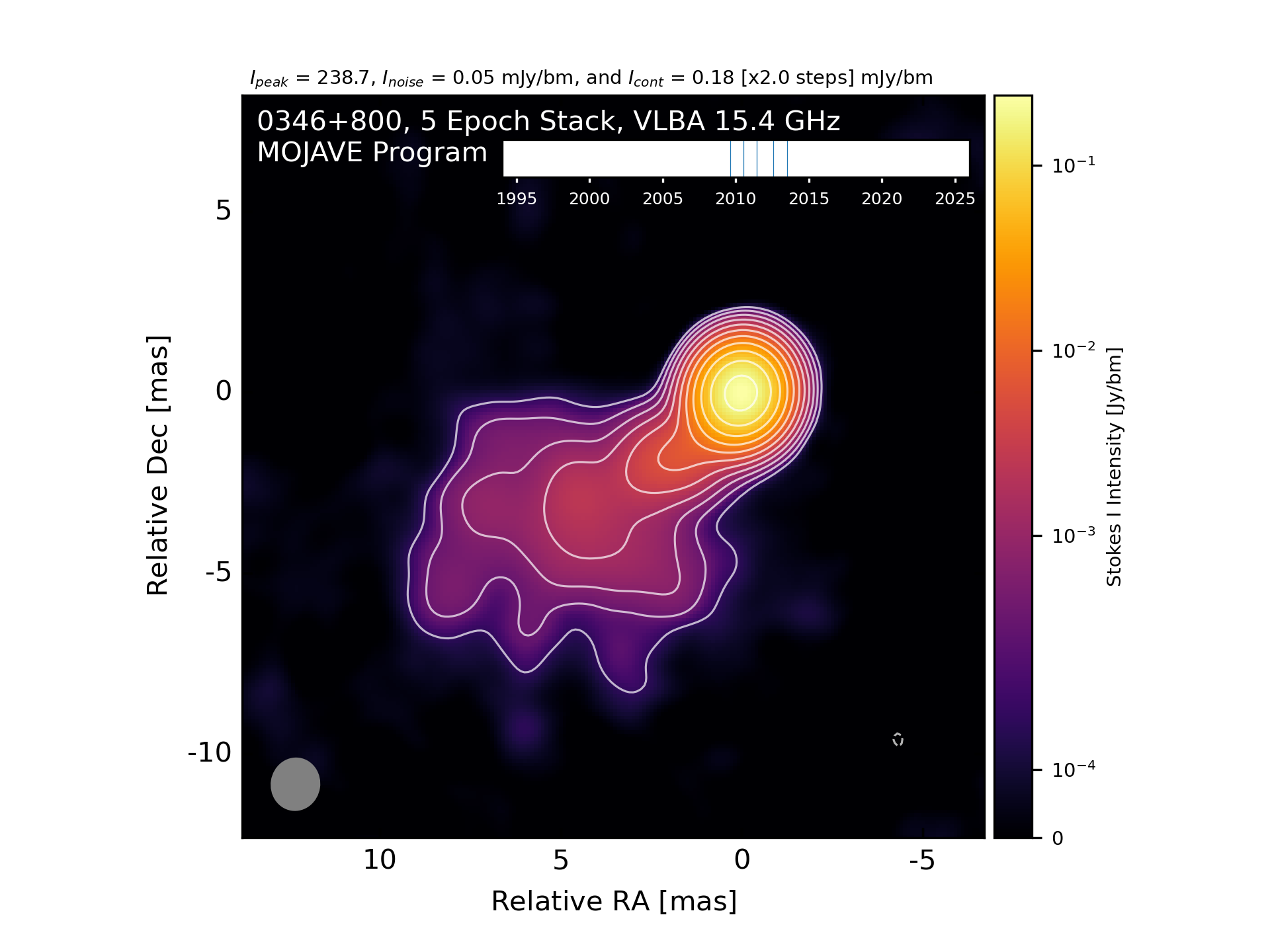

Tapered Beam:   PNG PDF FITS
Stacking for 1994-2015:   FITS

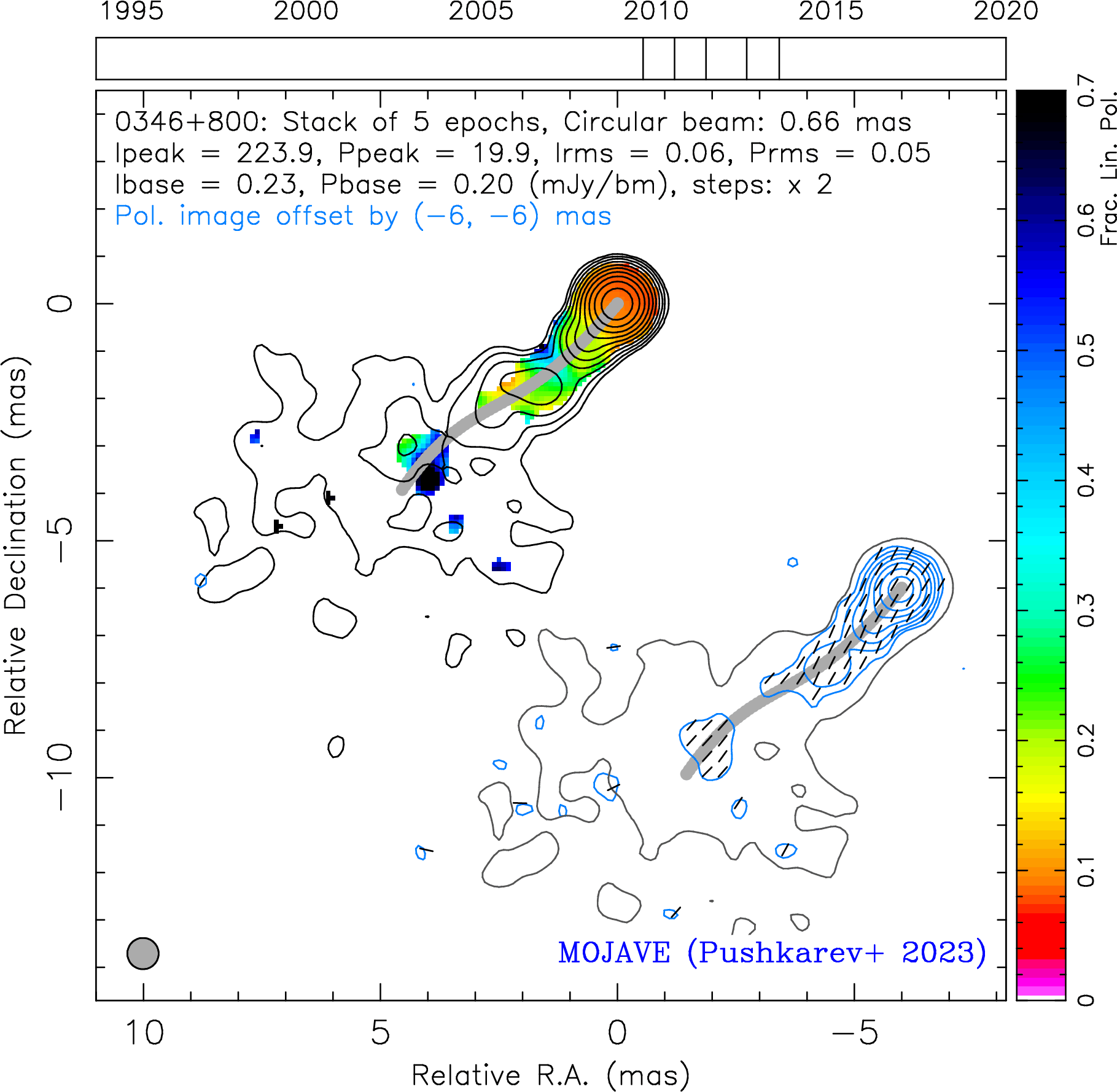

Stacked 15 GHz Polarization VLBA images:

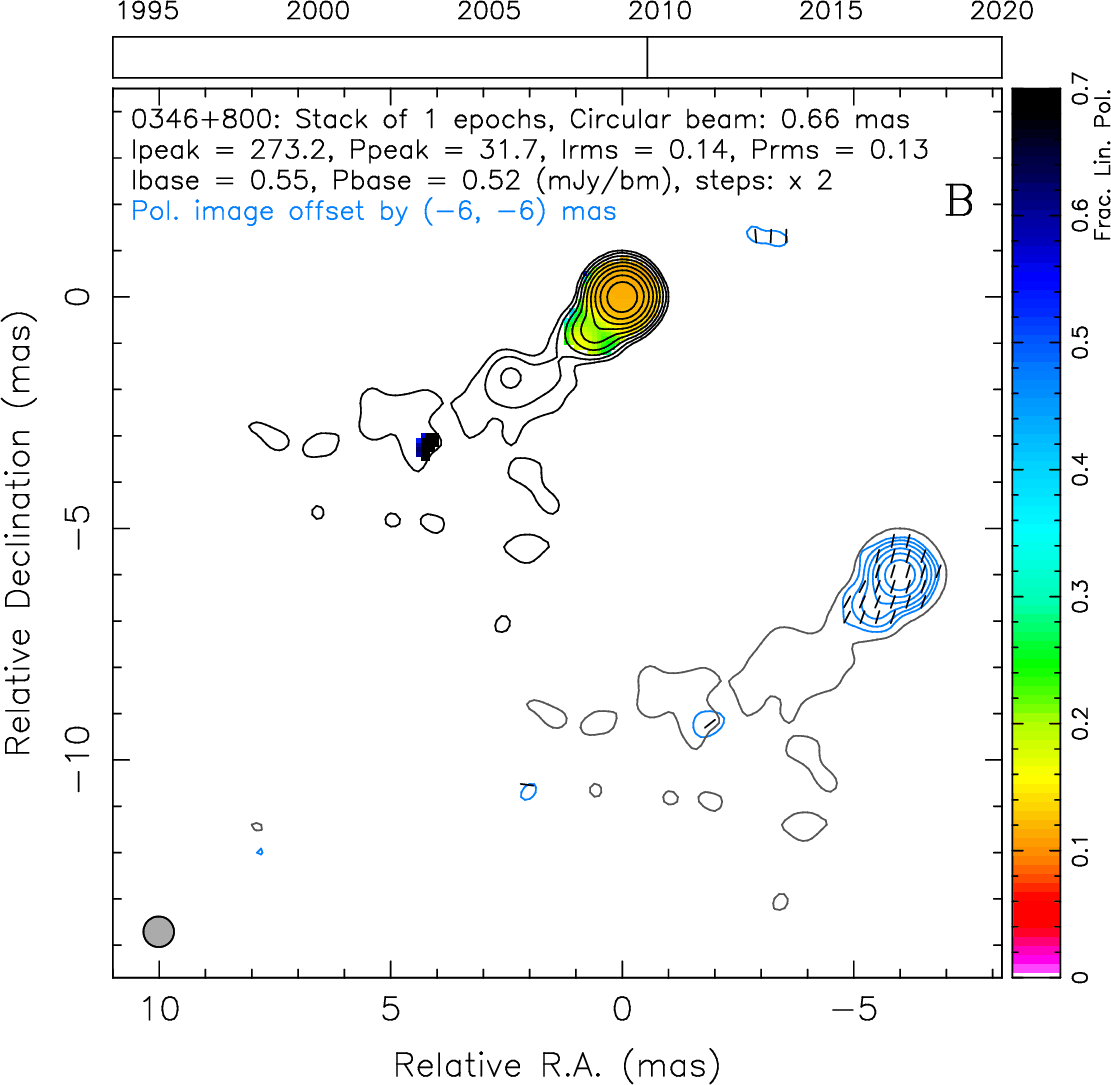

Method I:   Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS
Method II:   std EVPA PNG, FITS

Rotation Measure 8-15 GHz Map: | Not available |

Spectral Index 8-15 GHz Map: | Not available |


VLBA 23 GHz:
Kpc-scale: Wilkinson et al., 1998, MNRAS, 300 790
23 GHz Image

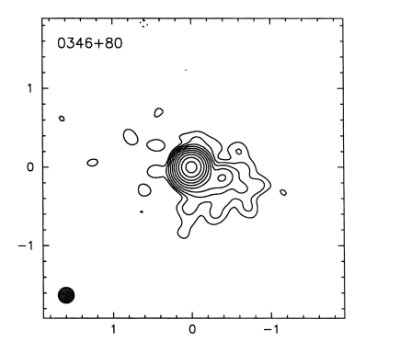

Kpc Image

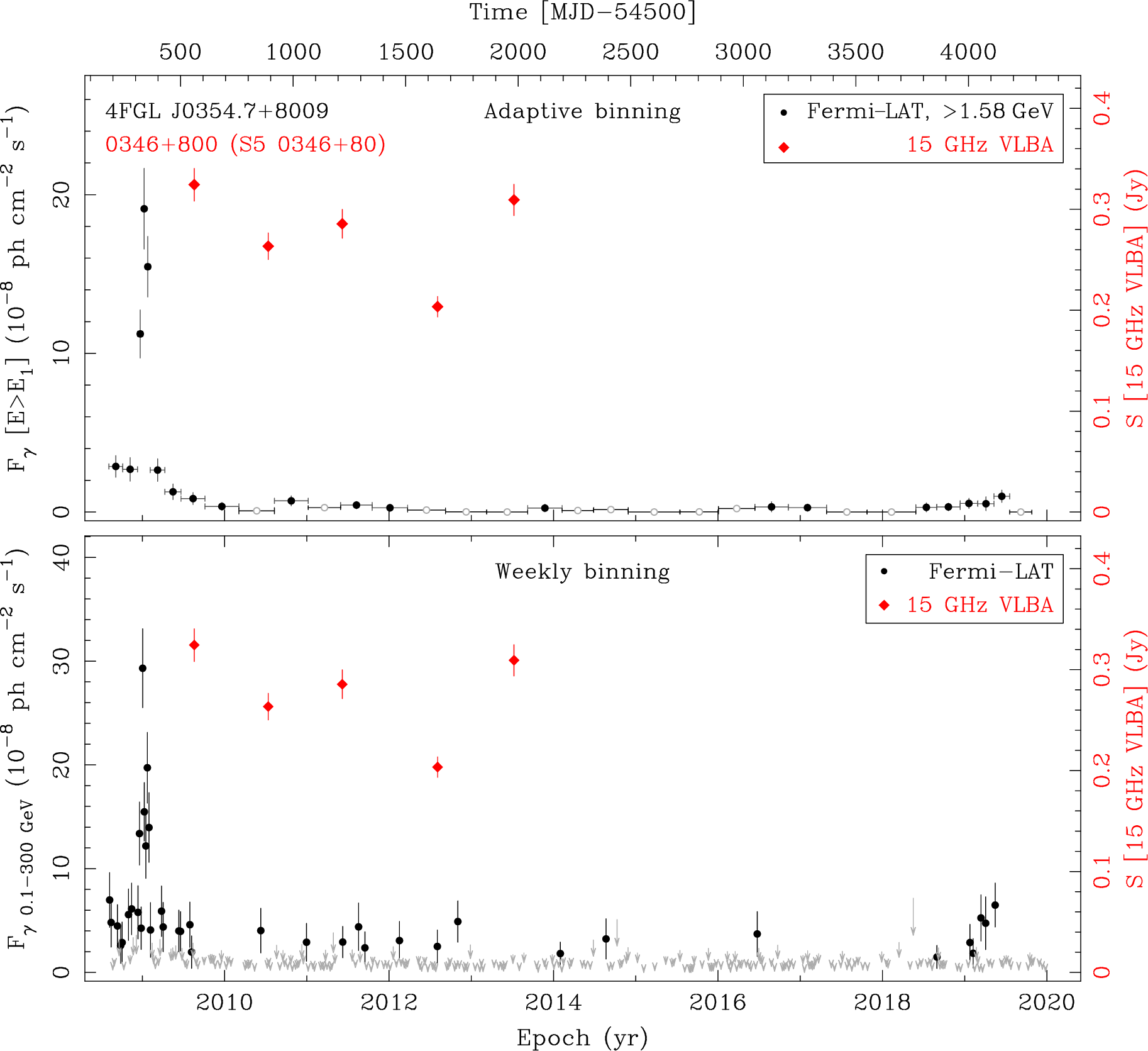

Fermi LAT and 15 GHz VLBA Light Curves

Fermi LAT and 15 GHz VLBA Light Curves
VLBA 43 GHz:

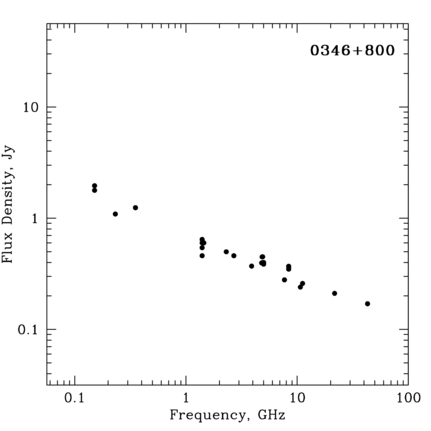

Multiepoch Radio Spectrum:
43 GHz Image
Radio Spectrum
Comments: Was 1FM candidate, tentative z=1.03 by 2007A&A...472..763B; 2011ApJ...743..171A find no lines

If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"

Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Epoch
(YYYY-MM-DD)
VLBA Code VLBA I
(mJy)
VLBA P
(mJy)
VLBA
P (%)
VLBA
EVPA (deg.)
I Image (Nat. Weight) Visibility
Data
Stokes I Radplot Polarization
Full
Montage
2013-07-08 BL178BE 290 22 7.7 130 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2012-08-03 BL178AN 199 12 6.2 137 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-06-06 BL149DJ 271 31 11.4 137 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-07-12 BL149CL 250 36 14.3 159 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-08-19 BL149BR 310 34 11.0 162 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
