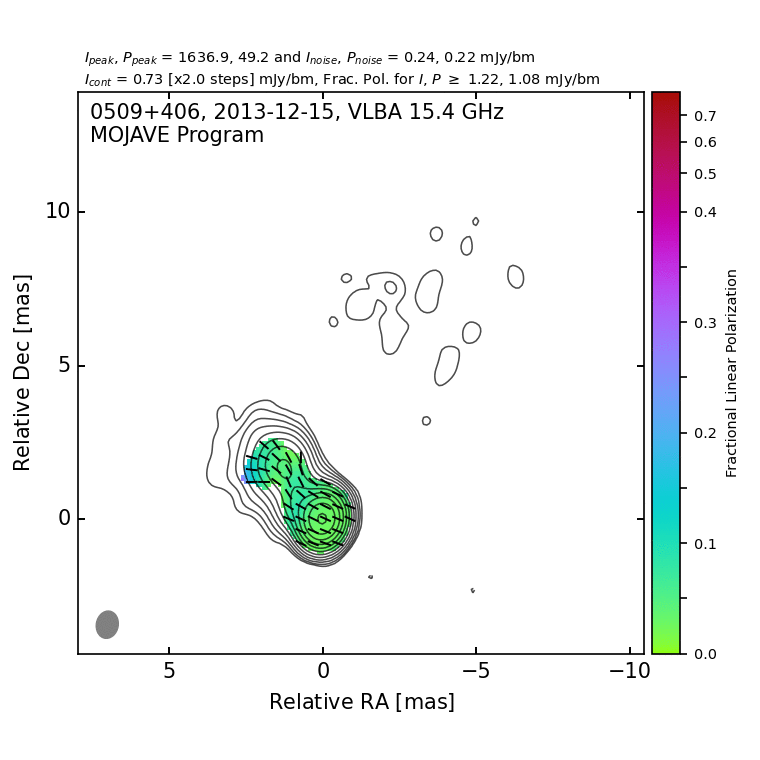

| Common Name: | B3 0509+406 | MOJAVE 15 GHz [Total intensity movie] | [Polariz. movie] | VLBA 1.4 GHz: |
| B1950 Name: | 0509+406 |  |
 |
| J2000 Name: | J0512+4041 | ||
| R.A. and Dec. (J2000): | 5h12m52.543s +40d41'43.620" |
||
| AGN Class: | LSP U | ||
| Redshift: | Unknown | Luminosity Distance: | Unknown |
| Radio Spectrum: | Flat | ||
| Gamma-ray Association | LAT: Y, EGRET: N, TeV: N | ||
| Kpc-scale morphology: | Unknown | ||
| Jet Speed: | Maximum: 303 ± 33 μas/y ; Median: N/A ; based on 4 moving features Lister et al. 2021, ApJ,923,30 |
||

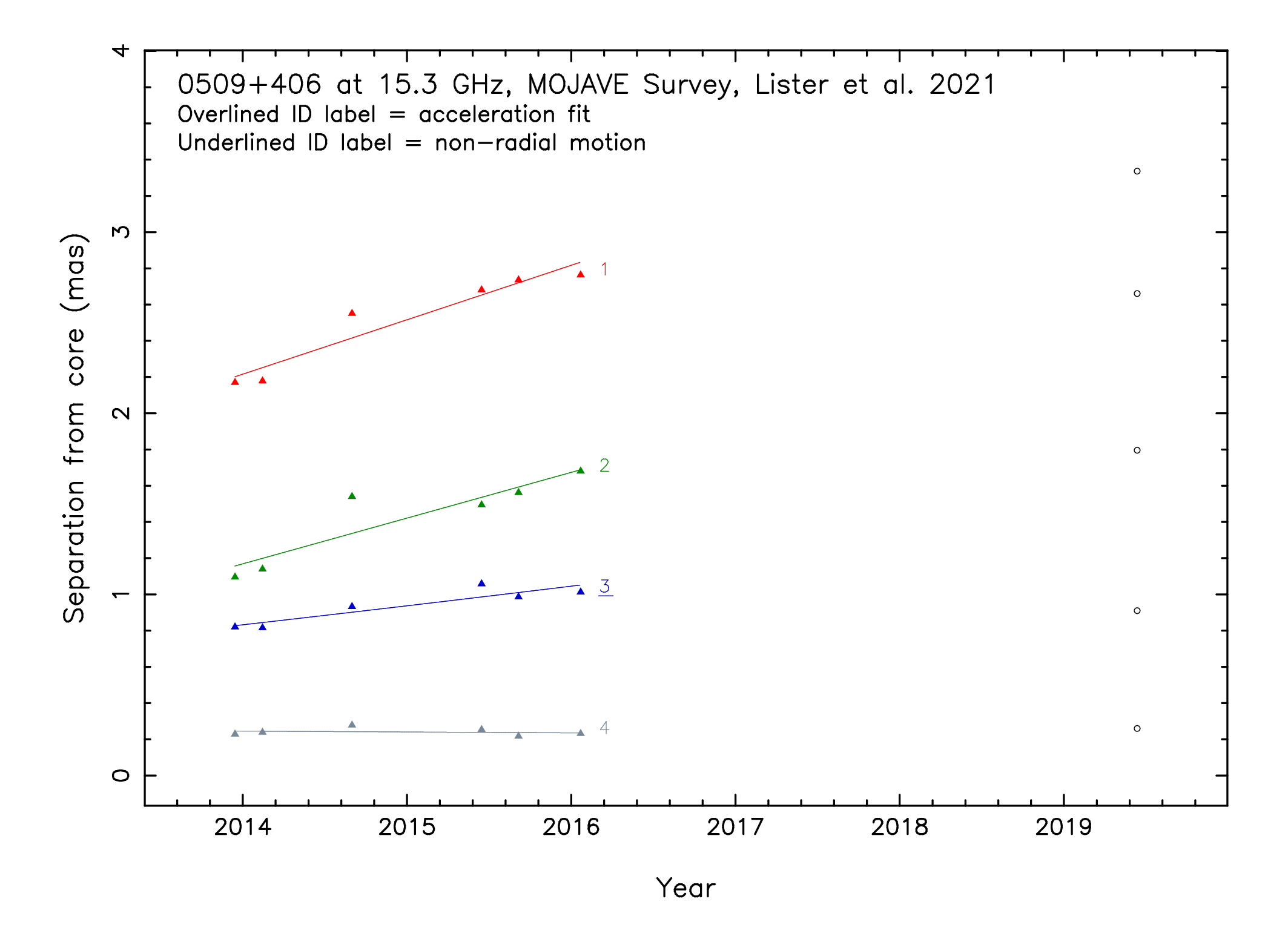

| Separation Versus Time Plot: | PNG PDF | ||

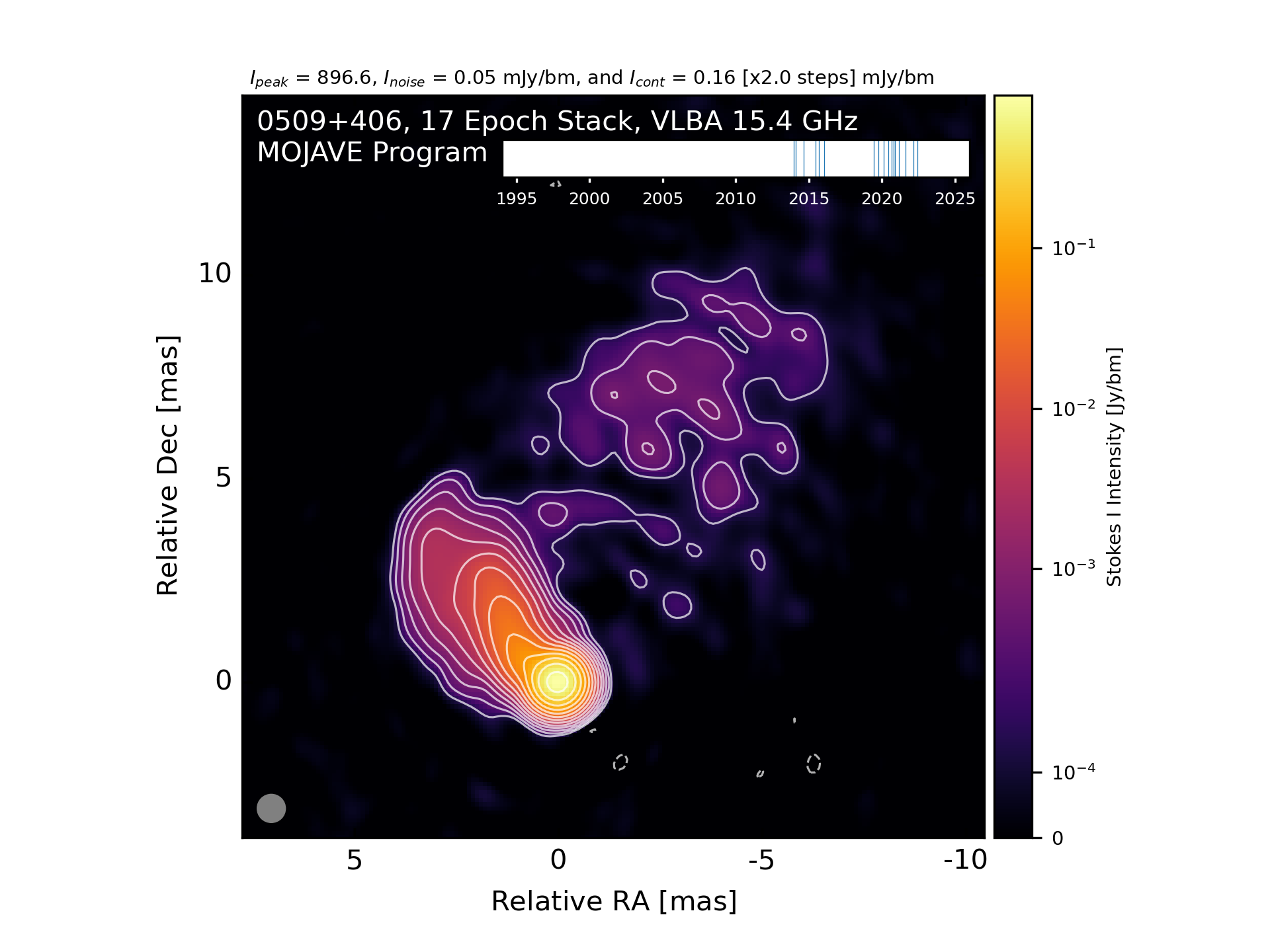

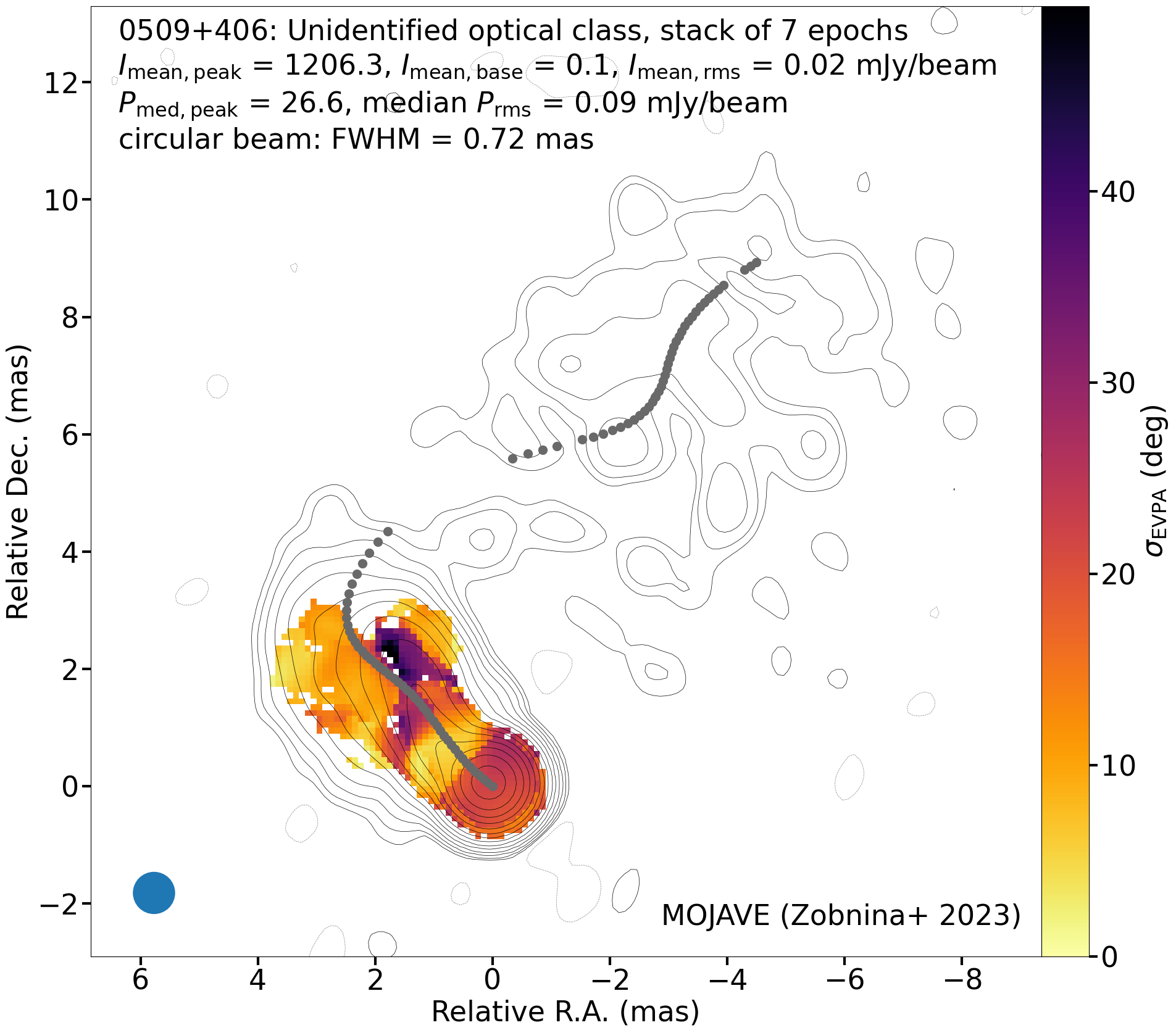

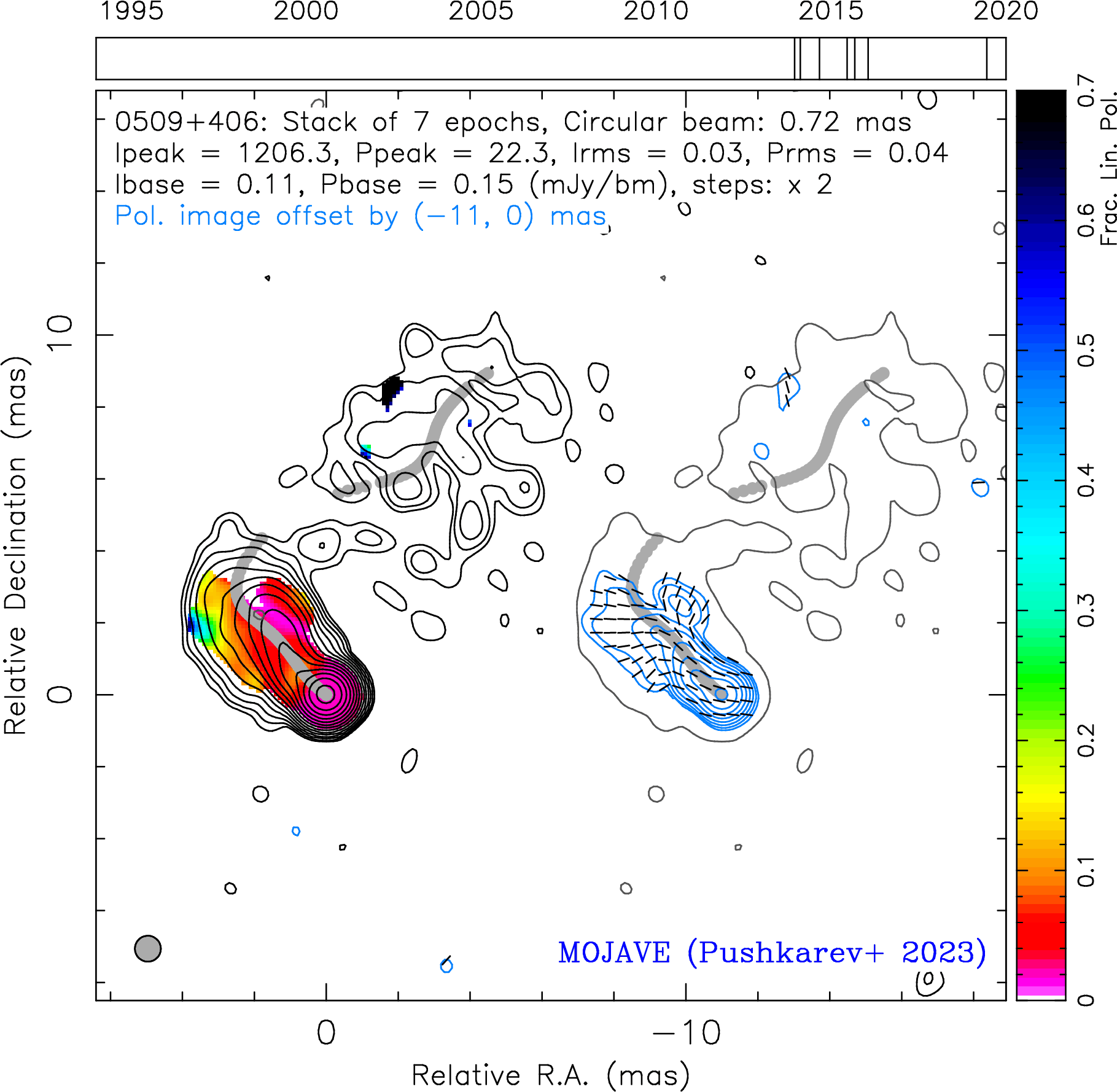

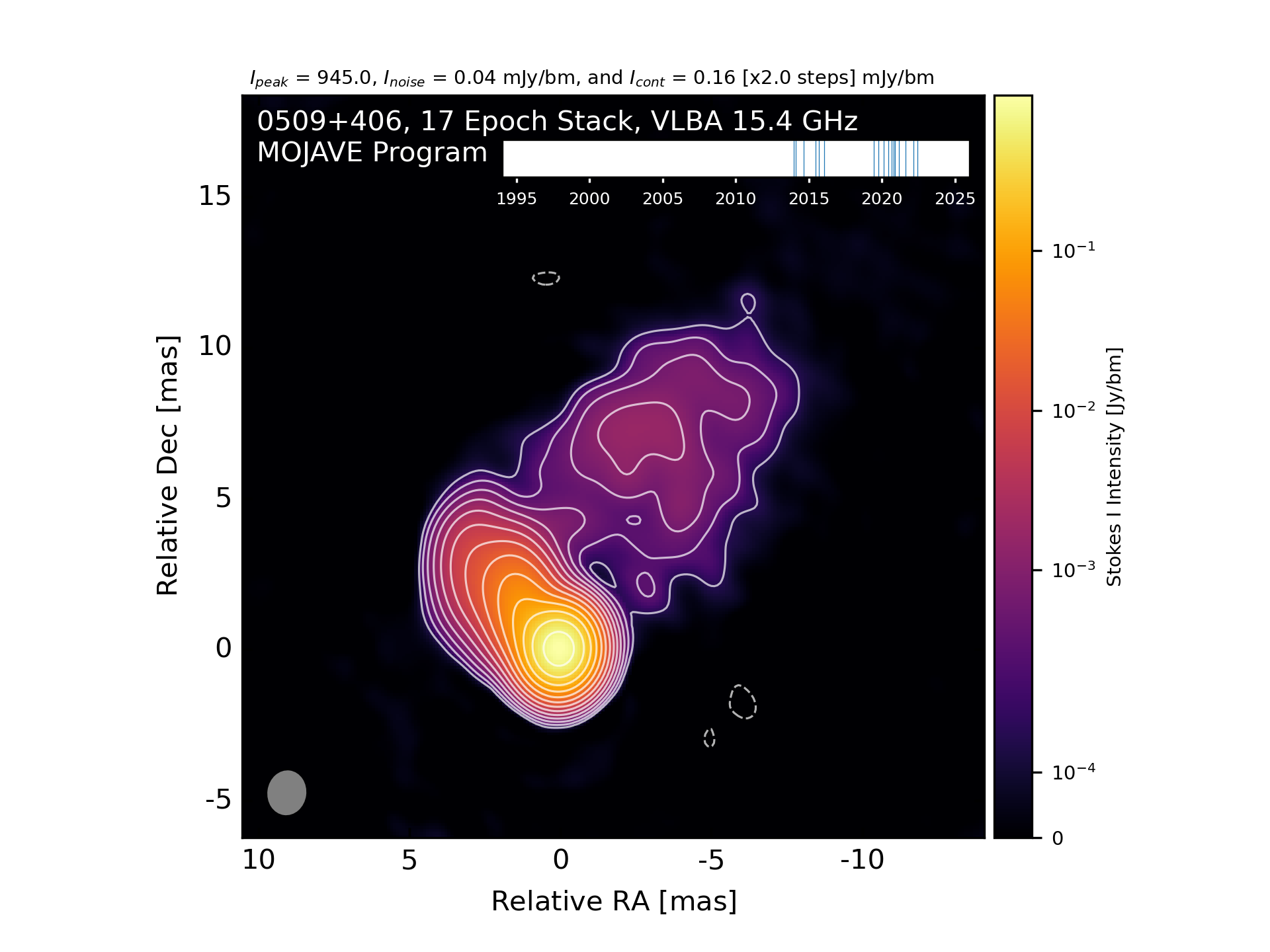

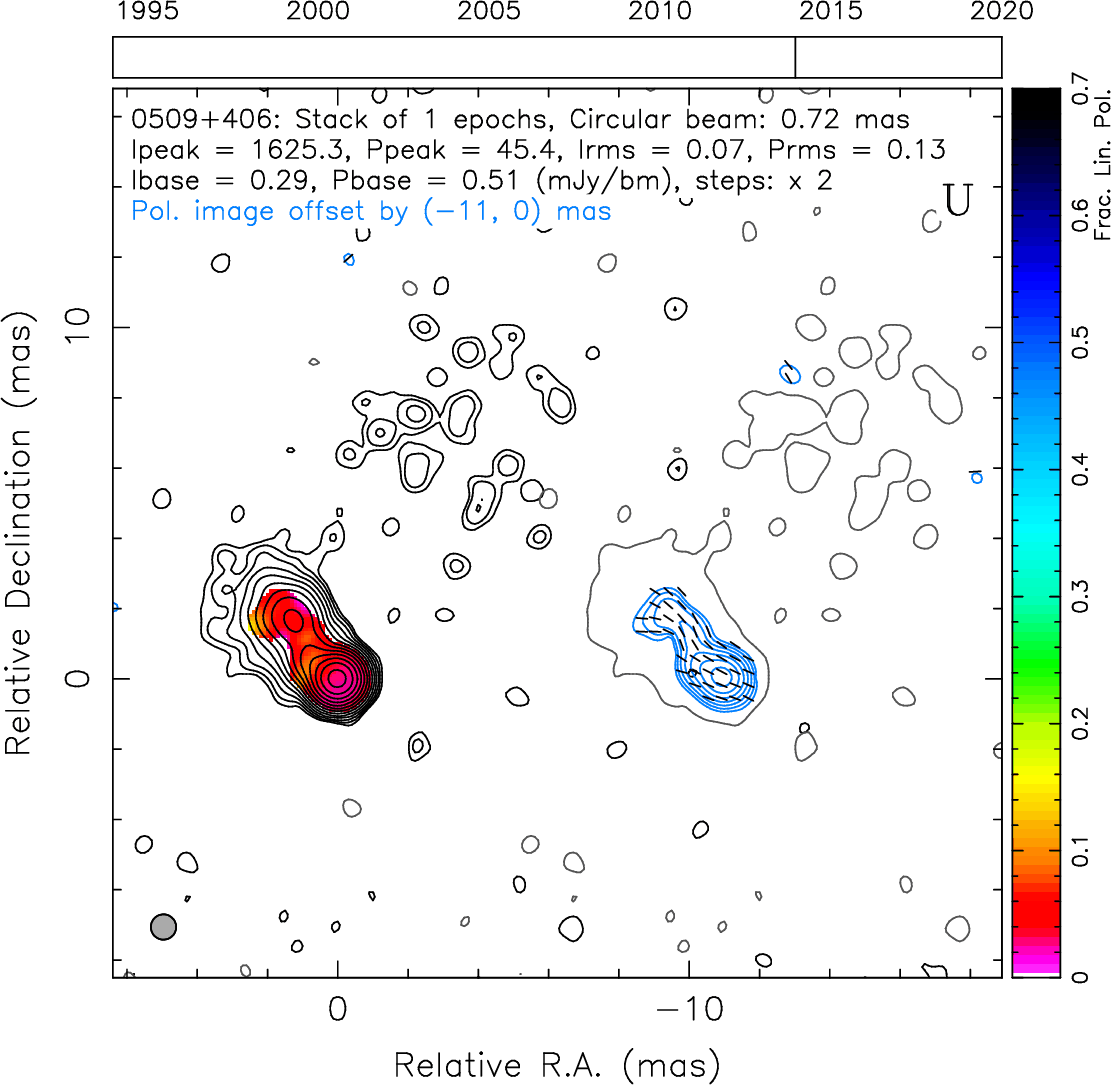

| Stacked 15 GHz Stokes I VLBA images: Natural weight: PNG PDF FITS Circular Beam: PNG PDF FITS Tapered Beam: PNG PDF FITS Stacked 15 GHz Polarization VLBA images: Method I: Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS Method II: std EVPA PNG, FITS Rotation Measure 8-15 GHz Map: | Not available | Spectral Index 8-15 GHz Map: | Not available | |
VLBA 23 GHz: |
Kpc-scale: | |
|
|
||

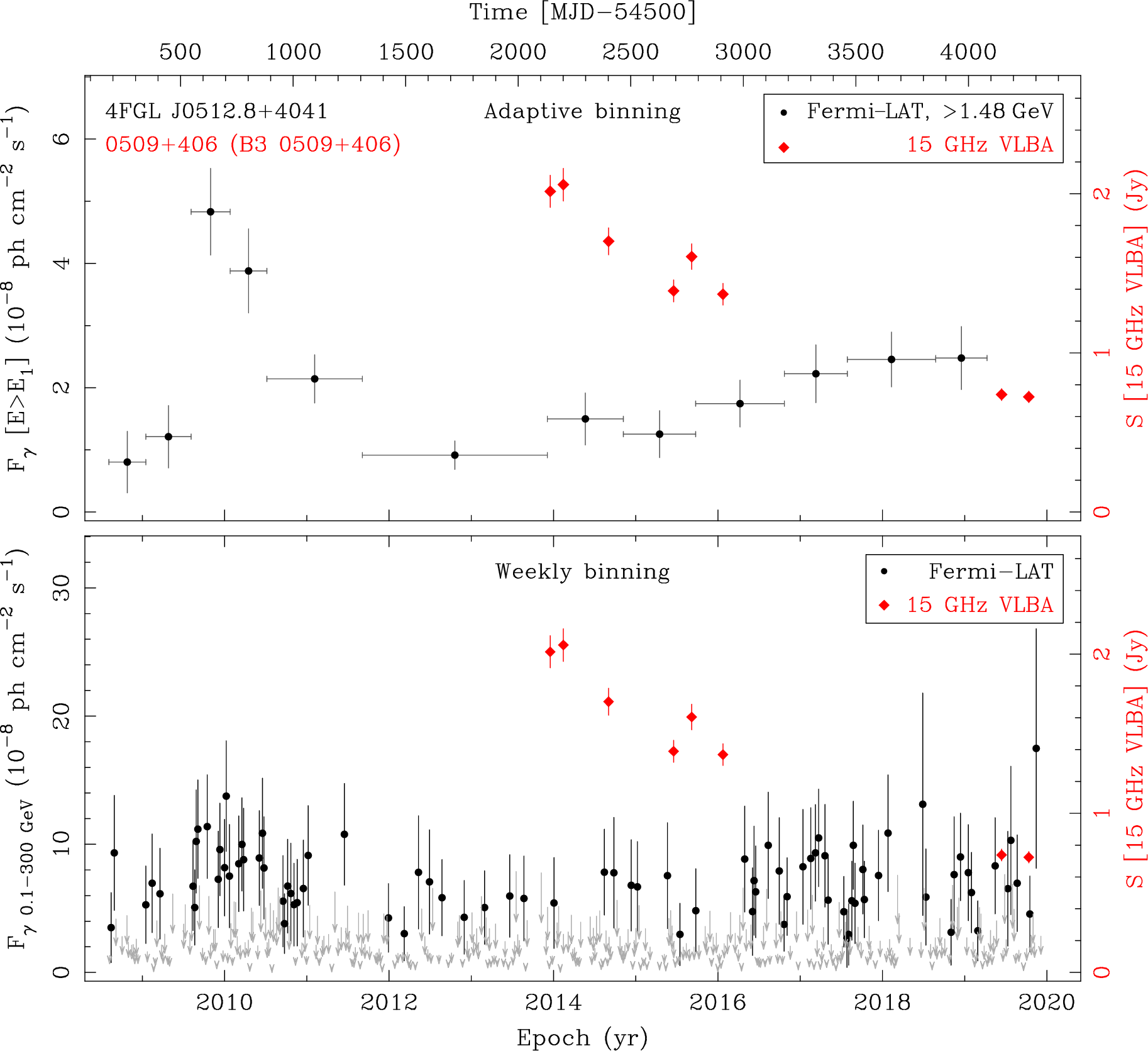

Fermi LAT and 15 GHz VLBA Light Curves |
VLBA 43 GHz: |

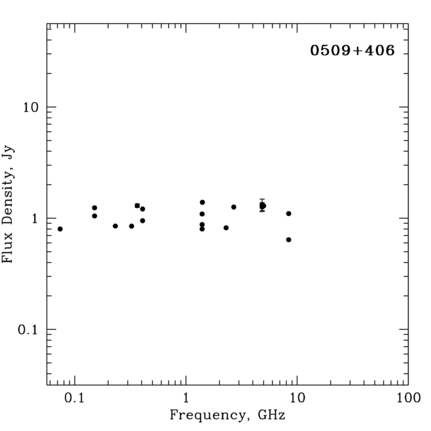

Multiepoch Radio Spectrum: |
|
|---|---|---|---|
|
 |
||
| Comments: | Hard spectrum MOJAVE_4; has optical counterpart in DSS, WISE, 2MASS | ||
If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
