Common Name: |
S3 0745+24 |

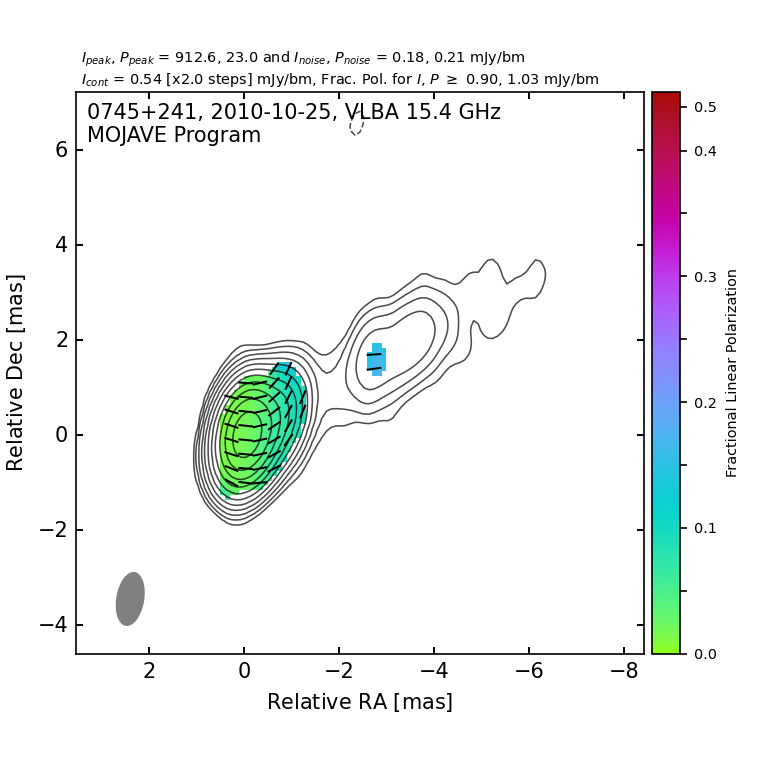

MOJAVE 15 GHz [Total intensity movie]   | [Polariz. movie] |
VLBA 1.4 GHz: BG246
|
B1950
Name: |
0745+241 |
 |
 |
J2000
Name: |
J0748+2400 |
R.A. and Dec. (J2000): |
7h48m36.109s +24d0'24.110" |
AGN
Class: |
LSP HPQ |
Redshift: |
0.409 (2010AJ....139.2360S) |
Luminosity Distance: |
2219 Mpc ; 5.42 pc/mas |
Radio
Spectrum: |
Flat |
Gamma-ray Association |
LAT: Y, EGRET: N, TeV: N |
Kpc-scale
morphology: |
Two-sided Halo |
Jet Speed: |
Maximum: 253 ± 28 μas/y ; 6.30 ± 0.70 c Median: N/A ; based on 7 moving features Lister et al. 2019, ApJ,874,43 |

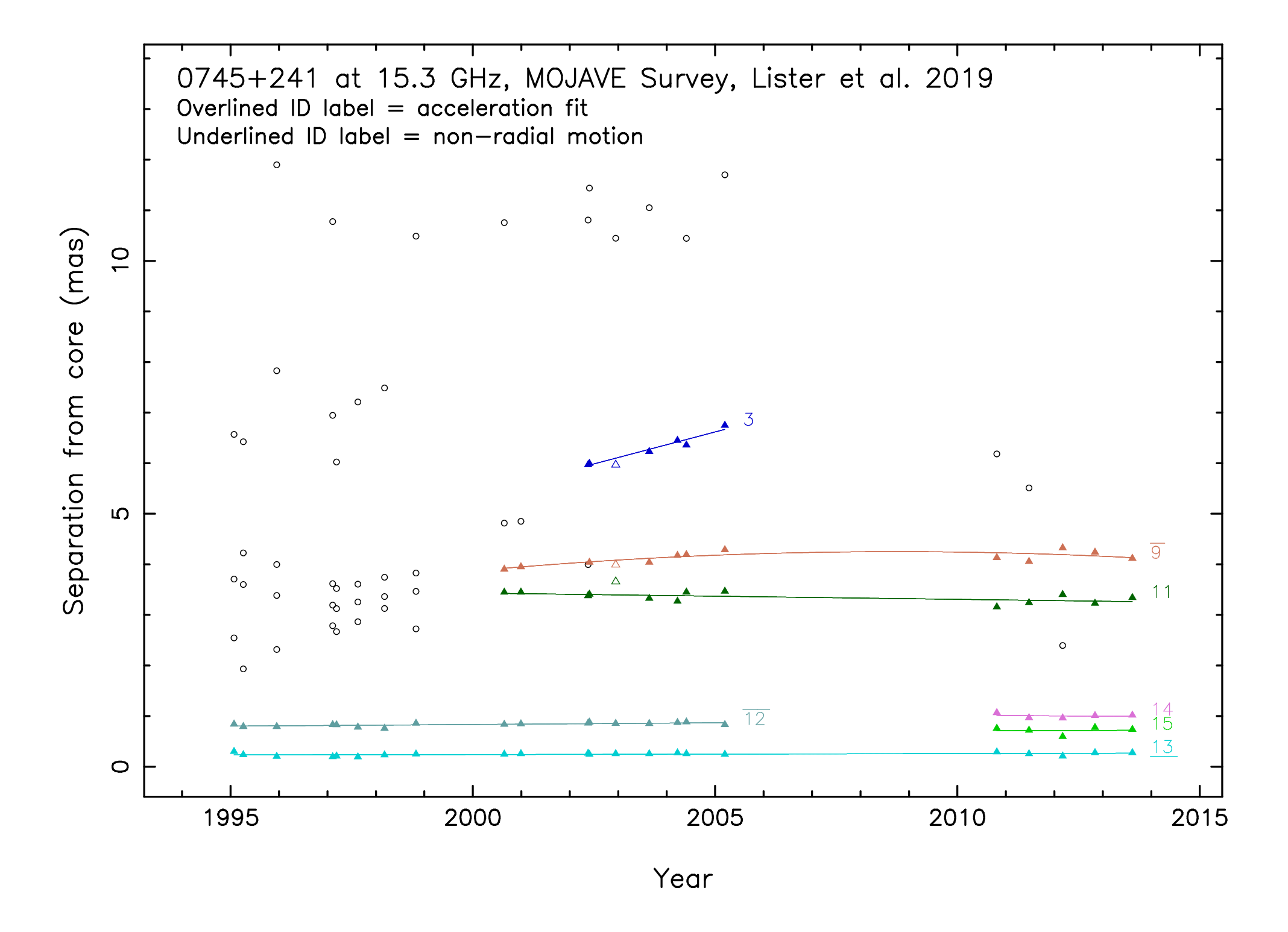

Separation Versus Time Plot: |
PNG PDF |

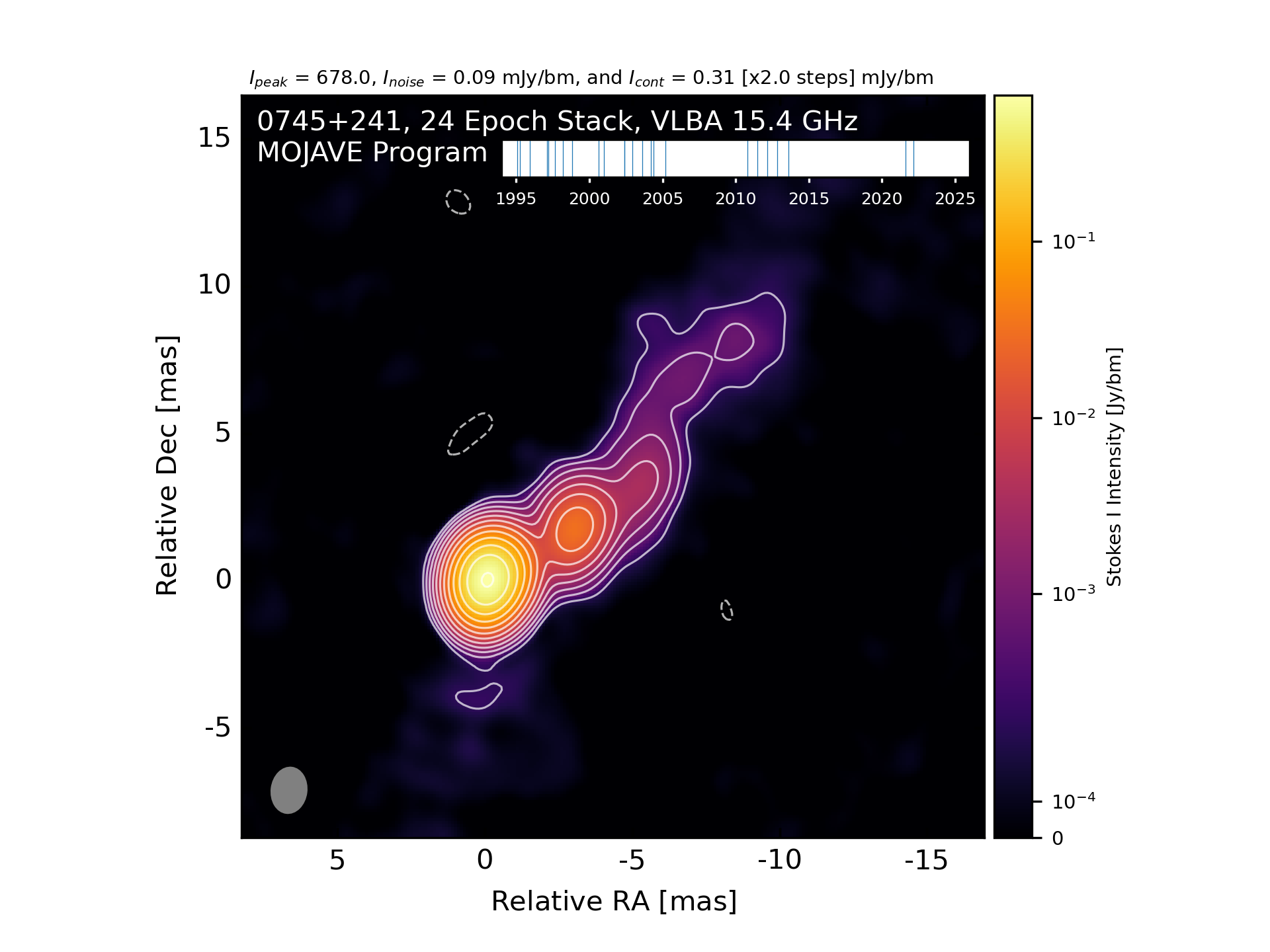

Stacked 15 GHz Stokes I VLBA images:
Uniform weight:   PNG PDF
Natural weight:   PNG PDF

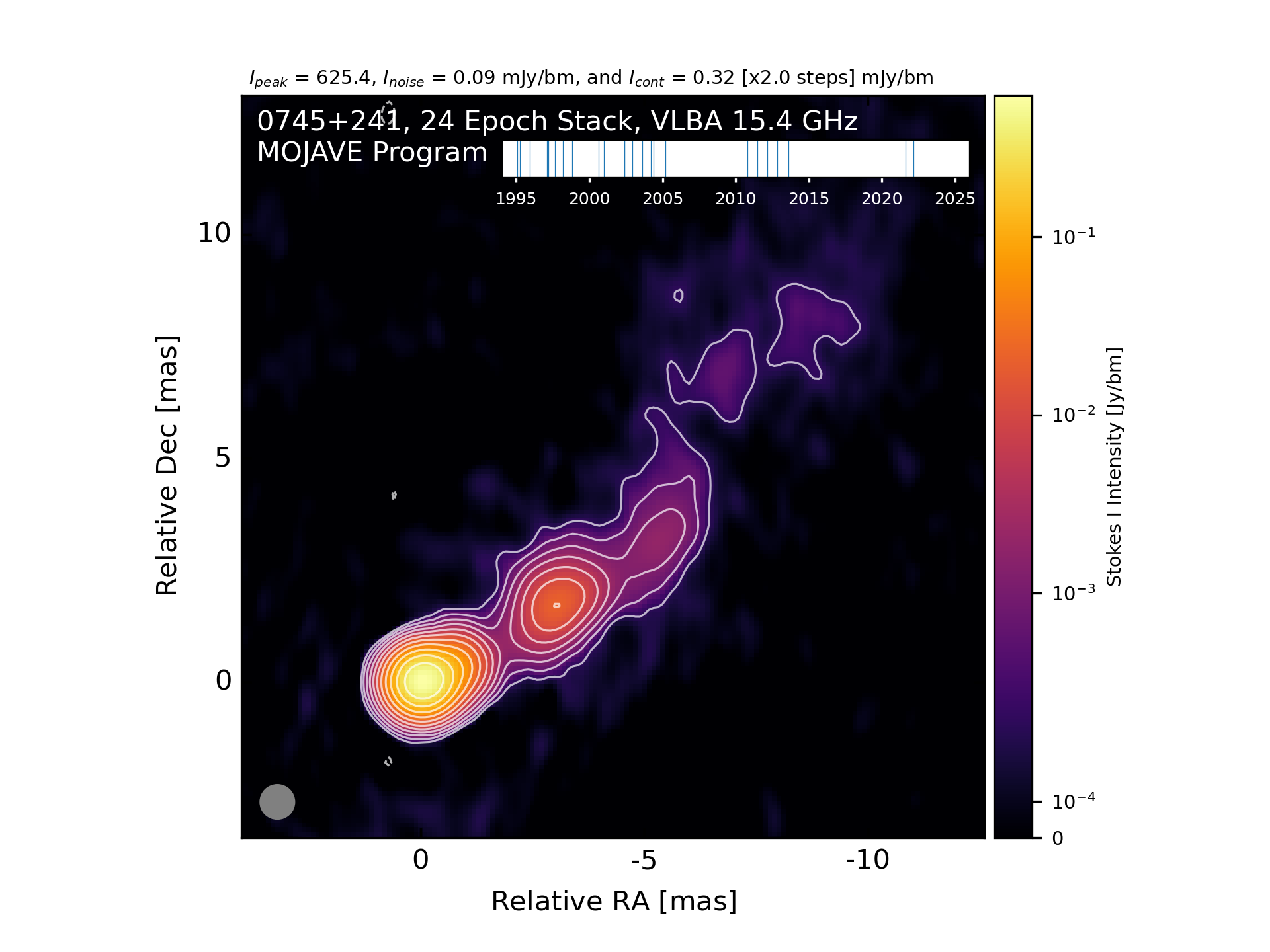

Circular Beam:   PNG PDF
Tapered Beam:   PNG PDF
Stacking for 1994-2015:   FITS

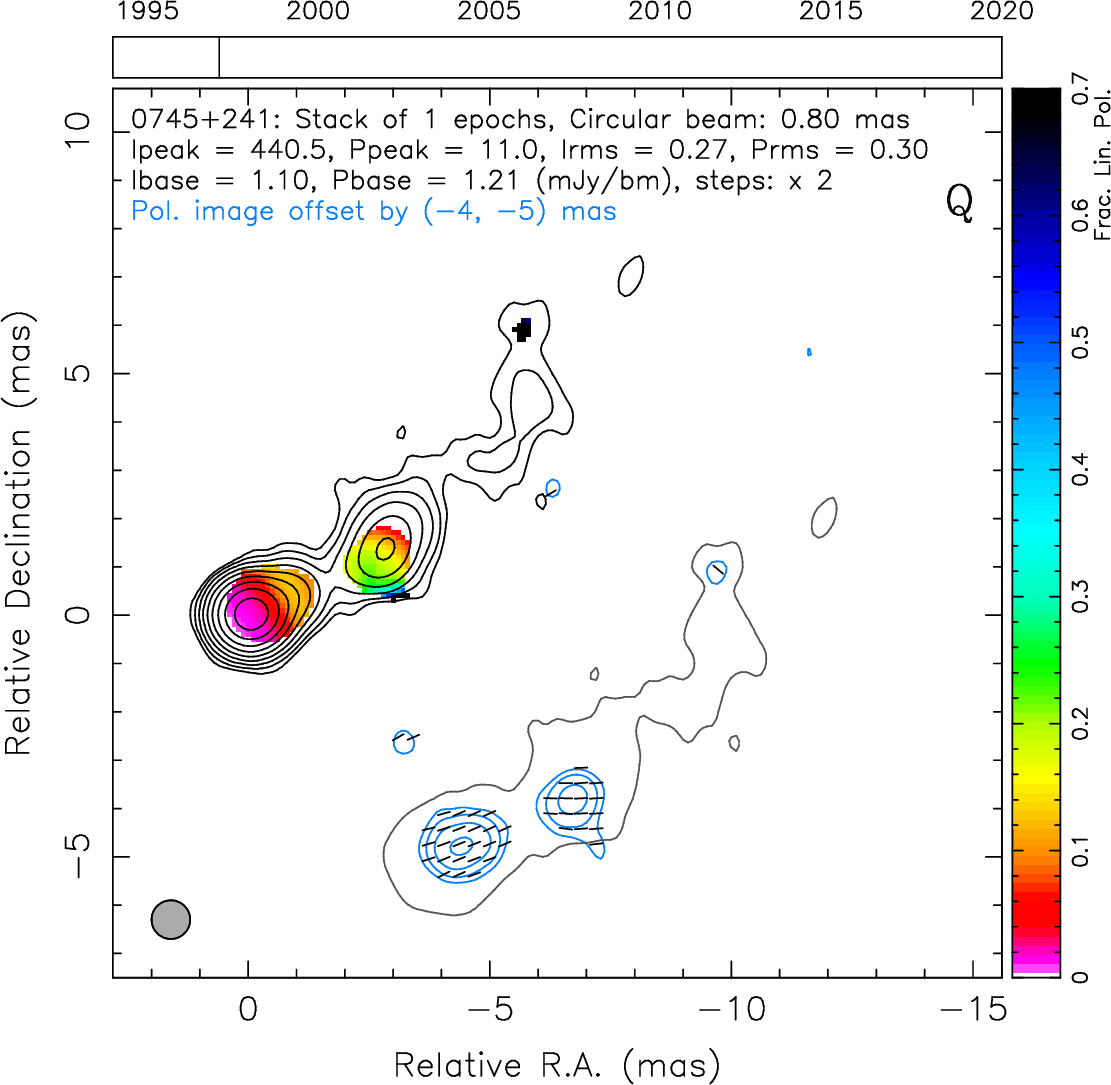

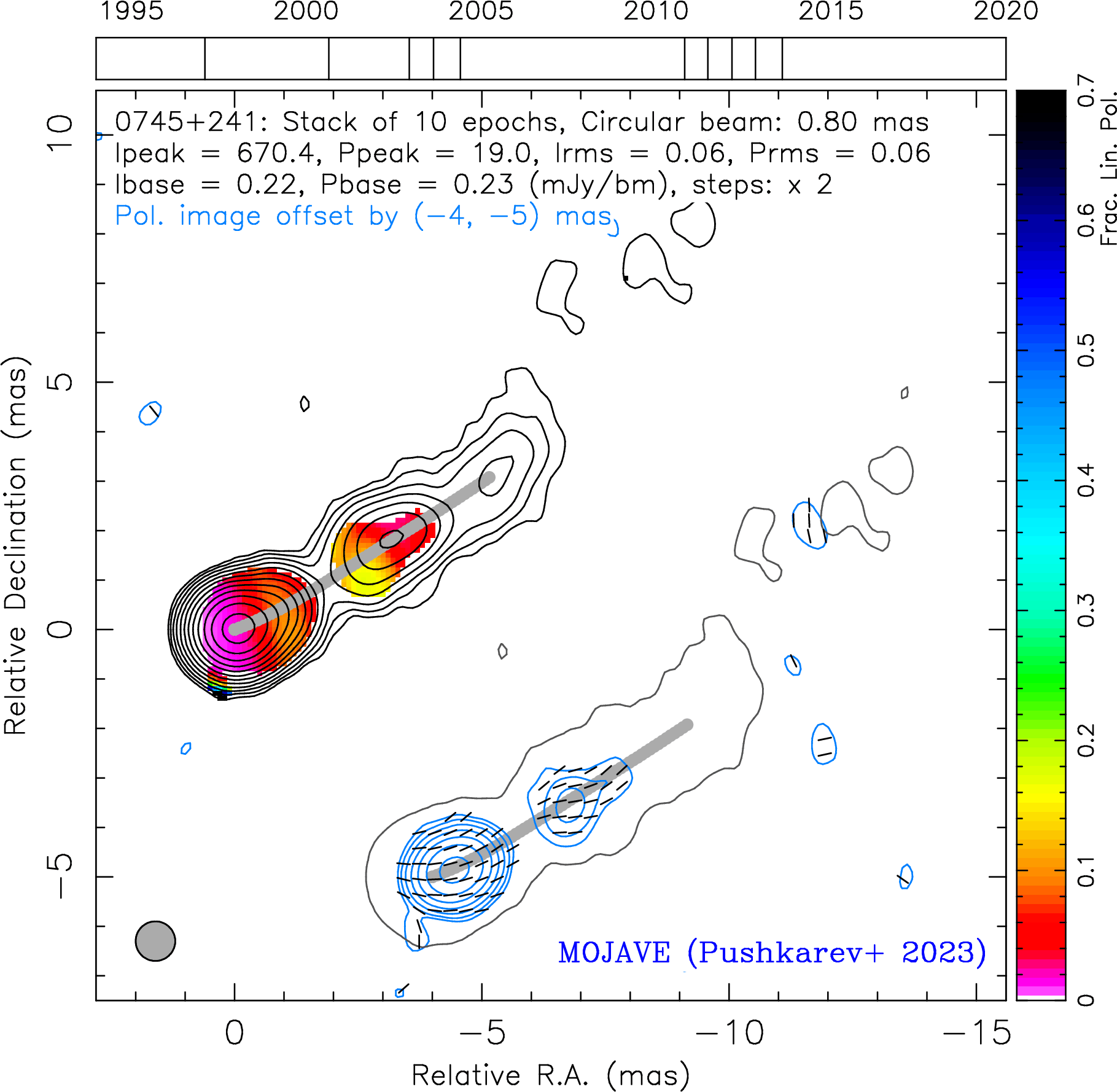

Stacked 15 GHz Polarization VLBA images:
Method I:   Cumulative GIF, I FITS, P FITS, m FITS, EVPA FITS

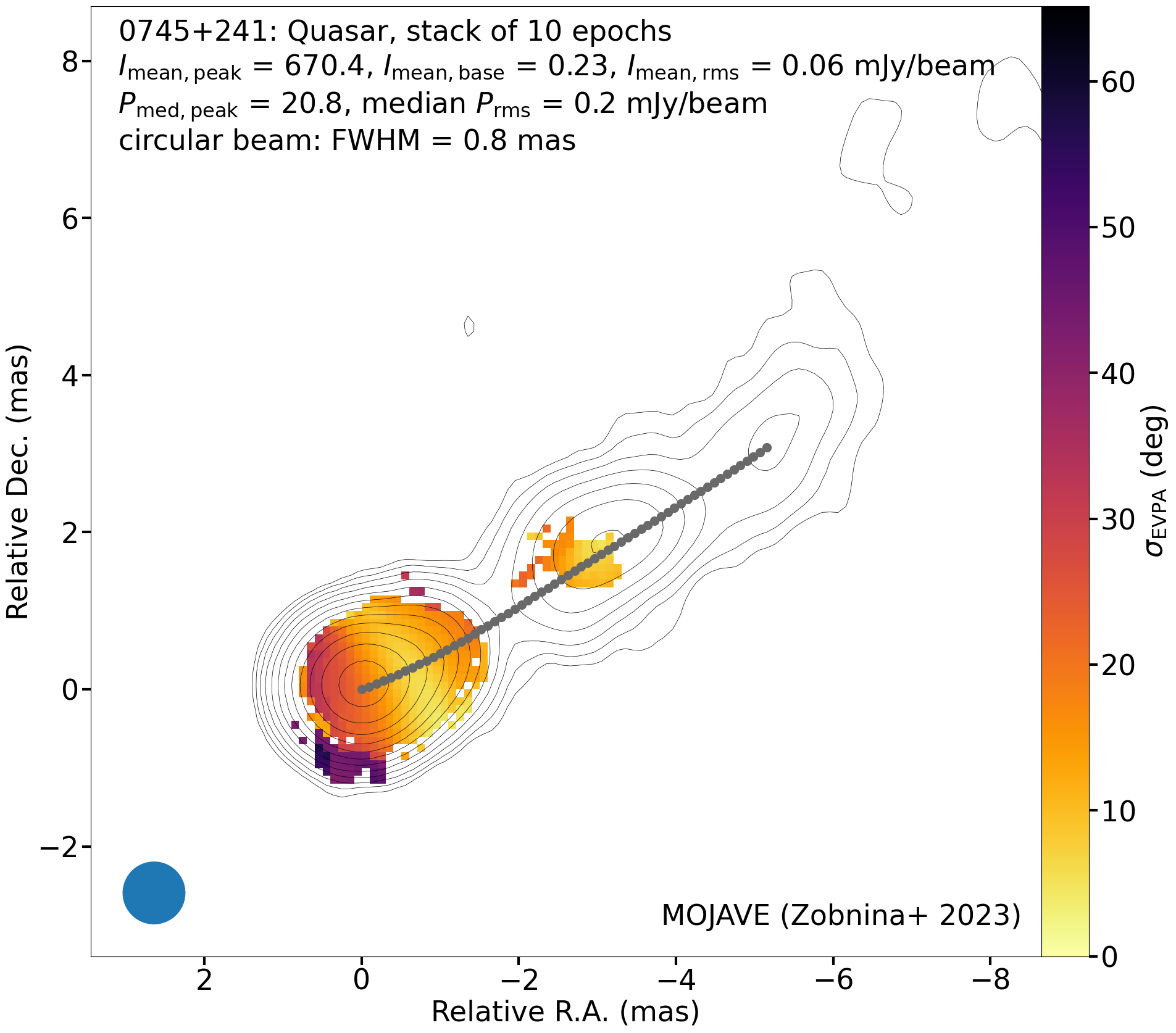

Method II:   std EVPA FITS
Rotation Measure 8-15 GHz Map: | Not available |
Spectral Index 8-15 GHz Map: | Not available |
|

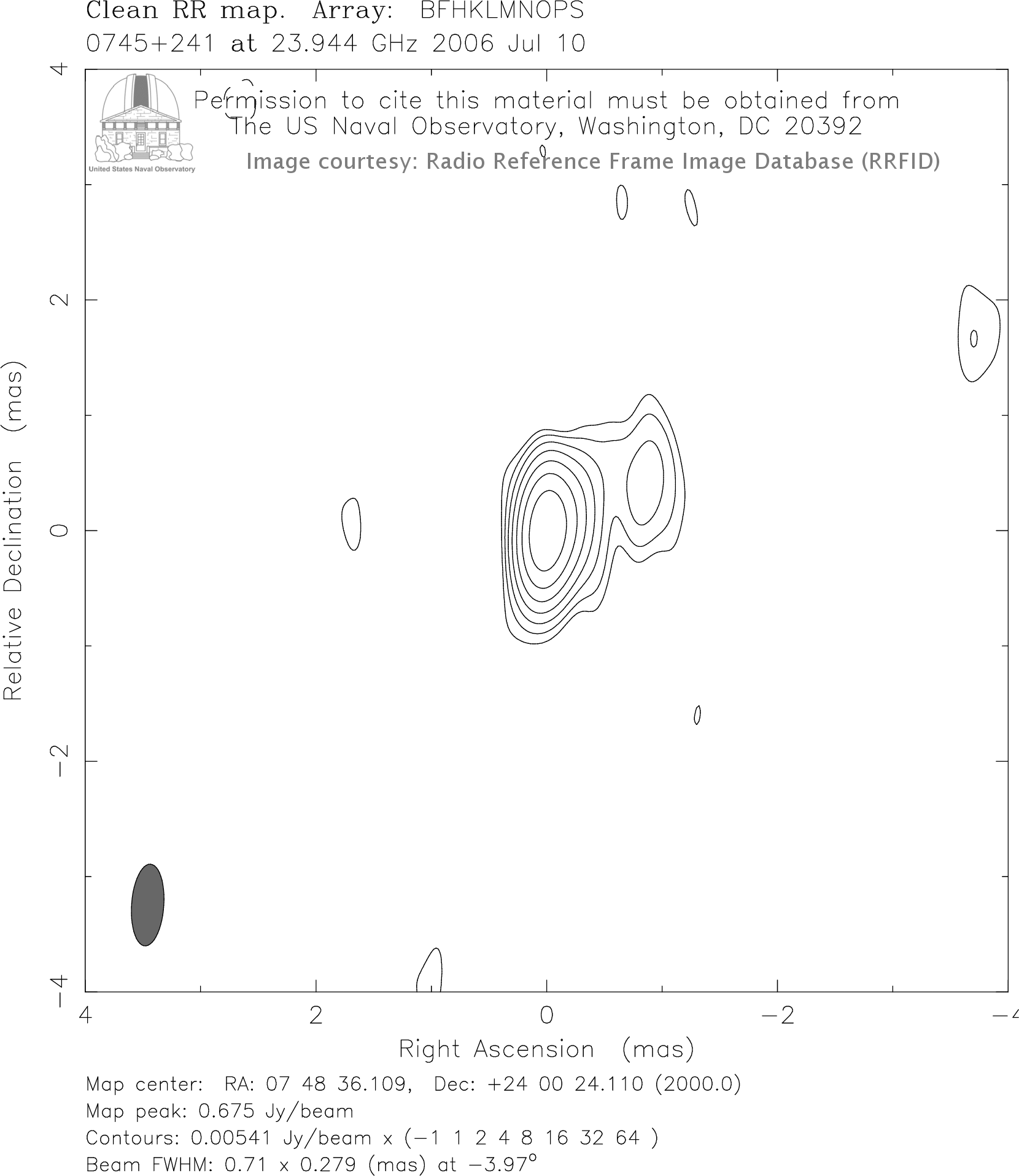

VLBA 23 GHz: RRIFD Database
|

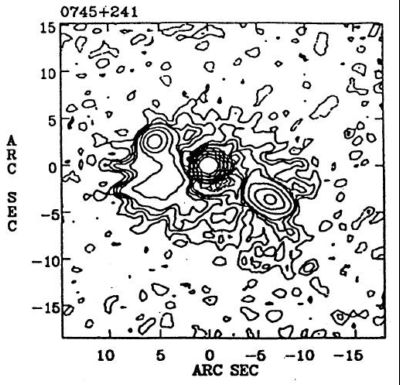

Kpc-scale: Murphy, Browne and Perley 1993, MNRAS, 264, 298 |

|

|
|

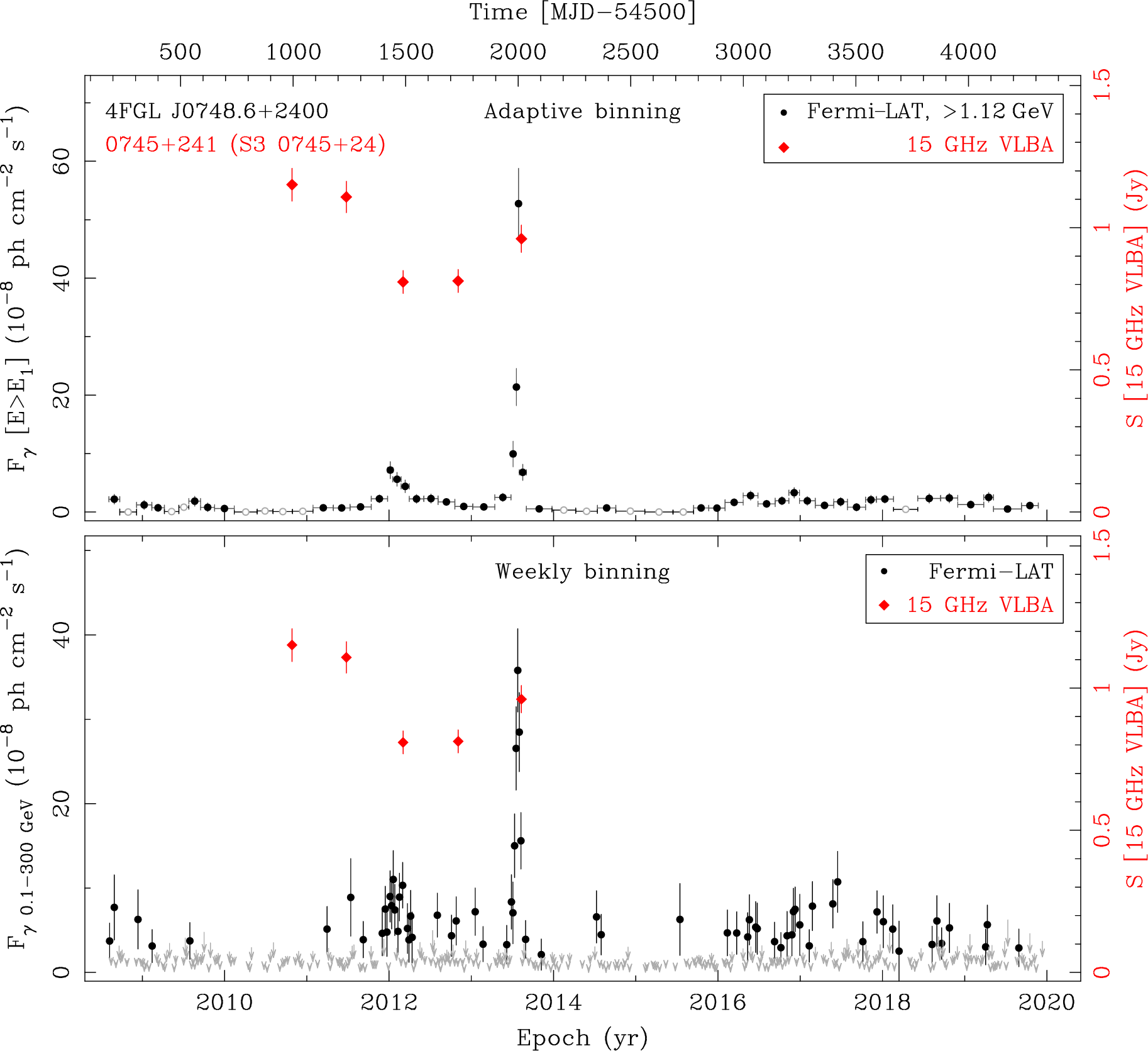

Fermi LAT and 15 GHz VLBA Light Curves
 |

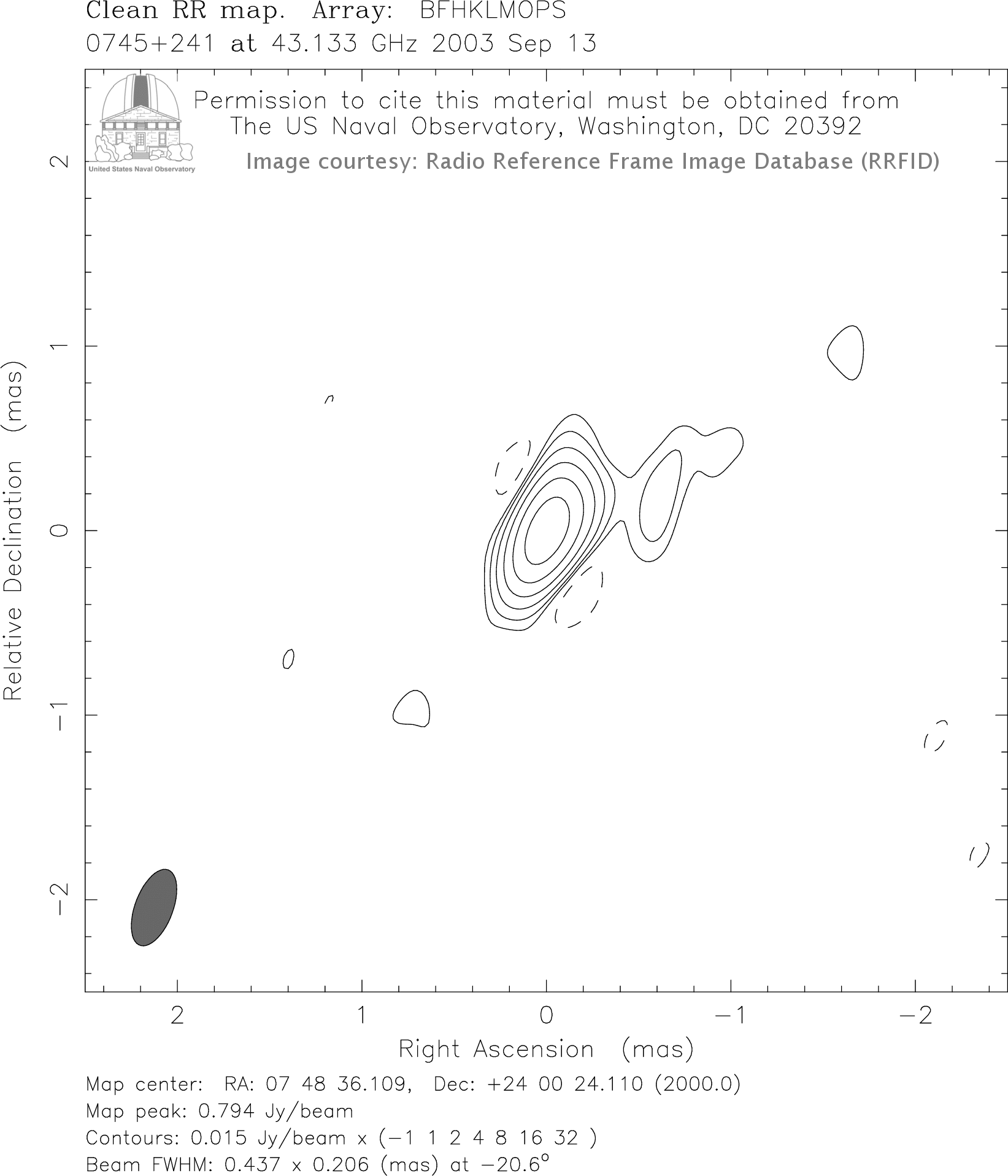

VLBA 43 GHz:
|

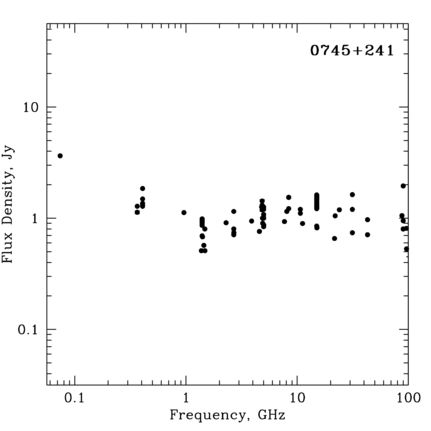

Multiepoch Radio Spectrum:
|

|

|
Comments: |
New 1.5 Jy; VCV = HPQ, Kuhr and Schmidt classify as BL
|
