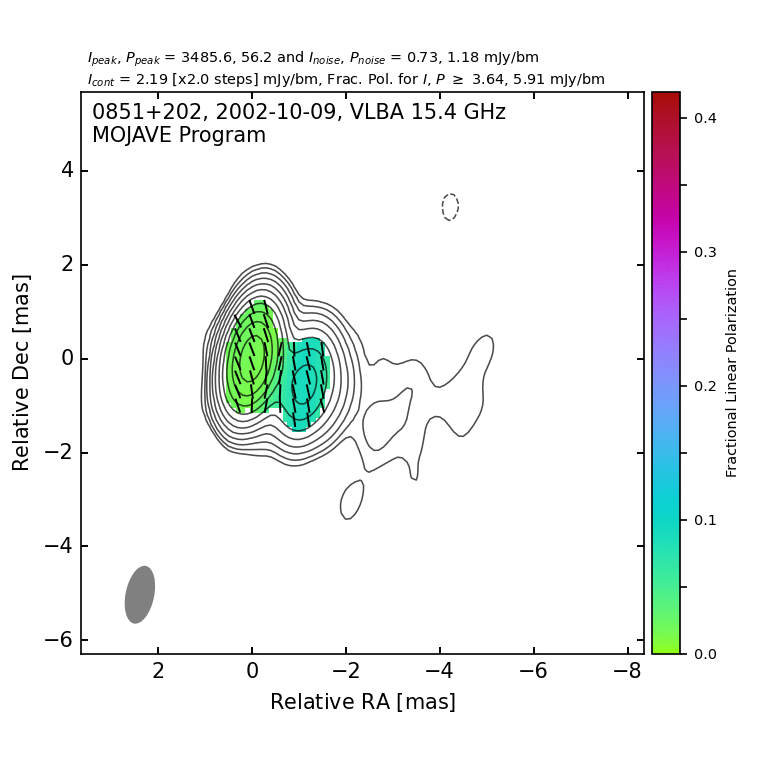

| Common Name: | OJ 287 | MOJAVE 15 GHz [Total intensity movie] | [Polariz. movie] | VLBA 1.4 GHz: University College Cork Program |
||||||||||||||||||
| B1950 Name: | 0851+202 |  |
 |
||||||||||||||||||
| J2000 Name: | J0854+2006 | ||||||||||||||||||||
| R.A. and Dec. (J2000): | 8h54m48.875s +20d6'30.641" |
||||||||||||||||||||
| AGN Class: | LSP BL Lac | ||||||||||||||||||||
| Redshift: | 0.306 (1989A&AS...80..103S) | Luminosity Distance: | 1577 Mpc ; 4.48 pc/mas | ||||||||||||||||||
| Radio Spectrum: | Flat | ||||||||||||||||||||
| Gamma-ray Association | LAT: Y, EGRET: Y, TeV: Y | ||||||||||||||||||||
| Kpc-scale morphology: | One-sided | ||||||||||||||||||||
| Jet Speed: | Maximum: 793 ± 22 μas/y ; 15.14 ± 0.43 c Median: 240 ± 20 μas/y ; 4.59 ± 0.38 c based on 18 moving features Lister et al. 2021, ApJ,923,30 |
||||||||||||||||||||
| Separation Versus Time Plot: | PNG PDF | ||||||||||||||||||||

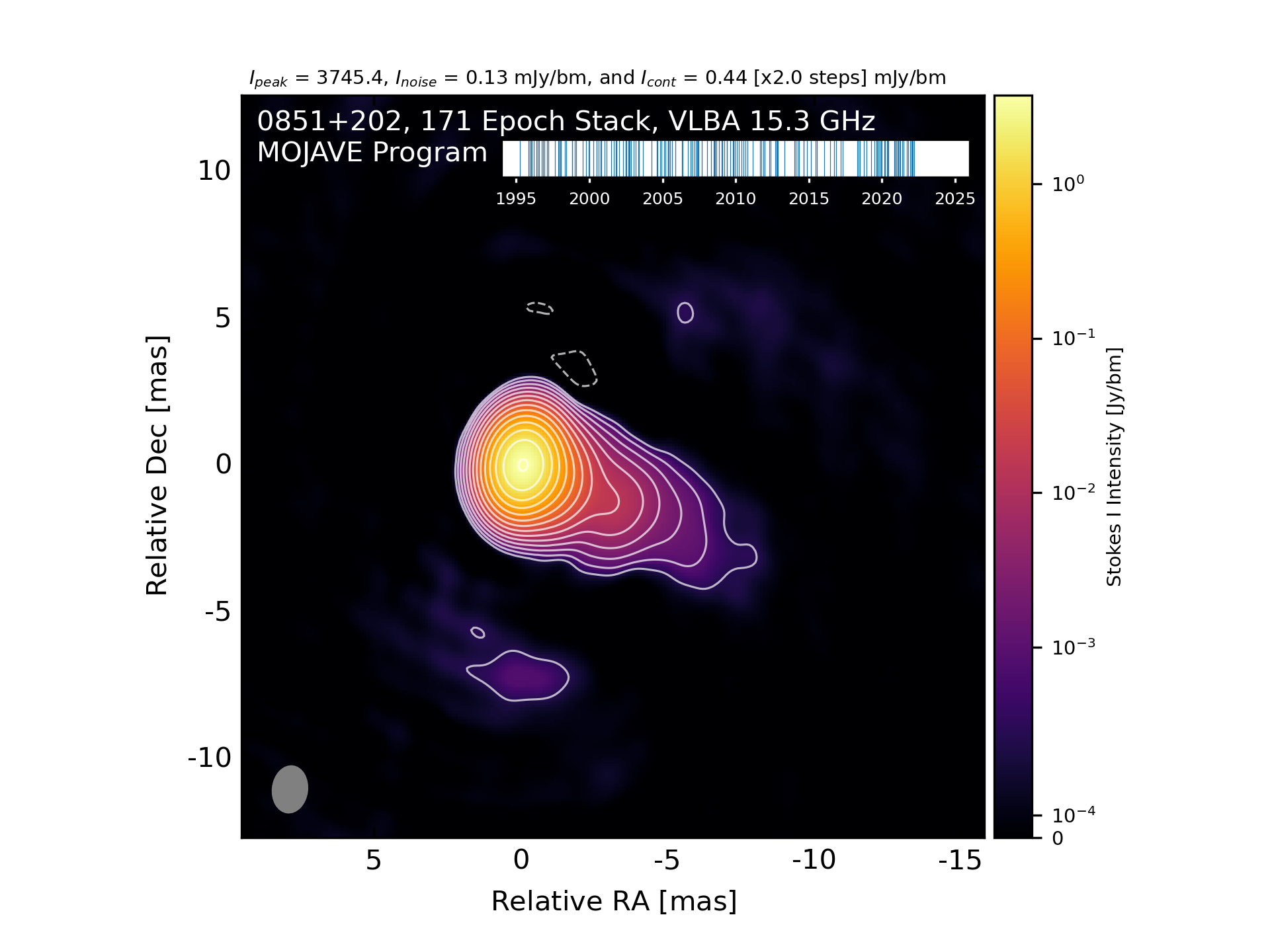

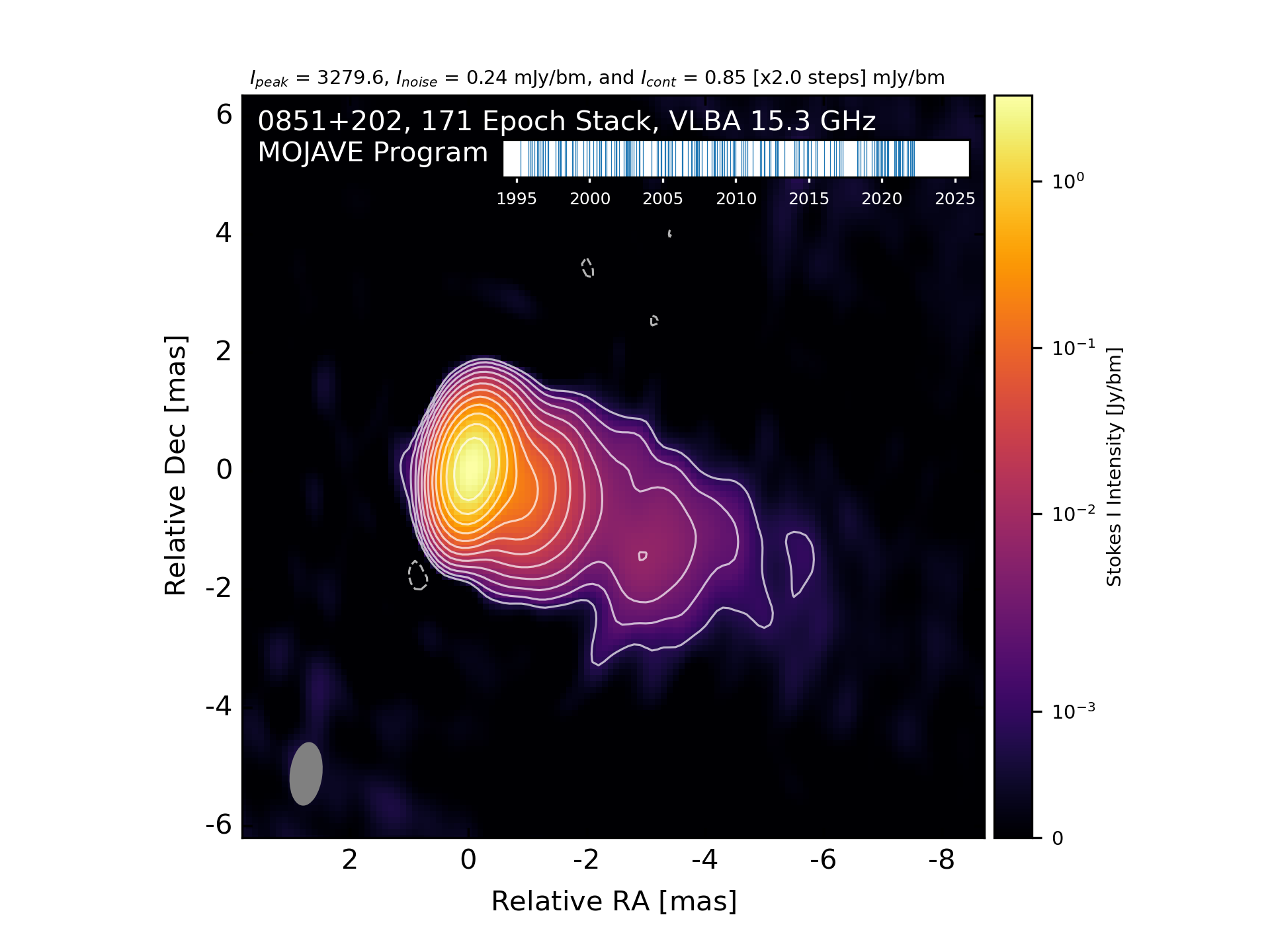

| Stacked 15 GHz Stokes I VLBA images: Natural weight: PNG PDF FITS Circular Beam: PNG PDF FITS Tapered Beam: PNG PDF FITS Stacking for 1994-2015: FITS Stacked 15 GHz Polarization VLBA images: Method I: Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS Method II: std EVPA PNG, FITS Rotation Measure 8-15 GHz Map: | 2006_04_28 | Spectral Index 8-15 GHz Map: | 2006_04_28 | Multifrequency MOJAVE VLBA Data:

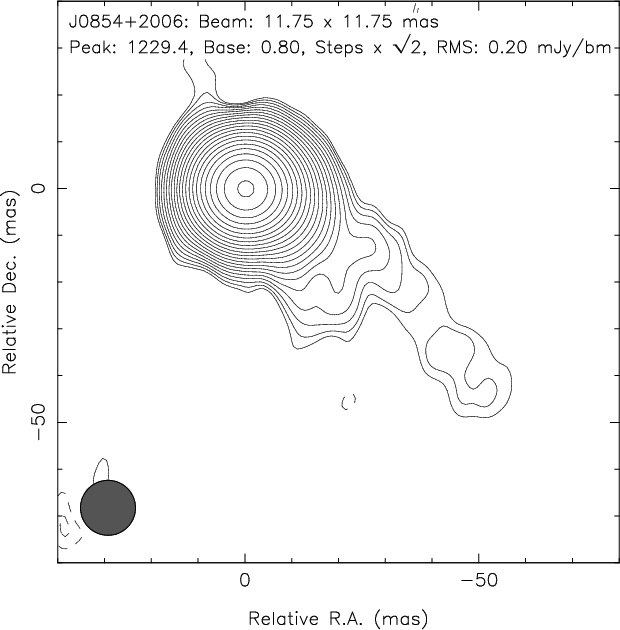

Univ. College Cork VLBA L Band Data:
|

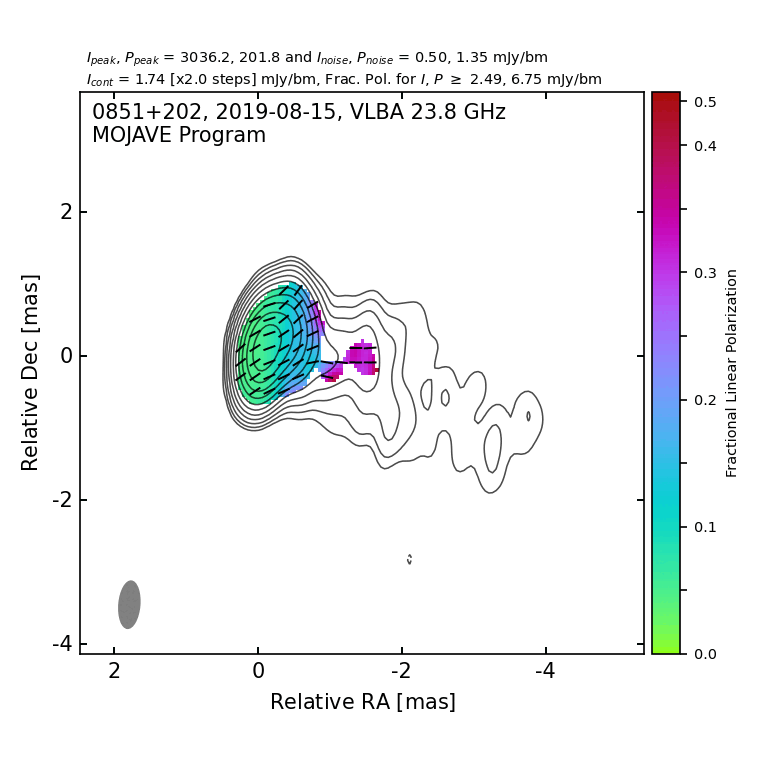

VLBA 23 GHz: MOJAVE Program |

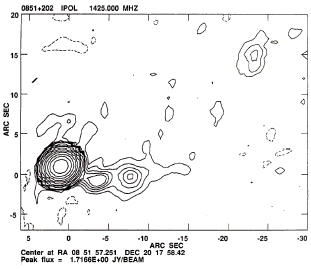

Kpc-scale: Perlman and Stocke 1994, AJ 108,56 | |||||||||||||||||||
 |
 |
||||||||||||||||||||

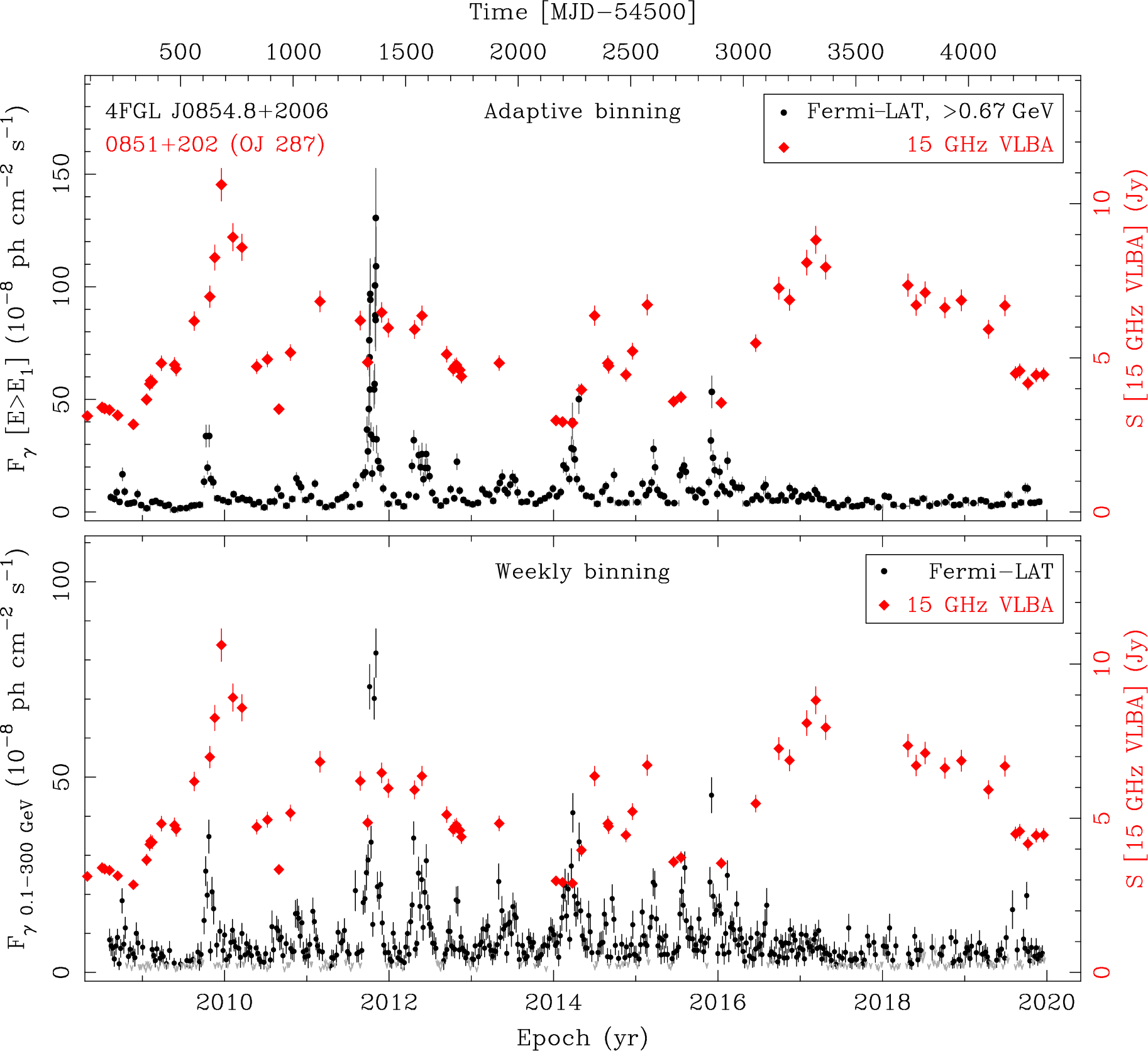

Fermi LAT and 15 GHz VLBA Light Curves |
VLBA 43 GHz: MOJAVE Program |

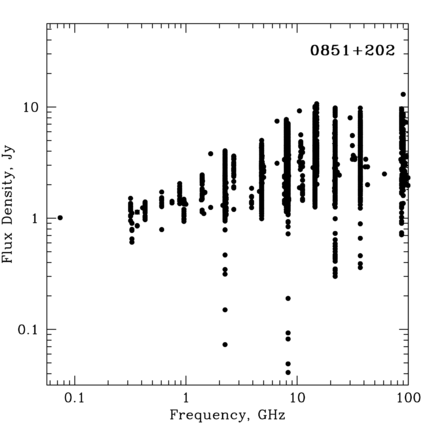

Multiepoch Radio Spectrum: |
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
||||||||||||||||||||
| Comments: | possible intermediate BL/Q object (Veron-Cetty and Veron 2000); VLA image also by KWR92 | ||||||||||||||||||||
If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
| Epoch (YYYY-MM-DD) | VLBA Code | VLBA I (mJy) |
VLBA P (mJy) |
VLBA P (%) |
VLBA EVPA (deg.) |
I Image (Nat. Weight) | Visibility Data |
Stokes I Radplot | Polarization Image |
Full Montage |
queued | BL286BD | 2023-12-15 * | BL286BB | 5600 | 91 | 1.6 | 154 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-11-14 * | BL286BA | 6184 | 75 | 1.2 | 121 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-09-24 * | BL286AZ | 6333 | 237 | 3.7 | 3 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-08-18 * | BL286AY | 5094 | 122 | 2.4 | 163 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-07-01 * | BL286AX | 4926 | 290 | 5.9 | 128 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-05-03 * | BL286AT | 5090 | 263 | 5.2 | 127 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-03-26 * | BL286AS | 4596 | 178 | 3.9 | 130 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-02-04 * | BL286AR | 3512 | 113 | 3.2 | 118 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-12-31 * | BL286AQ | 4802 | 192 | 4.0 | 119 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-09-29 | BL286AO | 6232 | 267 | 4.3 | 124 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-07-10 | BL286AM | 5769 | 154 | 2.7 | 167 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-06-11 | BL286AL | 6791 | 252 | 3.7 | 118 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-05-21 | BL286AK | 7117 | 449 | 6.3 | 102 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-04-08 | BL286AJ | 8048 | 435 | 5.4 | 110 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-03-18 | BL286AI | 8391 | 617 | 7.4 | 100 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-02-07 | BL286AG | 6855 | 210 | 3.1 | 126 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-01-22 | BL286AF | 7436 | 158 | 2.1 | 105 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-01-03 | BL286AE | 8526 | 196 | 2.3 | 116 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-12-10 | BL286AD | 7924 | 77 | 1.0 | 107 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-10-23 | BL286AC | 8238 | 35 | 0.4 | 114 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-09-13 | BL286AB | 5969 | 102 | 1.7 | 11 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-06-25 | BL273AW | 5184 | 290 | 5.6 | 121 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-05-16 | BL273AV | 5619 | 314 | 5.6 | 128 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-04-09 | BL273AU | 5421 | 237 | 4.4 | 148 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-03-21 | BL273AT | 6421 | 189 | 2.9 | 156 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-02-21 | BL273AS | 7236 | 228 | 3.1 | 150 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2021-02-05 | BL273AR | 6935 | 334 | 4.8 | 139 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-12-27 | BL273AQ | 7492 | 343 | 4.6 | 121 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-11-29 | BL273AP | 6125 | 252 | 4.1 | 113 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-11-02 | BL273AO | 7133 | 79 | 1.1 | 133 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-06-14 | BL273AK | 5771 | 139 | 2.4 | 108 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-05-29 | BL273AJ | 6818 | 53 | 0.8 | 54 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-05-22 | BL273AI | 6554 | 152 | 2.3 | 103 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-05-01 | BL273AH | 6526 | 312 | 4.8 | 101 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-03-26 | BL273AG | 7614 | 391 | 5.1 | 113 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-02-28 | BL273AF | 6963 | 300 | 4.3 | 108 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2020-01-04 | BL273AE | 5671 | 328 | 5.8 | 143 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-12-15 | BL273AD | 4959 | 304 | 6.1 | 145 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-11-14 | BL273AC | 4634 | 265 | 5.7 | 140 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-10-08 | BL273AB | 4598 | 347 | 7.5 | 140 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-09-03 | BK224A | 5233 | no data | From NRAO Archive | 2019-08-15 | BL273AA | 5379 | 396 | 7.4 | 117 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-06-29 | BL229AY | 6560 | 834 | 12.7 | 130 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-04-15 | BL229AV | 5854 | 676 | 11.6 | 130 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-12-16 | BL229AT | 6843 | 379 | 5.5 | 151 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-10-06 | BL229AR | 6637 | 544 | 8.2 | 142 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-07-08 | BL229AP | 7085 | 413 | 5.8 | 115 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-05-31 | BL229AO | 6673 | 284 | 4.2 | 130 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-04-22 | BL229AN | 7329 | 275 | 3.8 | 119 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2017-04-22 | BL229AG | 7921 | 266 | 3.4 | 102 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2017-03-11 | BL229AF | 8809 | 404 | 4.6 | 120 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2017-01-28 | BL229AE | 8111 | 296 | 3.6 | 159 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2016-11-12 | BL193BL | 6875 | 305 | 4.4 | 14 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2016-09-26 | BL229AA | 7233 | 196 | 2.7 | 51 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2016-06-16 | BL193BG | 5454 | 312 | 5.7 | 120 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2016-01-16 | BL193BA | 3700 | 114 | 3.1 | 118 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2015-07-20 | BL193AU | 3701 | 205 | 5.5 | 145 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2015-06-18 | S6407G | 3589 | 88 | 2.4 | 167 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2015-02-20 | S6407F | 6721 | 48 | 0.7 | 88 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-12-15 | S6407E | 5215 | 268 | 5.1 | 141 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-11-18 | BH196B | 4414 | 321 | 7.3 | 143 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-09-01 | BL193AN | 4744 | 325 | 6.9 | 153 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-08-28 | S6407D | 4773 | 119 | 2.5 | 143 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-05-04 | S6407B | 3993 | 41 | 1.0 | 157 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-03-26 | BH186D | 2876 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2014-02-08 | S6407A | 2879 | 37 | 1.3 | 103 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-01-11 | BL193AD | 2958 | 62 | 2.1 | 149 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2013-05-05 | BL178BC | 4831 | 103 | 2.1 | 128 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-11-16 | BR175E | 4401 | 357 | 8.1 | 127 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-11-11 | BL178AS | 4592 | 385 | 8.4 | 129 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-10-26 | BR175C | 4785 | 385 | 8.0 | 125 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-10-19 | BR175B | 4745 | 350 | 7.4 | 121 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-10-12 | BR175A | 4663 | 397 | 8.5 | 122 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-09-14 | BP167B | 5103 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2012-05-24 | BL178AK | 6376 | 572 | 9.0 | 140 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2012-04-22 | BL180E | 5949 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2011-12-29 | BL178AD | 6009 | 290 | 4.8 | 128 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2011-11-28 | BG207K | 6457 | 429 | 6.6 | 138 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2011-09-28 | BG207I | 4875 | 248 | 5.1 | 139 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2011-08-26 | BL149DP | 6224 | 101 | 1.6 | 120 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2011-02-27 | BL149DC | 6832 | 404 | 5.9 | 148 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2010-10-18 | S2087ED | 5191 | 296 | 5.7 | 139 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2010-08-28 | S2087EC | 3337 | 132 | 3.9 | 158 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2010-07-09 | S2087EB | 4949 | 127 | 2.6 | 139 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2010-05-24 | S2087EA | 4722 | 70 | 1.5 | 145 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2010-03-18 | S2087CD | 8702 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2010-02-07 | S2087CC | 8947 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-12-18 | S2087CB | 10605 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-11-18 | S2087CA | 8276 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-10-25 | S2087AB | 7015 | 525 | 7.5 | 169 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2009-08-19 | BL149BR | 6195 | 328 | 5.3 | 154 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2009-05-28 | BL149BL | 4646 | 255 | 5.5 | 154 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2009-05-23 | BK145A | 4798 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-03-25 | BL149BJ | 4819 | 187 | 3.9 | 164 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2009-02-13 | BT102 | 4225 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-02-05 | BK150G | 4234 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-02-02 | BK150F | 4136 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2009-01-17 | BA078F | 3641 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2008-11-19 | BL149BE | 2831 | 163 | 5.7 | 156 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-09-12 | BL149BC | 3115 | 46 | 1.5 | 166 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-08-06 | BL149BA | 3284 | 63 | 1.9 | 175 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-07-17 | BL149AK | 3339 | 105 | 3.1 | 173 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-07-05 | BA078E | 3338 | 74 | 2.2 | 160 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-05-01 | BL149AO | 3085 | 109 | 3.5 | 154 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-01-12 | BA078D | 2747 | 147 | 5.4 | 161 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2007-09-06 | BL149AG | 2115 | 138 | 6.5 | 157 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2007-06-24 | BS172B | 1719 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2007-06-10 | BL149AB | 1739 | 80 | 4.6 | 162 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2007-05-10 | BA078C | 1785 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2007-04-18 | BL137Q | 1807 | 135 | 7.5 | 165 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2007-04-09 | BS172A | 1791 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2007-03-02 | BL137O | 2243 | 111 | 4.9 | 162 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2007-01-06 | BL137R | 2850 | 112 | 3.9 | 176 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2006-12-06 | BS150F | 3145 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2006-09-21 | BS150E | 3070 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2006-05-12 | BS150D | 4569 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2006-04-28 | BL137D | 4942 | 192 | 3.9 | 0 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-11-14 | BS150B | 3642 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2005-08-29 | BP120E | 3567 | 159 | 4.5 | 131 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-07-14 | BP120D | 3284 | 138 | 4.2 | 137 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-06-03 | BL123H | 2442 | 127 | 5.2 | 144 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-05-21 | BP120C | 2368 | 128 | 5.4 | 138 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-05-19 | BW066C | 2137 | 85 | 4.0 | 162 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-05-14 | BS150A | 2248 | 70 | 3.1 | 138 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-03-13 | BH113C | 2285 | 145 | 6.3 | 141 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-02-14 | BP120A | 2643 | 185 | 7.0 | 139 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2004-12-02 | BL111Q | 2718 | 192 | 7.1 | 140 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2004-11-05 | BG121C | 3289 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2004-09-02 | BG144C | 4116 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2004-08-09 | BL111N | 4349 | 147 | 3.4 | 150 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2004-04-01 | BH113D | 4656 | 162 | 3.5 | 13 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-08-28 | BL111J | 2470 | 104 | 4.2 | 144 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-05-26 | BP089F | 2671 | 91 | 3.4 | 148 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-05-10 | BH108 | 3398 | 143 | 4.2 | 146 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-03-05 | BG128B | 2114 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2003-01-13 | BA045C | 2506 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2002-11-15 | BP089E | 3825 | 107 | 2.8 | 14 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2002-10-09 | BL111C | 4114 | 58 | 1.4 | 17 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2002-09-20 | BA061A | 3973 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2002-08-30 | BP089D | 3543 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2002-07-19 | BA045B | 4032 | 14 | 0.3 | 61 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2002-07-03 | BP089C | 3875 | 39 | 1.0 | 54 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2002-06-27 | BP089B | 3833 | 45 | 1.2 | 161 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2002-05-01 | BW062A | 2813 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2002-01-07 | BA051C | 3028 | 161 | 5.3 | 170 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-11-07 | BR077C | 2647 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2001-11-02 | BA051B | 3053 | 81 | 2.6 | 172 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-10-22 | BG117B | 3069 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2001-09-05 | BA045 | 3472 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2001-06-30 | BA051A | 3714 | 72 | 1.9 | 0 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-03-05 | BG113C | 2444 | 83 | 3.4 | 130 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-01-21 | BK068H | 2444 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2000-10-17 | BL085E | 1722 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2000-10-08 | BL085A | 1440 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2000-08-25 | BH068 | 1377 | 9.7 | 0.7 | 133 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2000-06-29 | BG099 | 1325 | 8.8 | 0.7 | 109 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2000-06-27 | BT051 | 1262 | 18 | 1.4 | 119 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2000-04-07 | BJ031A | 1729 | 54 | 3.1 | 121 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-12-31 | BA029F | 2534 | 112 | 4.4 | 139 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-12-23 | BA037C | 2473 | 100 | 4.0 | 137 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-10-16 | BA037B | 1973 | 15 | 0.7 | 116 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-07-24 | BA037 | 2276 | 74 | 3.3 | 14 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-02-08 | BA029D | 2265 | 35 | 1.6 | 74 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-01-07 | BM108 | 1884 | 6.7 | 0.4 | 92 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-10-30 | BK052D | 1564 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1998-10-25 | BA029C | 1626 | 25 | 1.5 | 150 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-05-29 | BA029B | 2292 | 10 | 0.4 | 26 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-04-27 | BM080C | 2459 | 95 | 3.9 | 164 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-01-19 | BA029 | 1609 | 34 | 2.1 | 138 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-01-03 | BH045A | 1789 | 35 | 1.9 | 118 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-01-02 | BM080B | 1837 | 23 | 1.3 | 125 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1997-12-07 | BH046 | 1645 | 45 | 2.7 | 97 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1997-11-11 | BA028 | 1914 | 39 | 2.0 | 101 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1997-08-28 | BK052A | 1623 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1997-03-13 | BK048B | 1289 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1997-02-09 | BG063 | 1410 | 11 | 0.8 | 41 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-12-06 | BR034F | 1602 | 16 | 1.0 | 34 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-10-27 | BK037D | 1674 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1996-09-27 | BR034E | 1831 | 54 | 3.0 | 137 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-07-27 | BR034D | 1342 | 58 | 4.3 | 158 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-06-22 | BH021 | 1435 | 36 | 2.5 | 153 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-05-27 | BR034C | 1490 | 36 | 2.4 | 0 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-03-22 | BR034B | 1573 | 41 | 2.6 | 169 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-01-19 | BR034 | 2189 | 83 | 3.8 | 5 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-01-13 | BM050 | 2449 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1995-12-15 | BK37A | 2660 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1995-11-03 | BA12 | 2284 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1995-04-07 | BK016 | 1288 | no data | FITS PNG PDF | UVF | PNG PDF | PNG |
