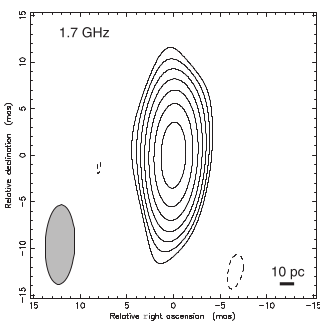

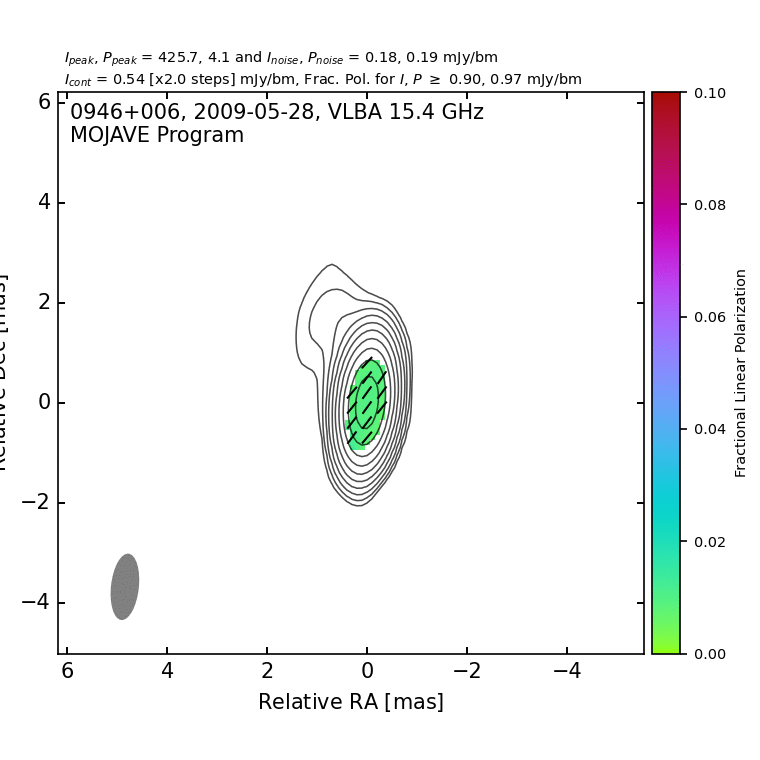

Common Name: PMN J0948+0022 MOJAVE 15 GHz [Total intensity movie]   | [Polariz. movie] VLBA 1.4 GHz: 2006PASJ...58..829D
B1950 Name: 0946+006 2 cm VLBA Image map
J2000 Name: J0948+0022
R.A. and Dec. (J2000): 9h48m57.320s
+0d22'25.560"
AGN Class: LSP NLSY1
Redshift: 0.583844 (2020ApJS..249....3A)
Luminosity Distance: 3408 Mpc ; 6.59 pc/mas
Radio Spectrum: Flat
Gamma-ray Association LAT: Y, EGRET: N, TeV: N
Kpc-scale morphology: Core
Jet Speed: Maximum: 303 ± 32 μas/y ; 10.3 ± 1.1 c
Median: N/A ;
based on 2 moving features
Lister et al. 2021, ApJ,923,30
Separation Versus Time Plot: PNG    PDF
Stacked 15 GHz Stokes I VLBA images:

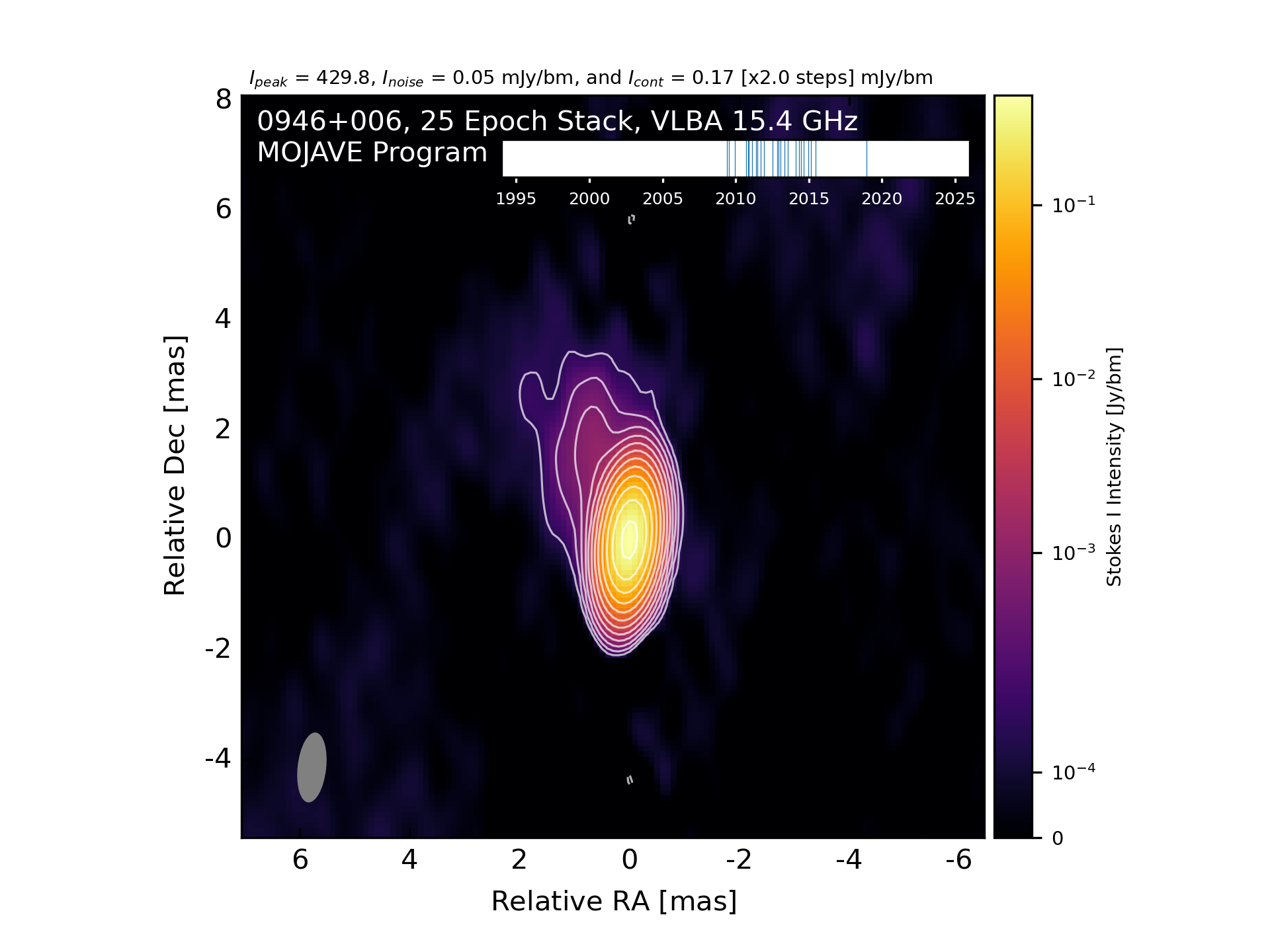

Natural weight:   PNG PDF FITS

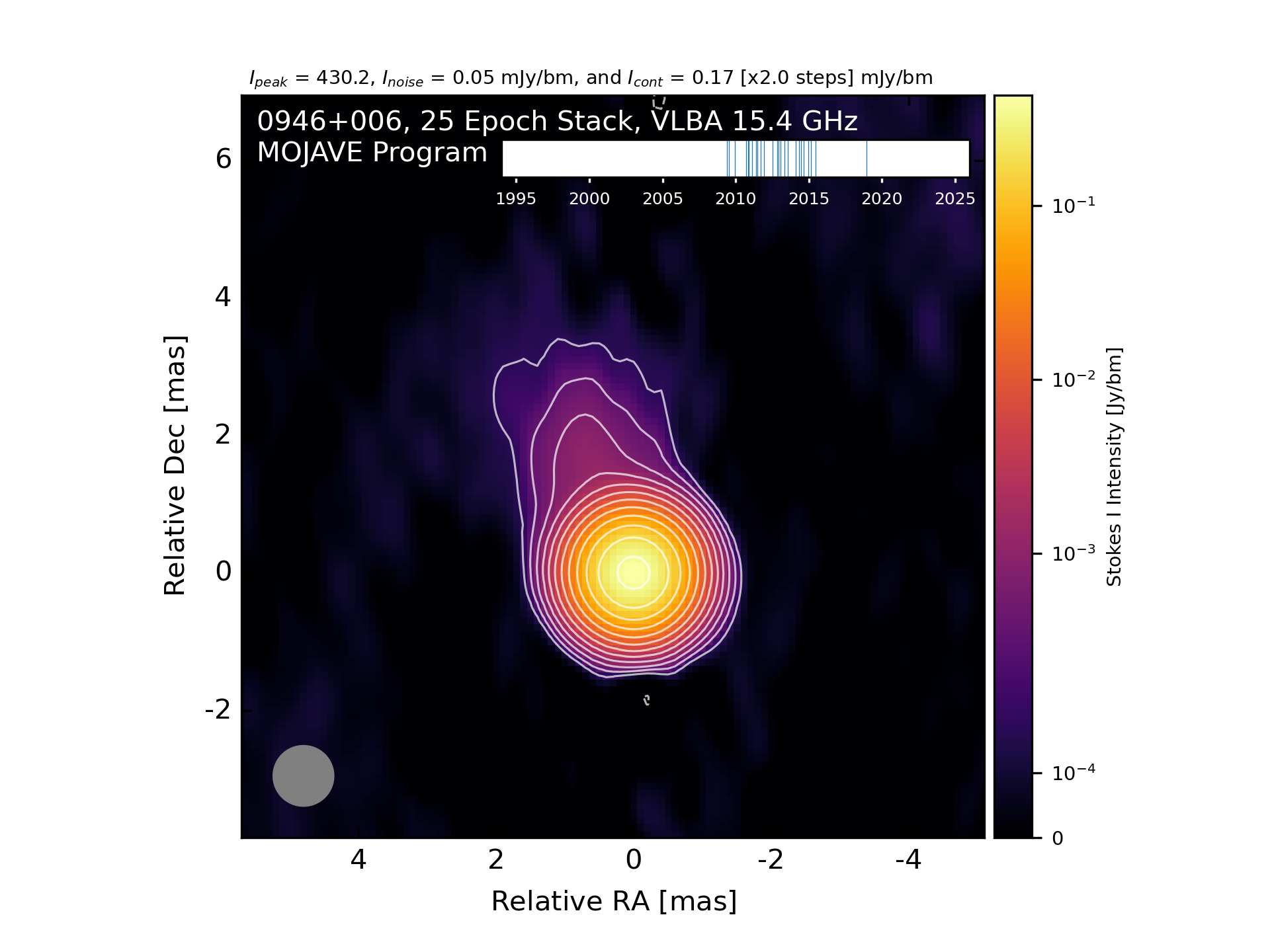

Circular Beam:   PNG PDF FITS

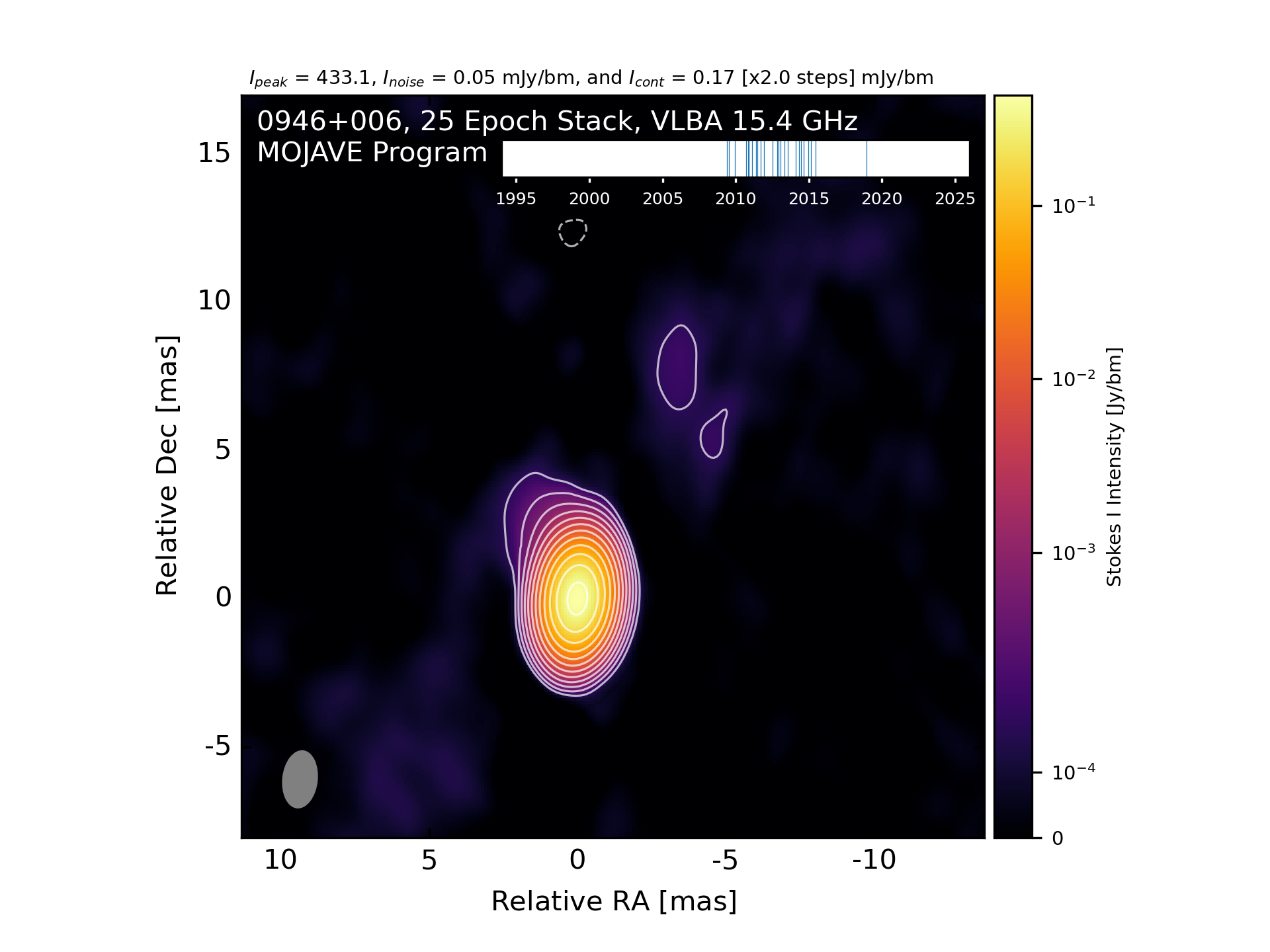

Tapered Beam:   PNG PDF FITS
Stacking for 1994-2015:   FITS

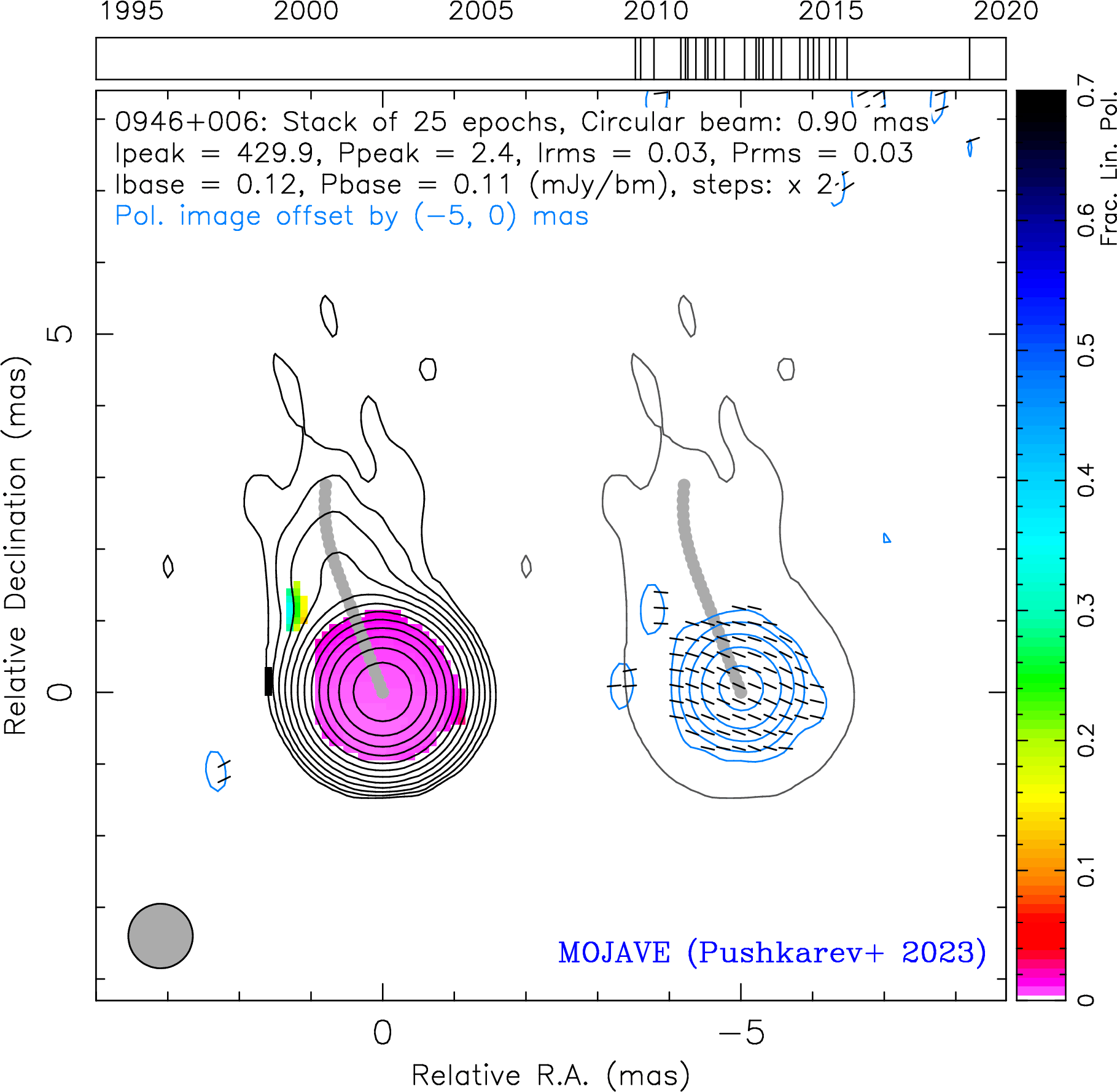

Stacked 15 GHz Polarization VLBA images:

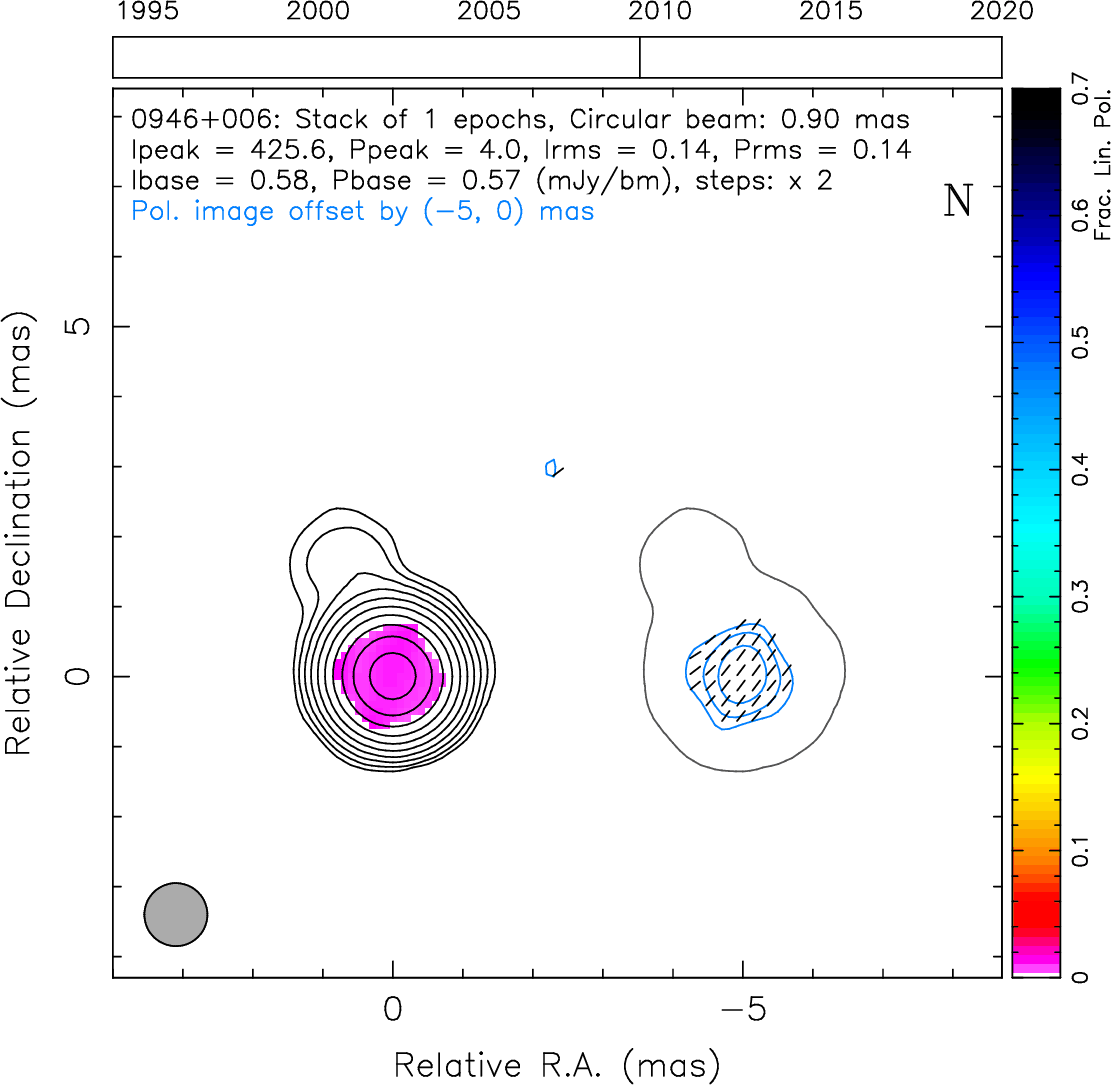

Method I:   Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS

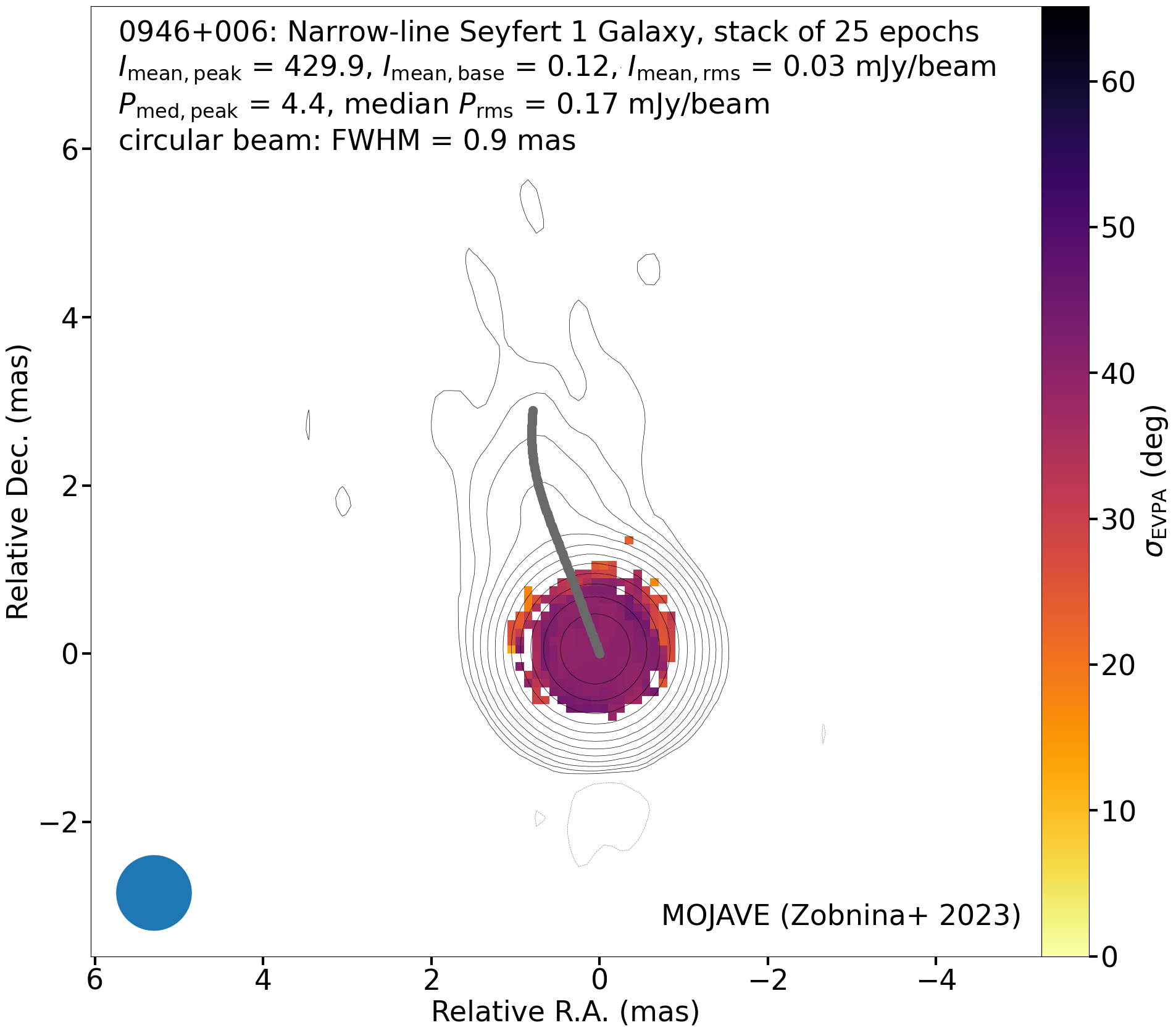

Method II:   std EVPA PNG, FITS

Rotation Measure 8-15 GHz Map: | Not available |

Spectral Index 8-15 GHz Map: | Not available |


VLBA 23 GHz:
Kpc-scale: Doi et al. 2012
23 GHz Image
Kpc Image

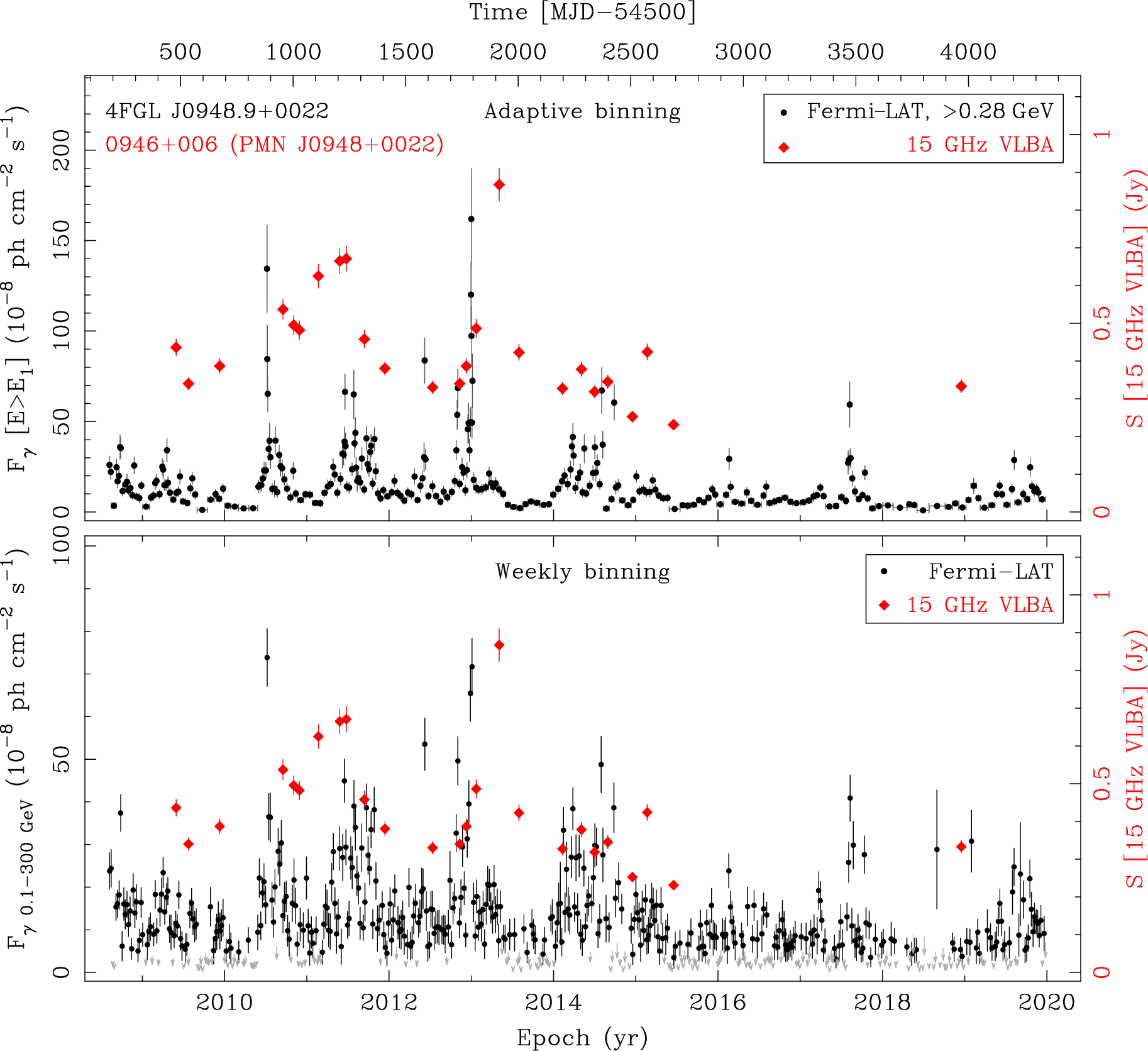

Fermi LAT and 15 GHz VLBA Light Curves

Fermi LAT and 15 GHz VLBA Light Curves
VLBA 43 GHz:

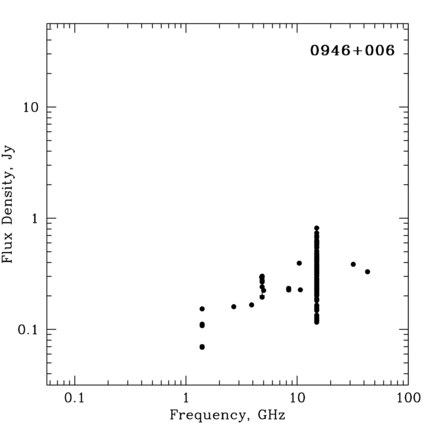

Multiepoch Radio Spectrum:
43 GHz Image
Radio Spectrum
Comments: NLSY1; LAT 1FM source; unresolved in Doi 2006 VLA image

If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"

Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Epoch
(YYYY-MM-DD)
VLBA Code VLBA I
(mJy)
VLBA P
(mJy)
VLBA
P (%)
VLBA
EVPA (deg.)
I Image (Nat. Weight) Visibility
Data
Stokes I Radplot Polarization
Full
Montage
2018-12-16 BL229AT 331 9.4 2.8 117 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2015-06-18 S6407G 229 1.0 0.4 24 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2015-02-20 S6407F 421 2.2 0.5 178 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-12-15 S6407E 254 0.9 0.3 151 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-08-28 S6407D 344 4.9 1.4 167 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-06-30 S6407C 315 < 0.8 < 2.4 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-05-04 S6407B 378 2.5 0.7 64 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-02-08 S6407A 326 1.3 0.4 48 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2013-07-30 BL178BG 421 11 2.6 88 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2013-05-05 BL178BC 864 6.9 0.8 97 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2013-01-21 BL178AY 484 3.9 0.8 133 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2012-12-10 BL178AV 386 5.0 1.3 96 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2012-11-11 BL178AS 339 3.4 1.0 81 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2012-07-12 BL178AM 328 3.2 1.0 93 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-12-12 BL178AC 379 1.1 0.3 75 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-09-12 BL149DQ 457 4.7 1.0 47 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-06-24 BL149DL 670 13 2.0 48 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-05-26 BL149DI 666 12 1.8 48 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-02-20 BL149DB 624 4.0 0.6 9 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-11-29 BL149CY 483 6.4 1.3 47 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-11-04 BL149CV 491 8.5 1.7 49 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-09-17 BL149CP 535 18 3.3 52 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-12-10 BL149CD 386 1.2 0.3 70 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-07-23 BL149BQ 337 3.5 1.0 152 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-05-28 BL149BL 434 4.5 1.0 135 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
