| Common Name: | PKS 1510-089 | MOJAVE 15 GHz [Total intensity movie] | [Polariz. movie] | VLBA 1.4 GHz: University College Cork Program |
||||||||||||||||||
| B1950 Name: | 1510-089 |  |
 |
||||||||||||||||||
| J2000 Name: | J1512-0905 | ||||||||||||||||||||
| R.A. and Dec. (J2000): | 15h12m50.533s -9d5'59.830" |
||||||||||||||||||||
| AGN Class: | LSP HPQ | ||||||||||||||||||||
| Redshift: | 0.36 (1990PASP..102.1235T) | Luminosity Distance: | 1907 Mpc ; 5.00 pc/mas | ||||||||||||||||||
| Radio Spectrum: | Flat | ||||||||||||||||||||
| Gamma-ray Association | LAT: Y, EGRET: Y, TeV: Y | ||||||||||||||||||||
| Kpc-scale morphology: | Two-sided | ||||||||||||||||||||
| Jet Speed: | Maximum: 1263 ± 28 μas/y ; 28.00 ± 0.61 c Median: 870 ± 77 μas/y ; 19.3 ± 1.7 c based on 14 moving features Lister et al. 2019, ApJ,874,43 |
||||||||||||||||||||
| Separation Versus Time Plot: | PNG PDF | ||||||||||||||||||||

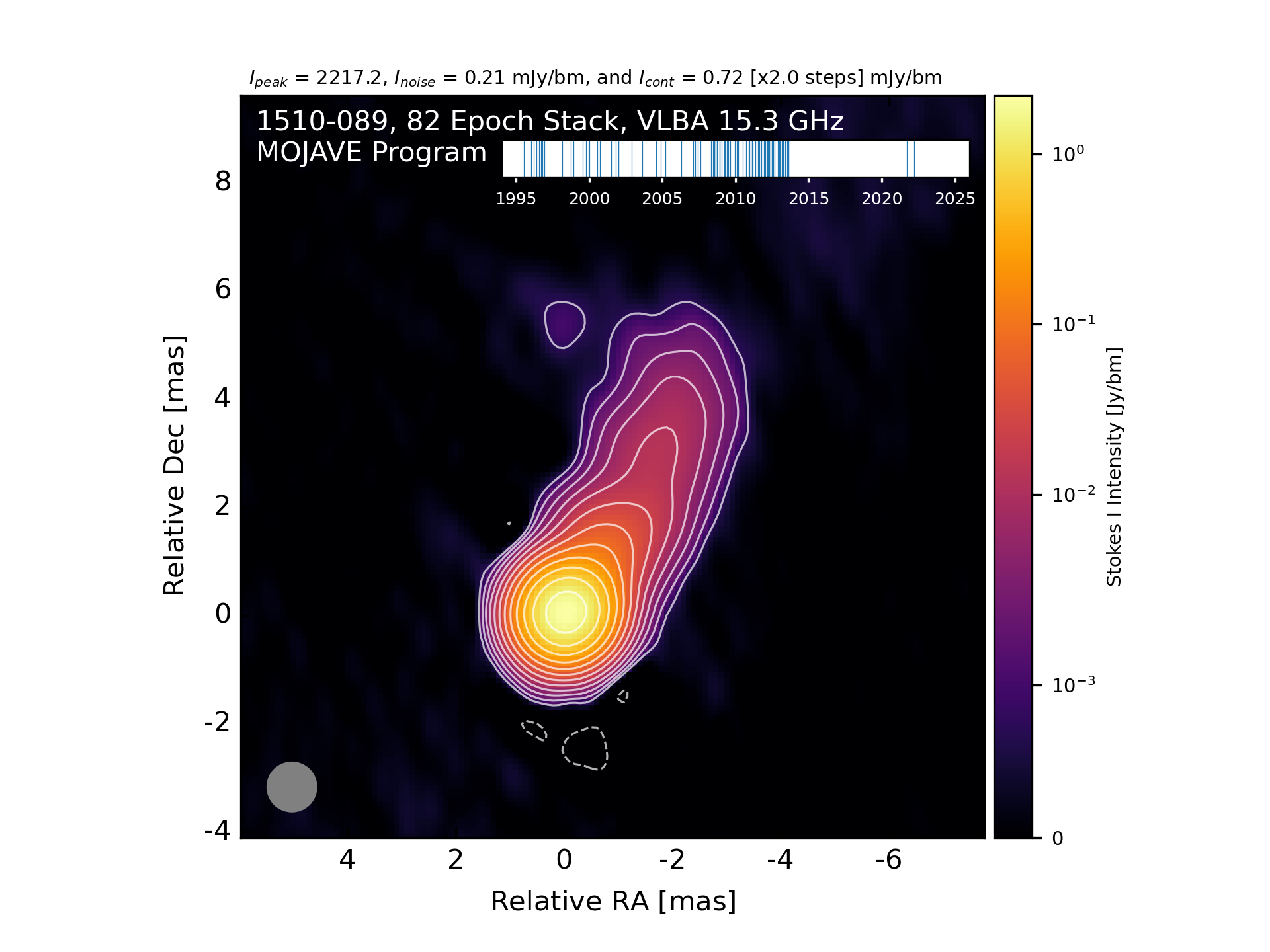

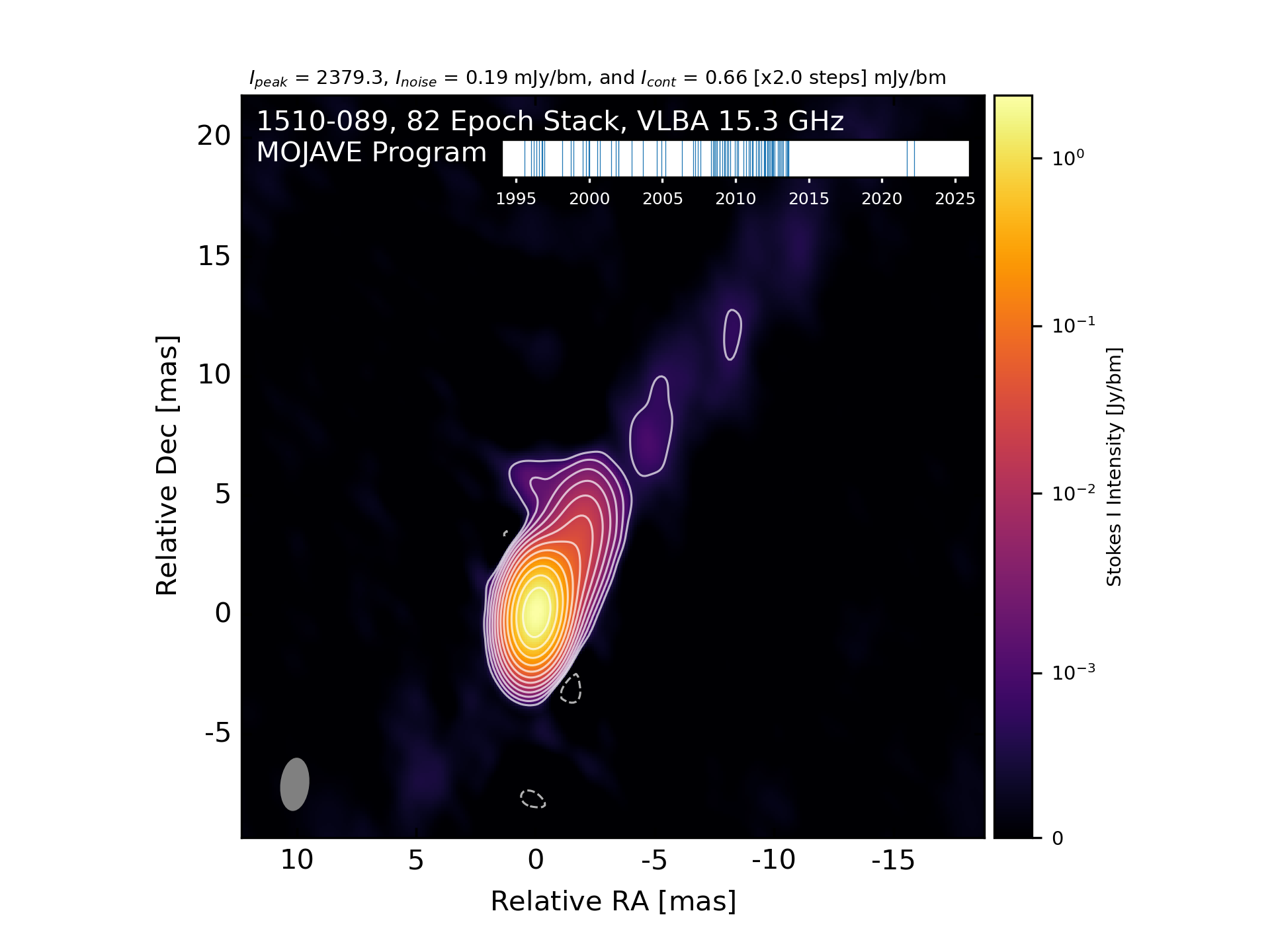

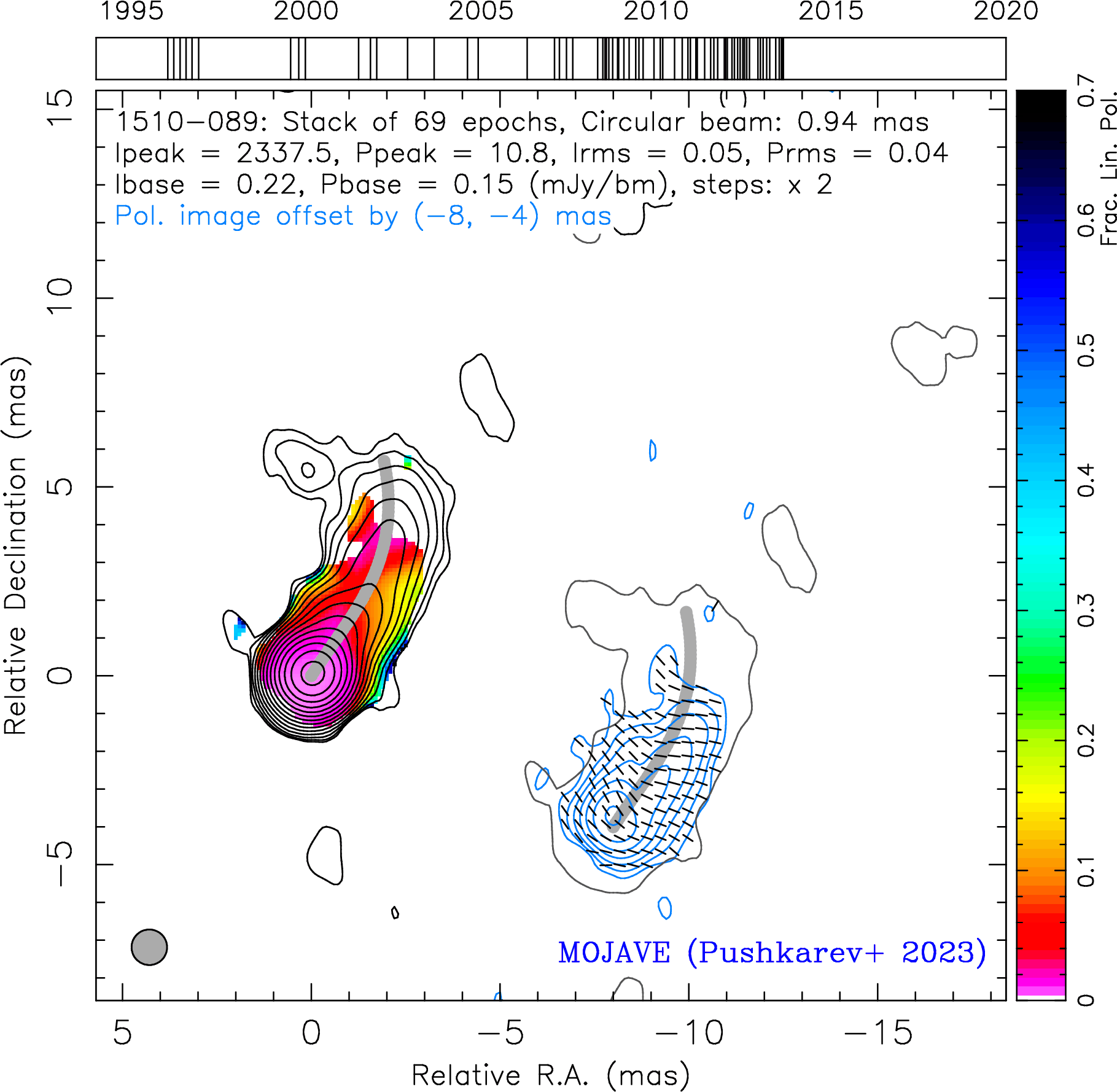

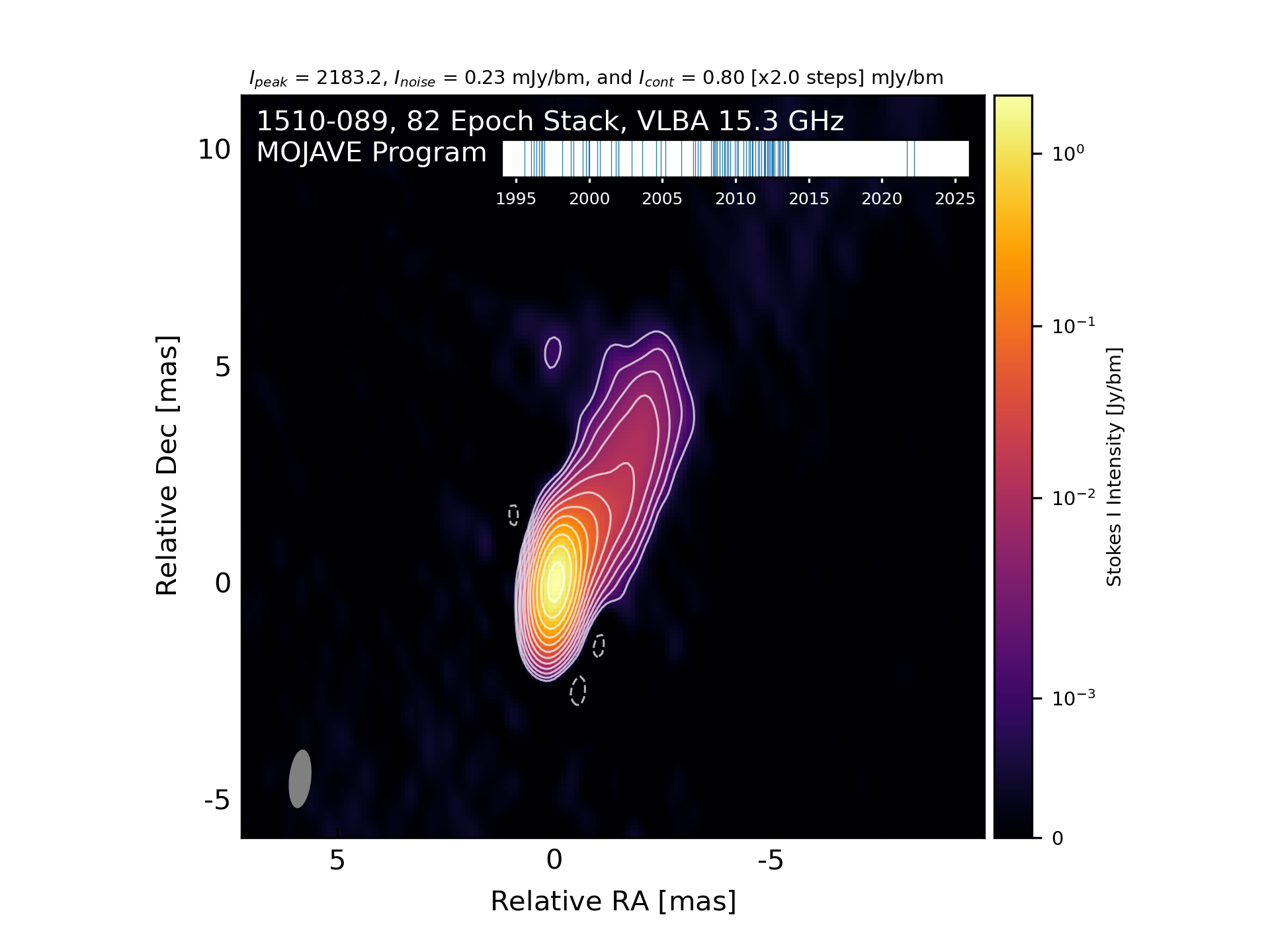

| Stacked 15 GHz Stokes I VLBA images: Uniform weight: PNG PDF Natural weight: PNG PDF Circular Beam: PNG PDF Tapered Beam: PNG PDF Stacking for 1994-2015: FITS Stacked 15 GHz Polarization VLBA images: Method I: Cumulative GIF, I FITS, P FITS, m FITS, EVPA FITS Method II: std EVPA FITS Rotation Measure 8-15 GHz Map: | 2006_04_28 | Spectral Index 8-15 GHz Map: | 2006_04_28 | Multifrequency MOJAVE VLBA Data:
Univ. College Cork VLBA L Band Data:
|
VLBA 23 GHz: |
Kpc-scale: T. Cheung, Ph.D. Thesis | |||||||||||||||||||
 |
 |
||||||||||||||||||||

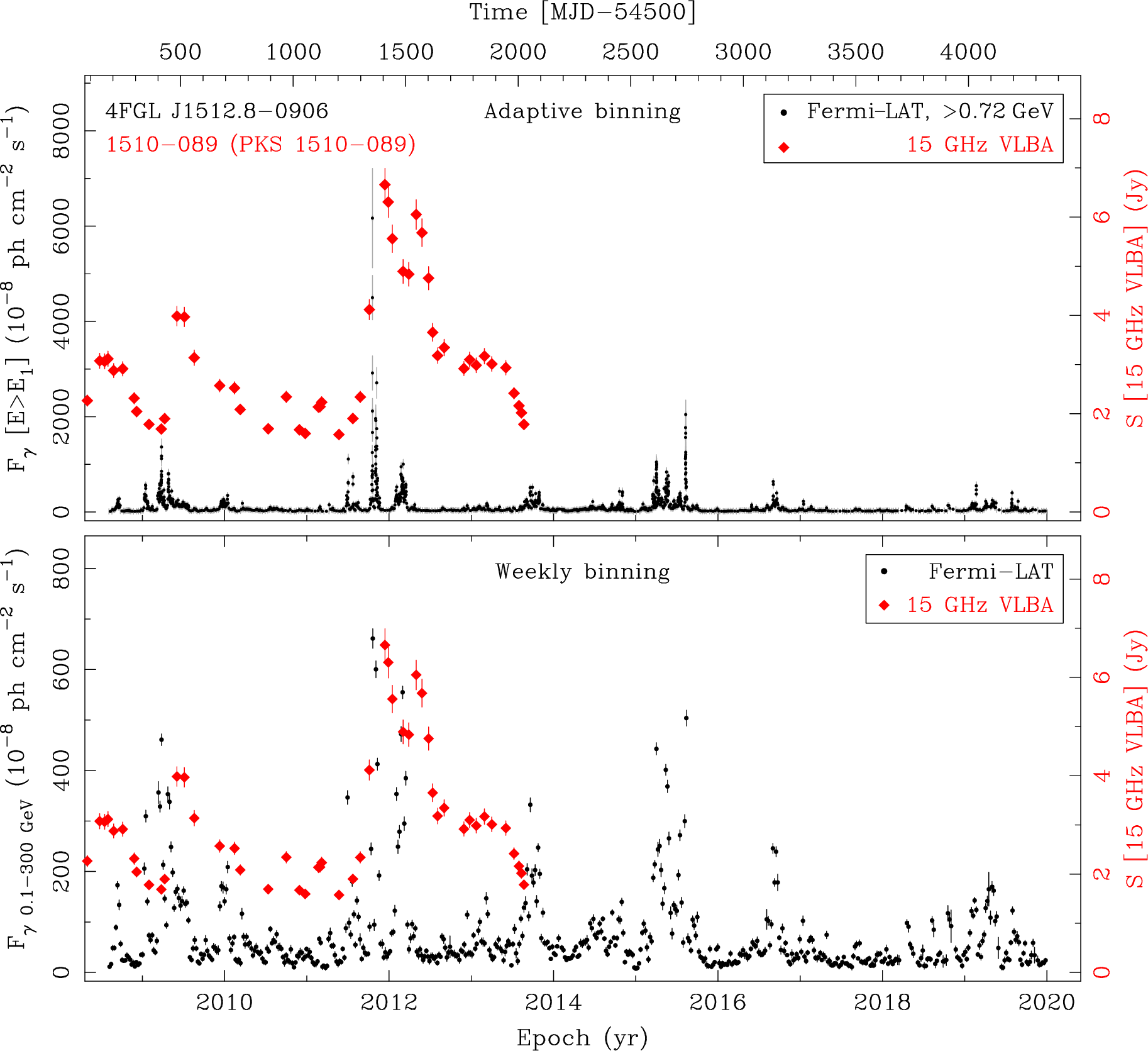

Fermi LAT and 15 GHz VLBA Light Curves |

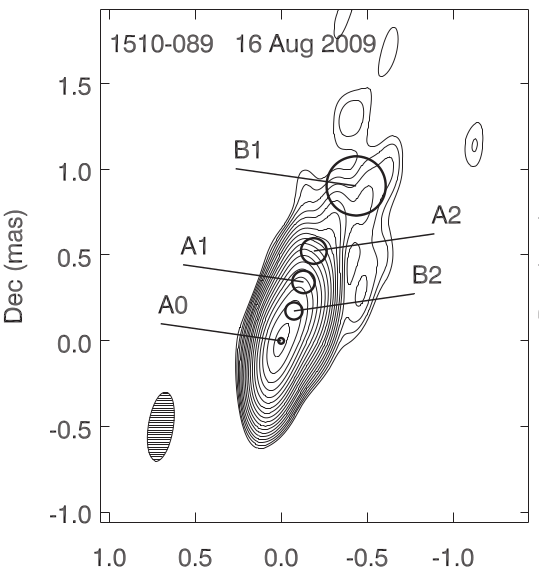

VLBA 43 GHz: Jorstad et al. 2017 |

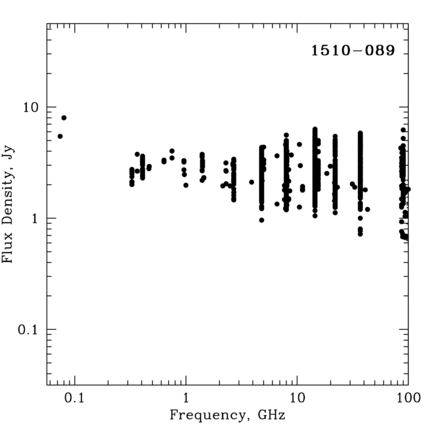

Multiepoch Radio Spectrum: |
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
||||||||||||||||||||

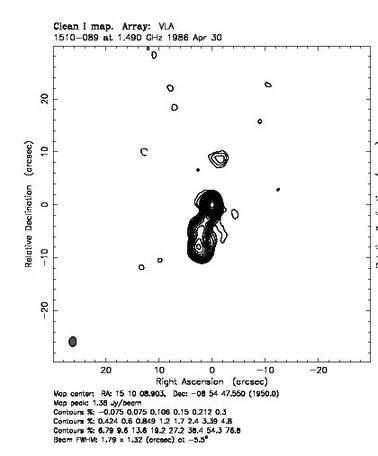

| Comments: | VLA image also by ODea et al. 1988 | ||||||||||||||||||||
If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
| Epoch (Y-M-D) | VLBA Code | VLBA I (mJy) |
VLBA P (mJy) |
VLBA P (%) |
VLBA EVPA (deg.) |
I Image (Nat. Weight) | Tapered I Image | Tapered I Image (Widefield) | Visibility Data |
Stokes I Radplot | Pol. Image |
2022-12-31 * | BL286AQ | 2108 | 34 | 1.6 | 42 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2022-03-18 | BL286AI | 3478 | 107 | 3.1 | 55 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2021-09-13 | BL286AB | 4316 | 47 | 1.1 | 91 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-08-20 | BL178BI | 2022 | 34 | 1.7 | 32 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-08-12 | BL178BH | 2029 | 77 | 3.8 | 26 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-07-30 | BL178BG | 2172 | 89 | 4.1 | 19 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-07-08 | BL178BE | 2426 | 58 | 2.4 | 3 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-06-02 | BL178BD | 2940 | 115 | 3.9 | 13 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-03-31 | BL178BB | 3016 | 97 | 3.2 | 31 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-02-28 | BL178BA | 3156 | 81 | 2.6 | 35 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2013-01-21 | BL178AY | 2997 | 112 | 3.7 | 32 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-12-23 | BL178AX | 3115 | 64 | 2.1 | 39 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-11-28 | BL178AU | 2929 | 31 | 1.0 | 43 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-09-02 | BL178AO | 3359 | 39 | 1.2 | 112 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-08-03 | BL178AN | 3278 | 82 | 2.5 | 151 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-07-12 | BL178AM | 3677 | 44 | 1.2 | 147 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-06-25 | BL178AL | 4780 | 92 | 1.9 | 6 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-05-24 | BL178AK | 5685 | 20 | 0.4 | 147 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-04-29 | BL178AJ | 6070 | 86 | 1.4 | 178 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-03-27 | BL178AI | 4852 | 110 | 2.3 | 23 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-03-04 | BL178AH | 4896 | 96 | 2.0 | 51 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2012-01-14 | BL178AF | 5567 | 176 | 3.2 | 55 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-12-29 | BL178AD | 6325 | 180 | 2.8 | 60 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-12-12 | BL178AC | 6684 | 103 | 1.5 | 64 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-10-03 | BL178AA | 4139 | 30 | 0.7 | 67 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-08-26 | BL149DP | 2361 | 33 | 1.4 | 56 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-07-24 | BL149DN | 1912 | 44 | 2.3 | 58 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-05-21 | BL149DH | 1592 | 26 | 1.6 | 65 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-03-05 | BL149DD | 2245 | 37 | 1.6 | 83 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-02-27 | BL149DC | 2163 | 37 | 1.7 | 60 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2011-02-20 | BL149DB | 2162 | 31 | 1.5 | 60 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2010-12-24 | BL149CZ | 1603 | 38 | 2.3 | 73 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2010-11-29 | BL149CY | 1686 | 45 | 2.7 | 77 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2010-09-29 | BL149CR | 2344 | 50 | 2.1 | 85 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2010-07-12 | BL149CL | 1691 | 12 | 0.7 | 24 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2010-03-10 | BL149CI | 2088 | 87 | 4.2 | 149 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2010-02-11 | BL149CH | 2528 | 67 | 2.6 | 141 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2009-12-10 | BL149CD | 2582 | 30 | 1.2 | 141 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2009-08-19 | BL149BR | 3146 | 120 | 3.8 | 161 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2009-07-05 | BL149BP | 3953 | 77 | 2.0 | 151 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2009-06-03 | BL149BM | 3993 | 34 | 0.8 | 132 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2009-04-09 | BK150H | 1912 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2009-03-25 | BL149BJ | 1691 | 64 | 3.8 | 67 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2009-01-30 | BL149BH | 1784 | 67 | 3.7 | 67 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-12-07 | BO033 | 2046 | 90 | 4.4 | 73 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2008-11-26 | BL149BF | 2328 | 101 | 4.4 | 67 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-10-03 | BL149BD | 2921 | 60 | 2.1 | 77 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-08-25 | BL149BB | 2869 | 66 | 2.3 | 93 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-07-30 | BL149AL | 3136 | 81 | 2.6 | 95 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-07-17 | BL149AK | 3073 | 82 | 2.7 | 88 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-06-25 | BL149AJ | 3075 | 63 | 2.1 | 90 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2008-05-01 | BL149AO | 2280 | 28 | 1.2 | 81 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2007-08-16 | BL149AF | 2187 | 71 | 3.2 | 75 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2007-06-10 | BL149AB | 1388 | 54 | 3.9 | 90 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2007-03-28 | BL137P | 1182 | 48 | 4.1 | 65 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2007-02-05 | BL137N | 1323 | 12 | 0.9 | 120 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2006-04-28 | BL137D | 1718 | 31 | 1.8 | 72 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2005-03-15 | BG152B | 2803 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2004-12-02 | BL111Q | 2793 | 69 | 2.5 | 75 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2004-08-09 | BL111N | 2186 | 106 | 4.9 | 59 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2003-08-28 | BL111J | 2116 | 16 | 0.7 | 57 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2002-11-23 | BL111D | 2665 | 95 | 3.6 | 28 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | PNG PDF | 2002-01-07 | BA051C | 1495 | 40 | 2.7 | 117 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2001-12-29 | BR077D | 1489 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2001-11-02 | BA051B | 1634 | 53 | 3.2 | 104 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2001-06-30 | BA051A | 1559 | 16 | 1.1 | 46 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2000-09-27 | BA041B | 1258 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2000-07-28 | BA041 | 1802 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 2000-01-11 | BK068D | 1609 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1999-12-23 | BA037C | 1766 | 94 | 5.3 | 127 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1999-10-16 | BA037B | 2388 | 114 | 4.8 | 140 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1999-07-24 | BA037 | 2148 | 28 | 1.3 | 160 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1998-12-05 | BG077C | 1618 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1998-09-29 | BG077B | 1598 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1998-03-07 | BK052B | 1568 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-12-06 | BR034F | 950 | 13 | 1.4 | 67 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-10-27 | BK037D | 1214 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-09-27 | BR034E | 1486 | 10 | 0.7 | 90 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-07-27 | BR034D | 1861 | 58 | 3.1 | 44 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-05-27 | BR034C | 2020 | 55 | 2.7 | 66 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-05-02 | BE10B | 1973 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-04-23 | BE10A | 1987 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-03-22 | BR034B | 1890 | 5.0 | 0.3 | 14 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1996-01-19 | BR034 | 1585 | 16 | 1.0 | 82 | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF | 1995-07-28 | BZ014 | 1213 | no data | FITS PNG PDF | FITS PNG PDF | PNG PDF | uvf | PNG PDF |
