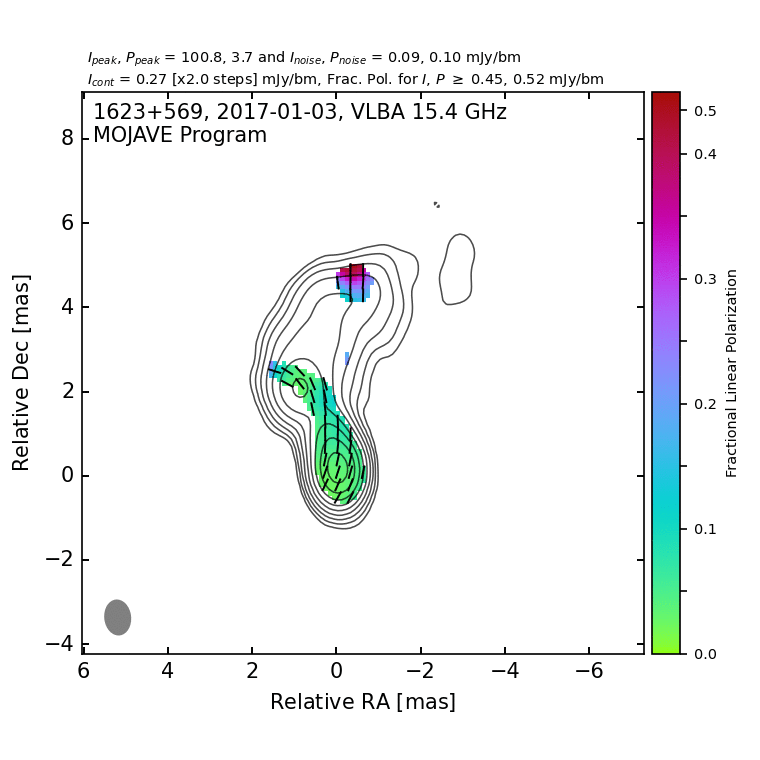

| Common Name: | IVS B1623+569 | MOJAVE 15 GHz [Total intensity movie] | [Polariz. movie] | VLBA 1.4 GHz: |
| B1950 Name: | 1623+569 |  |
 |
| J2000 Name: | J1624+5652 | ||
| R.A. and Dec. (J2000): | 16h24m32.179s +56d52'28.001" |
||
| AGN Class: | LSP BL Lac | ||
| Redshift: | Unknown | Luminosity Distance: | Unknown |
| Radio Spectrum: | Flat | ||
| Gamma-ray Association | LAT: Y, EGRET: N, TeV: N | ||
| Kpc-scale morphology: | Core | ||
| Jet Speed: | Maximum: 97 ± 13 μas/y ; Median: N/A ; based on 4 moving features Lister et al. 2021, ApJ,923,30 |
||

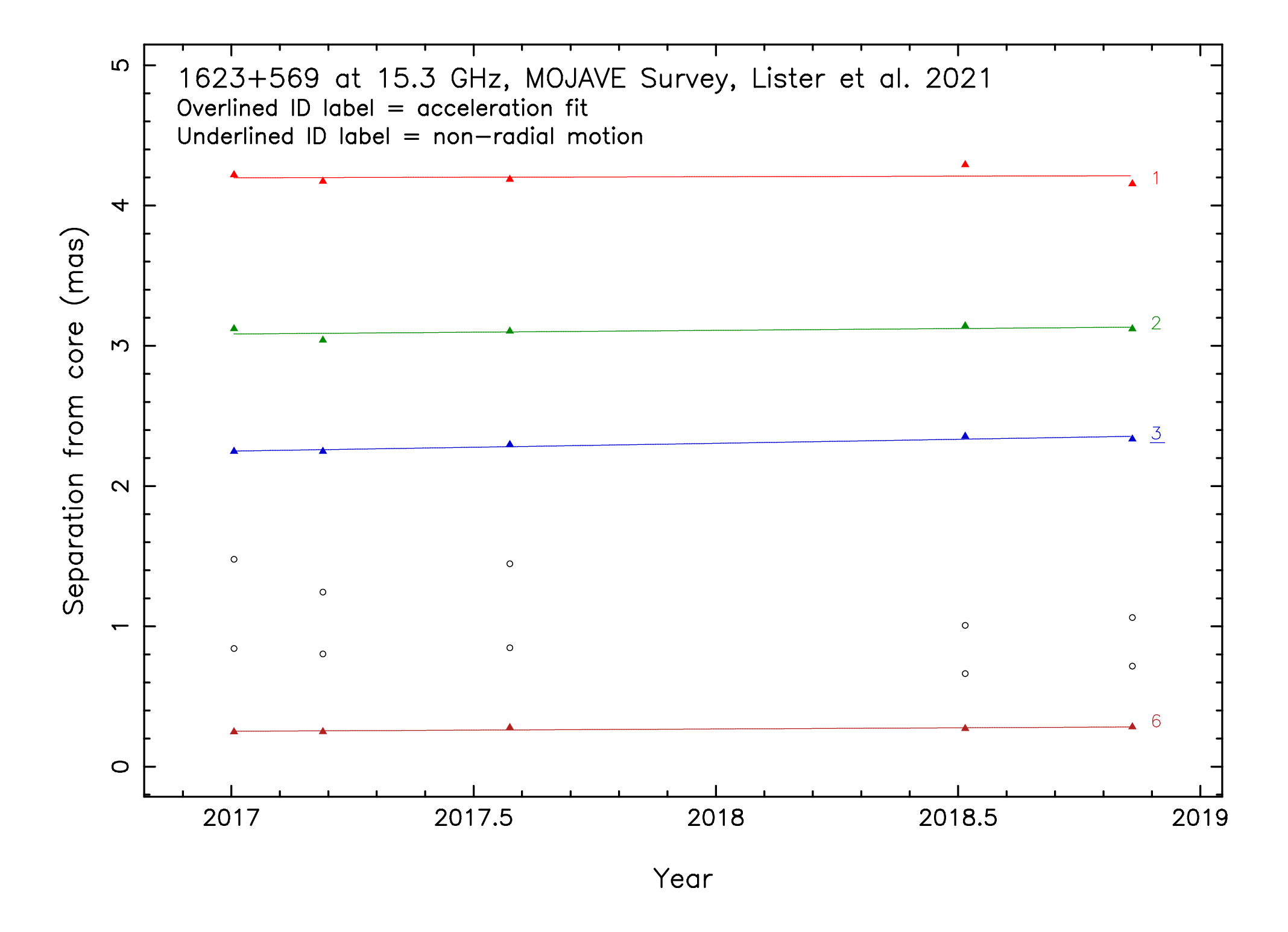

| Separation Versus Time Plot: | PNG PDF | ||

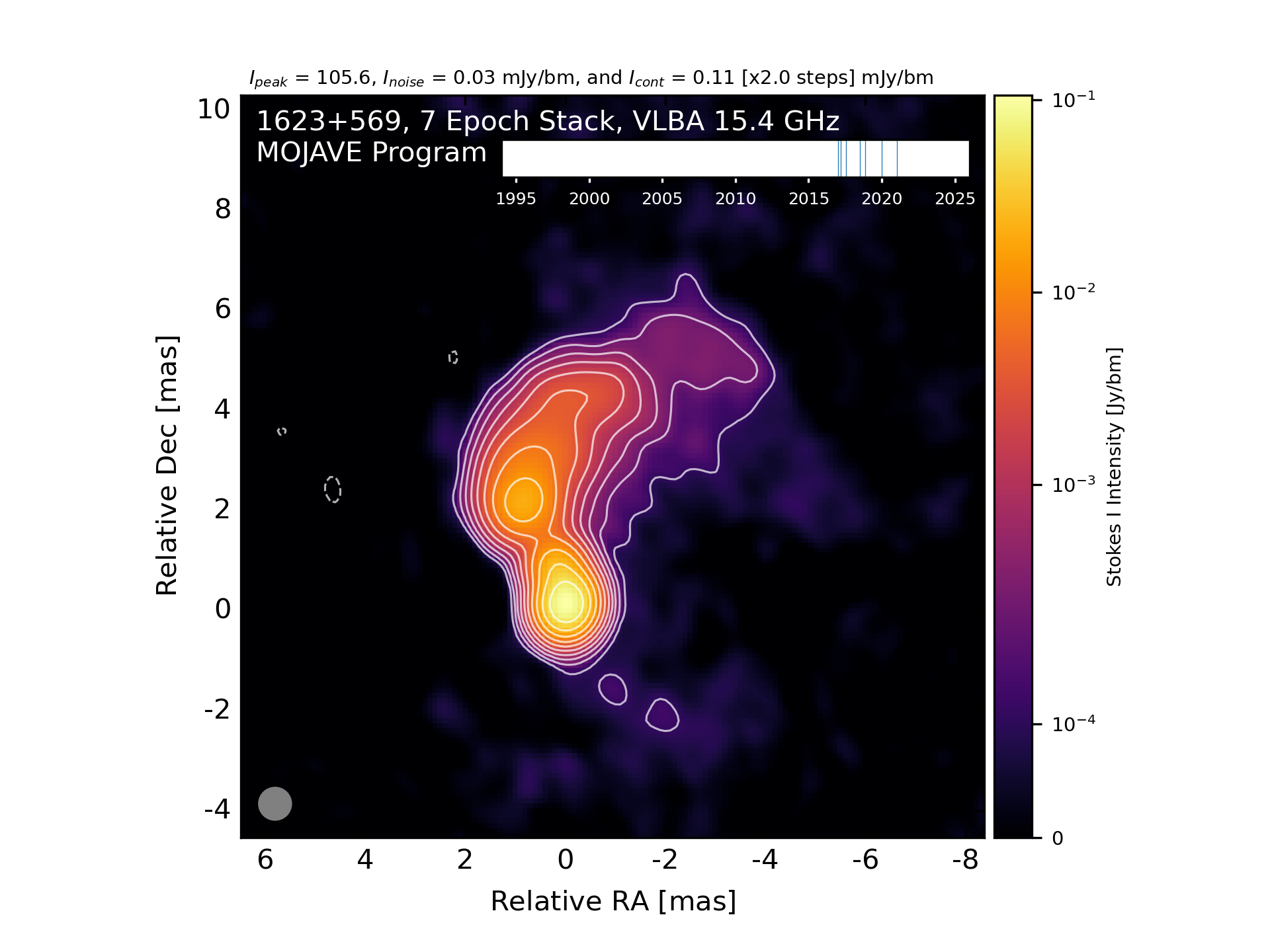

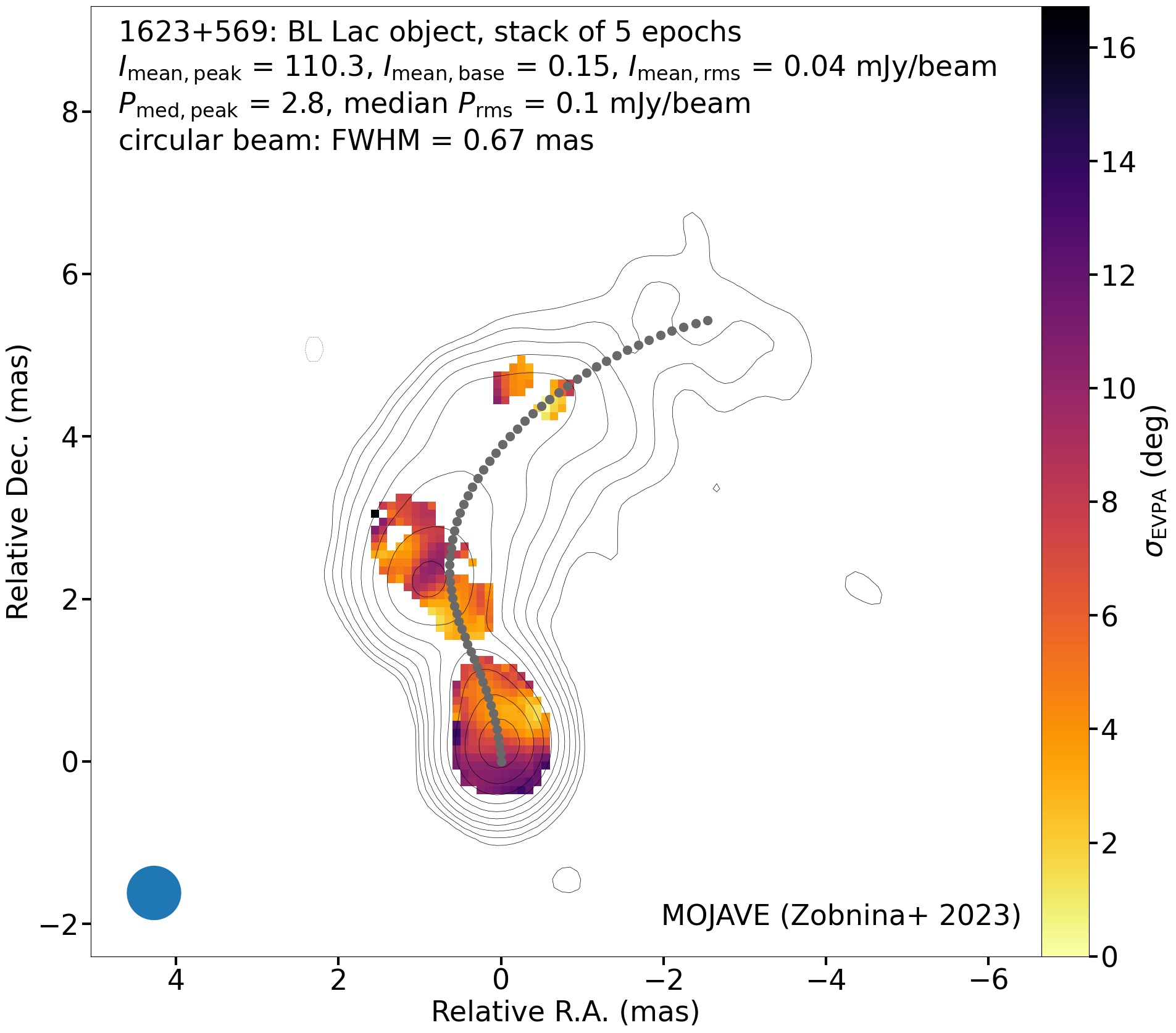

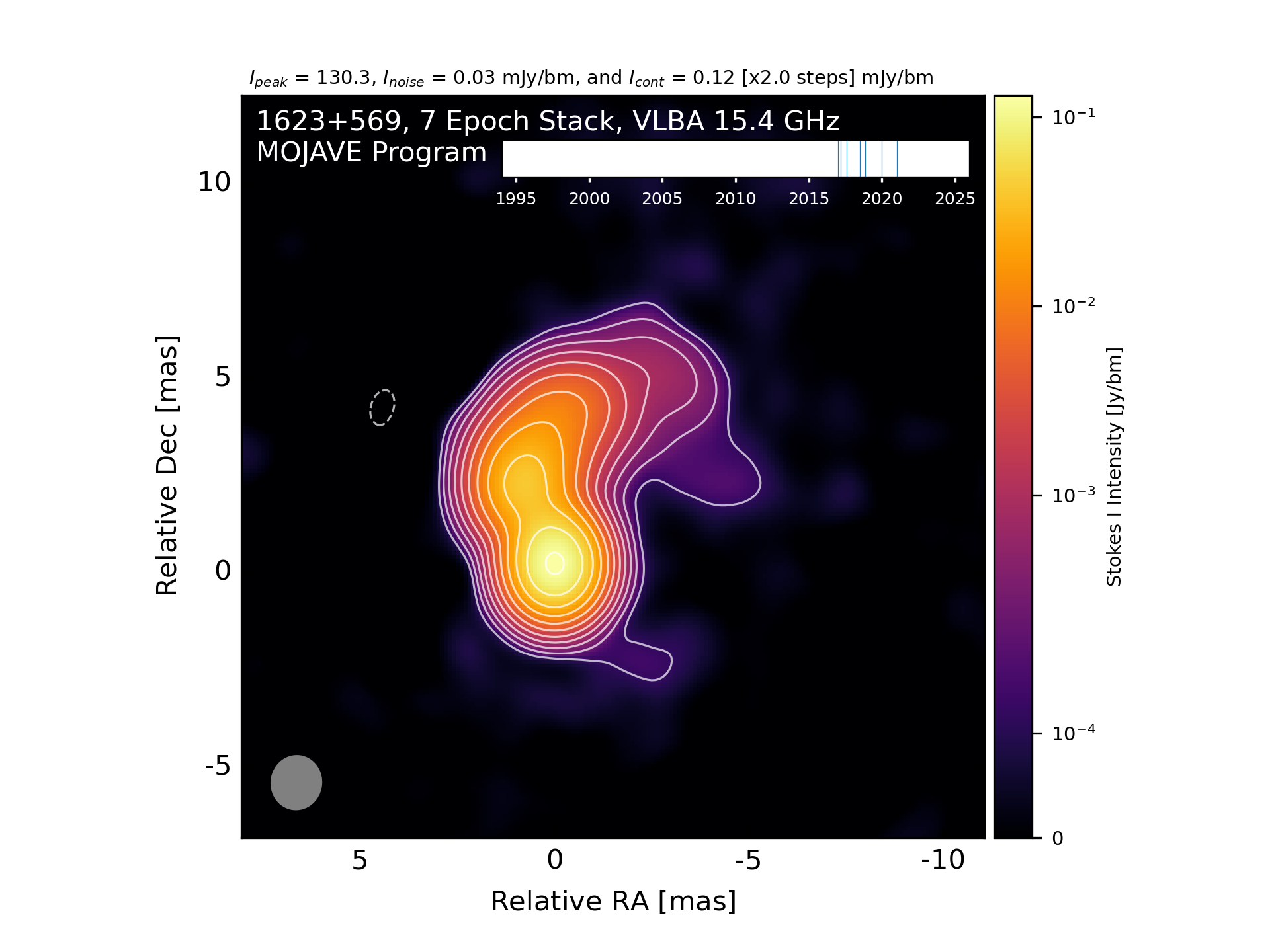

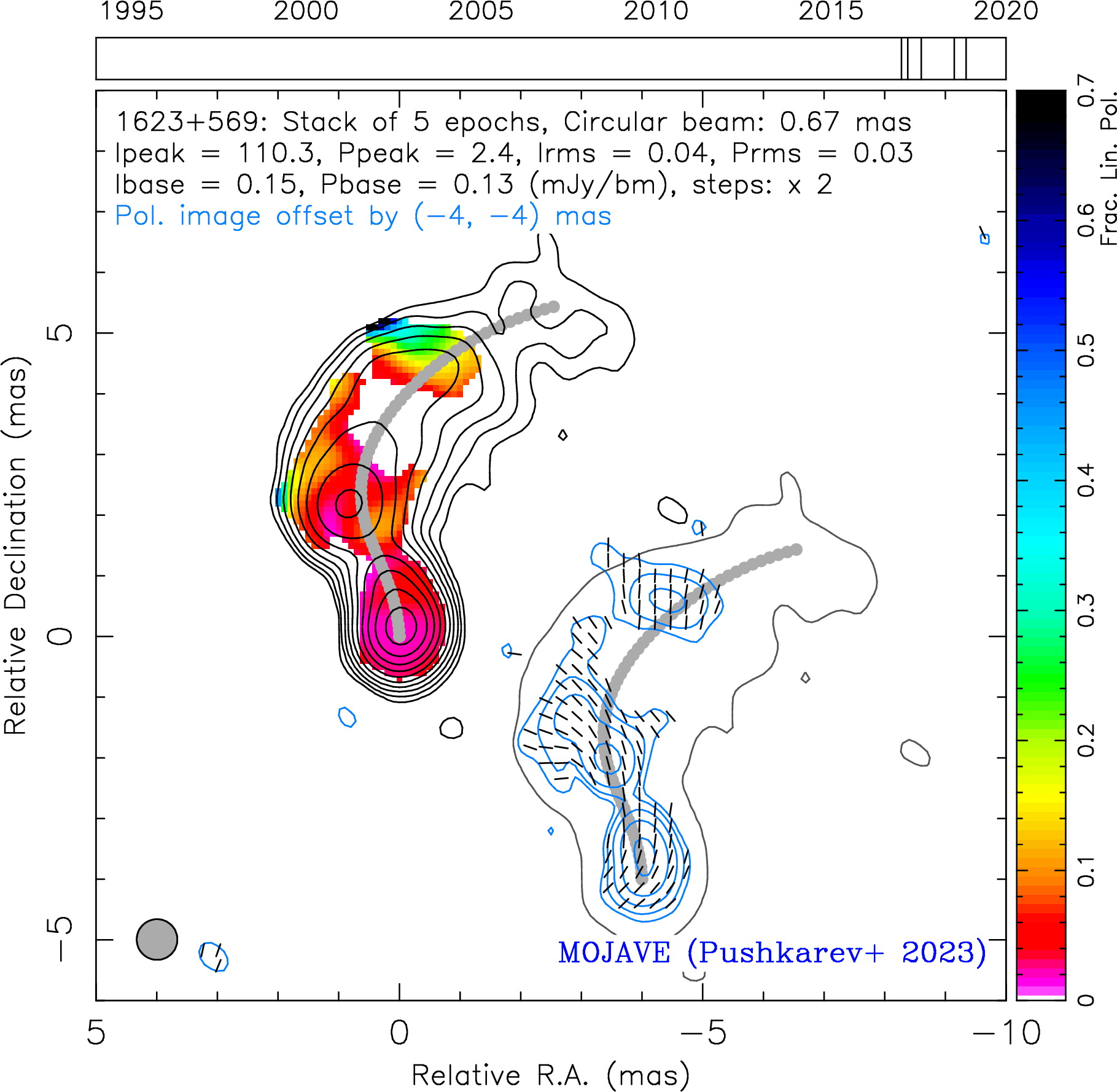

| Stacked 15 GHz Stokes I VLBA images: Natural weight: PNG PDF FITS Circular Beam: PNG PDF FITS Tapered Beam: PNG PDF FITS Stacked 15 GHz Polarization VLBA images: Method I: Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS Method II: std EVPA PNG, FITS Rotation Measure 8-15 GHz Map: | Not available | Spectral Index 8-15 GHz Map: | Not available | |
VLBA 23 GHz: |
Kpc-scale: Healey et al. 2007, ApJS 171, 61 | |
|
|
||

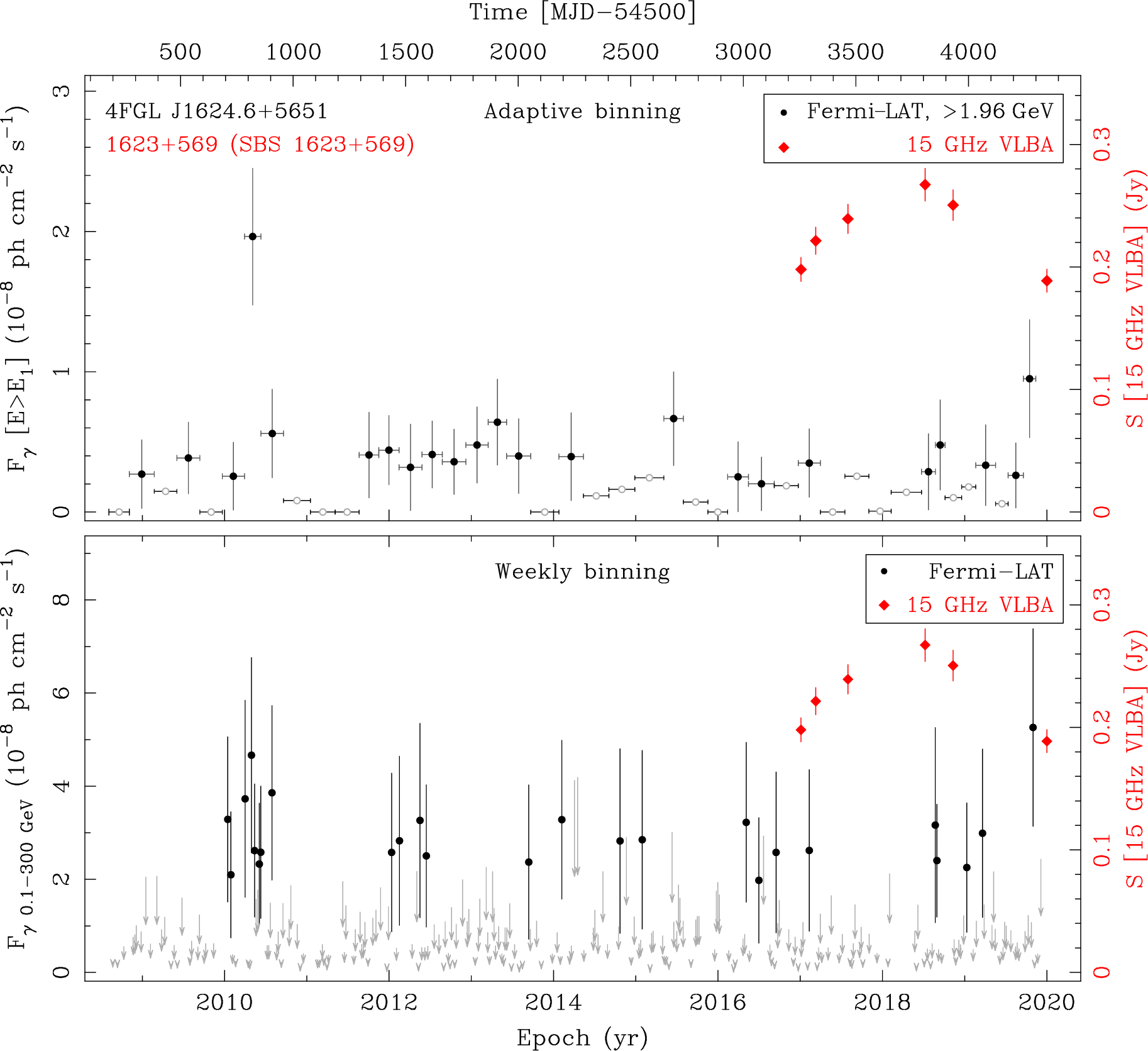

Fermi LAT and 15 GHz VLBA Light Curves |
VLBA 43 GHz: |
Multiepoch Radio Spectrum: |
|
|---|---|---|---|
|
 |
||
| Comments: | NED z = 0.415 is photometric z from 2009ApJS..180...67R; SDSS spectrum is featureless; host gal z=0.64 from 2010ApJ...712...14M | ||
If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
| Epoch (YYYY-MM-DD) | VLBA Code | VLBA I (mJy) |
VLBA P (mJy) |
VLBA P (%) |
VLBA EVPA (deg.) |
I Image (Nat. Weight) | Visibility Data |
Stokes I Radplot | Polarization Image |
Full Montage |
2021-01-11 | BL273I | 206 | 2.0 | 1.0 | 107 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-12-31 | BL229BD | 216 | 1.2 | 0.5 | 50 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-11-11 | BL229AS | 246 | 2.9 | 1.2 | 174 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2018-07-08 | BL229AP | 265 | 4.9 | 1.9 | 179 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2017-07-30 | BL229AJ | 234 | 4.0 | 1.7 | 0 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2017-03-11 | BL229AF | 219 | 4.8 | 2.2 | 177 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2017-01-03 | BL229AD | 195 | 5.3 | 2.7 | 2 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG |
