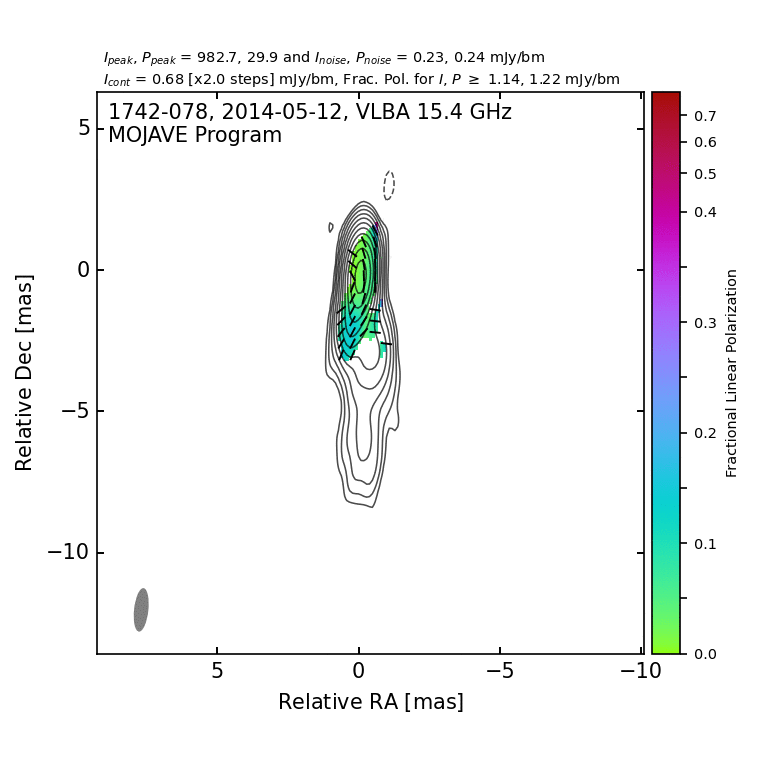

Common Name: TXS 1742-078 MOJAVE 15 GHz [Total intensity movie]   | [Polariz. movie] VLBA 1.4 GHz: NRAO Archive
B1950 Name: 1742-078 2 cm VLBA Image map
J2000 Name: J1745-0753
R.A. and Dec. (J2000): 17h45m27.105s
-7d53'3.948"
AGN Class: LSP BL Lac
Redshift: Unknown
Luminosity Distance: Unknown
Radio Spectrum: Flat
Gamma-ray Association LAT: Y, EGRET: N, TeV: N
Kpc-scale morphology: Core
Jet Speed: Maximum: 571 ± 33 μas/y ;
Median: N/A ;
based on 3 moving features
Lister et al. 2021, ApJ,923,30
Separation Versus Time Plot: PNG    PDF
Stacked 15 GHz Stokes I VLBA images:

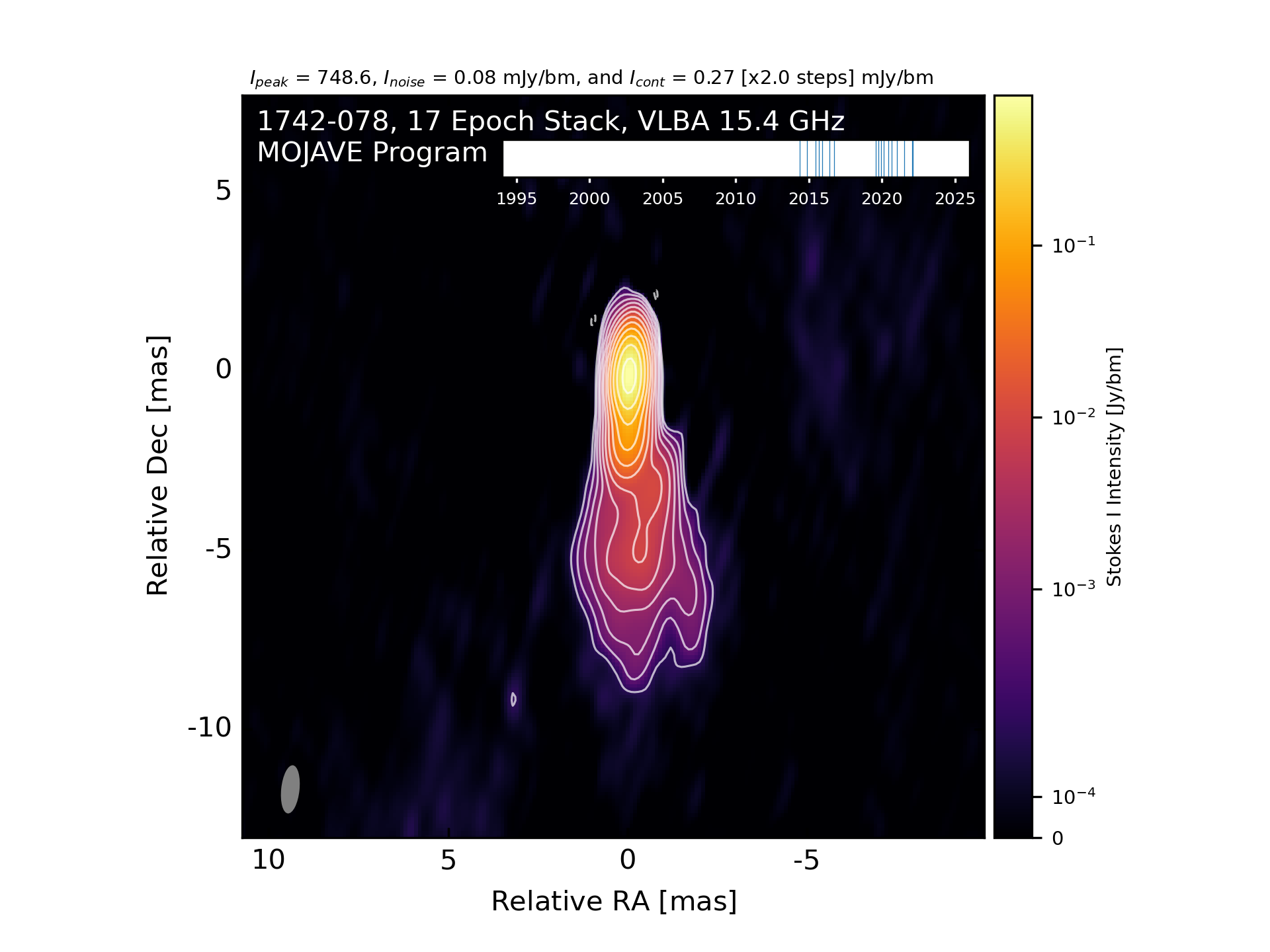

Natural weight:   PNG PDF FITS

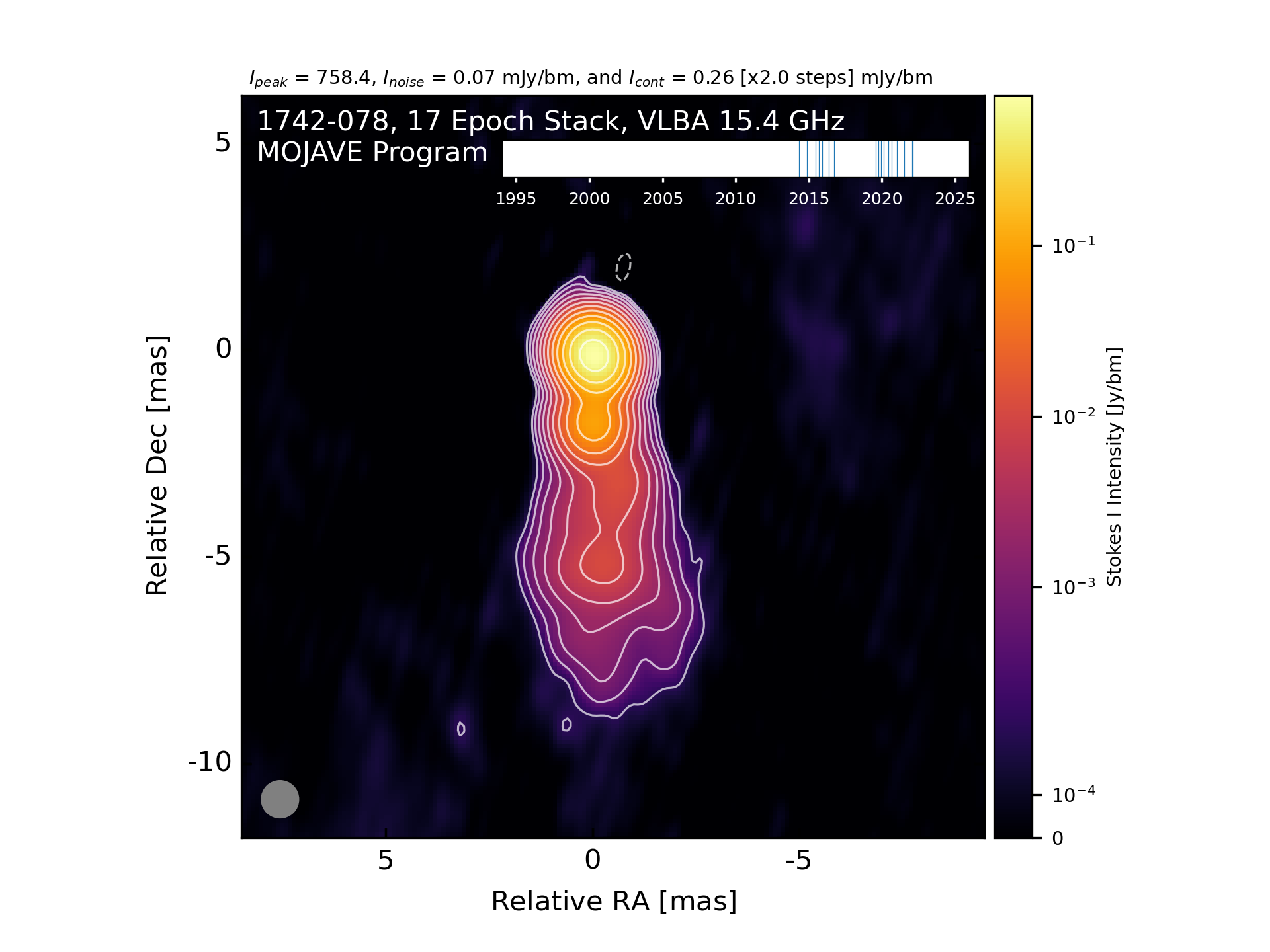

Circular Beam:   PNG PDF FITS
Tapered Beam:   PNG PDF FITS

Stacked 15 GHz Polarization VLBA images:

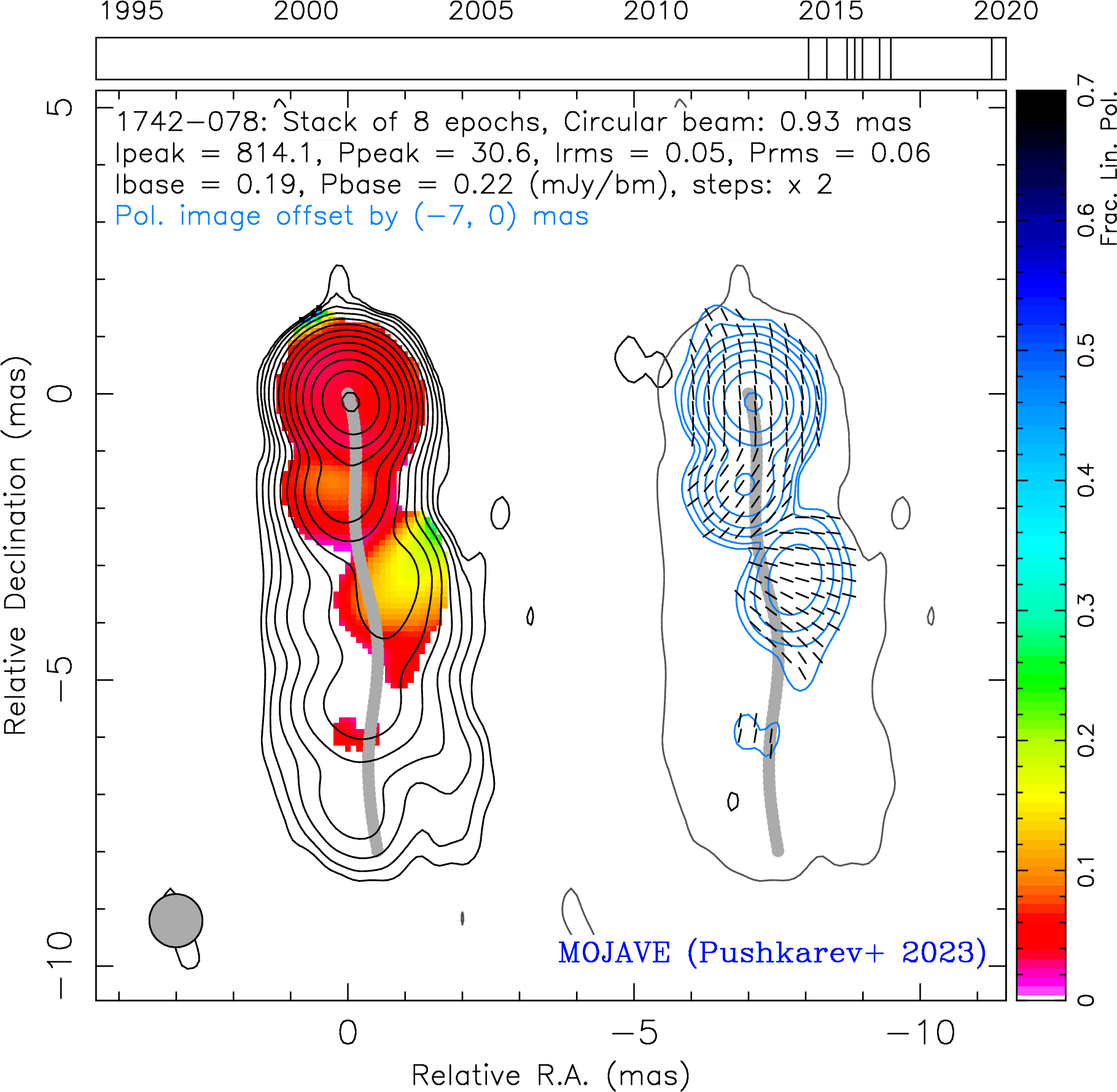

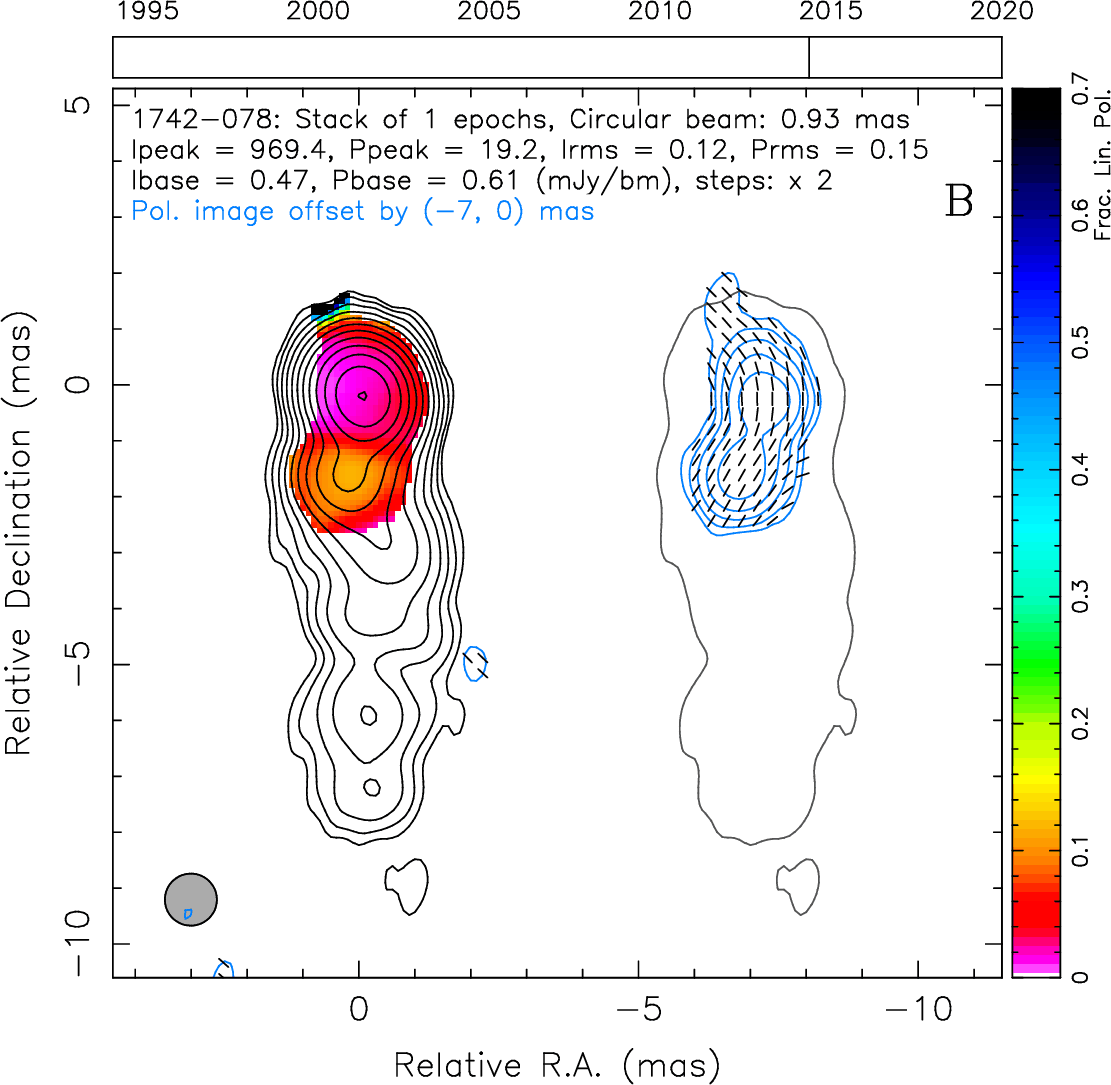

Method I:   Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS

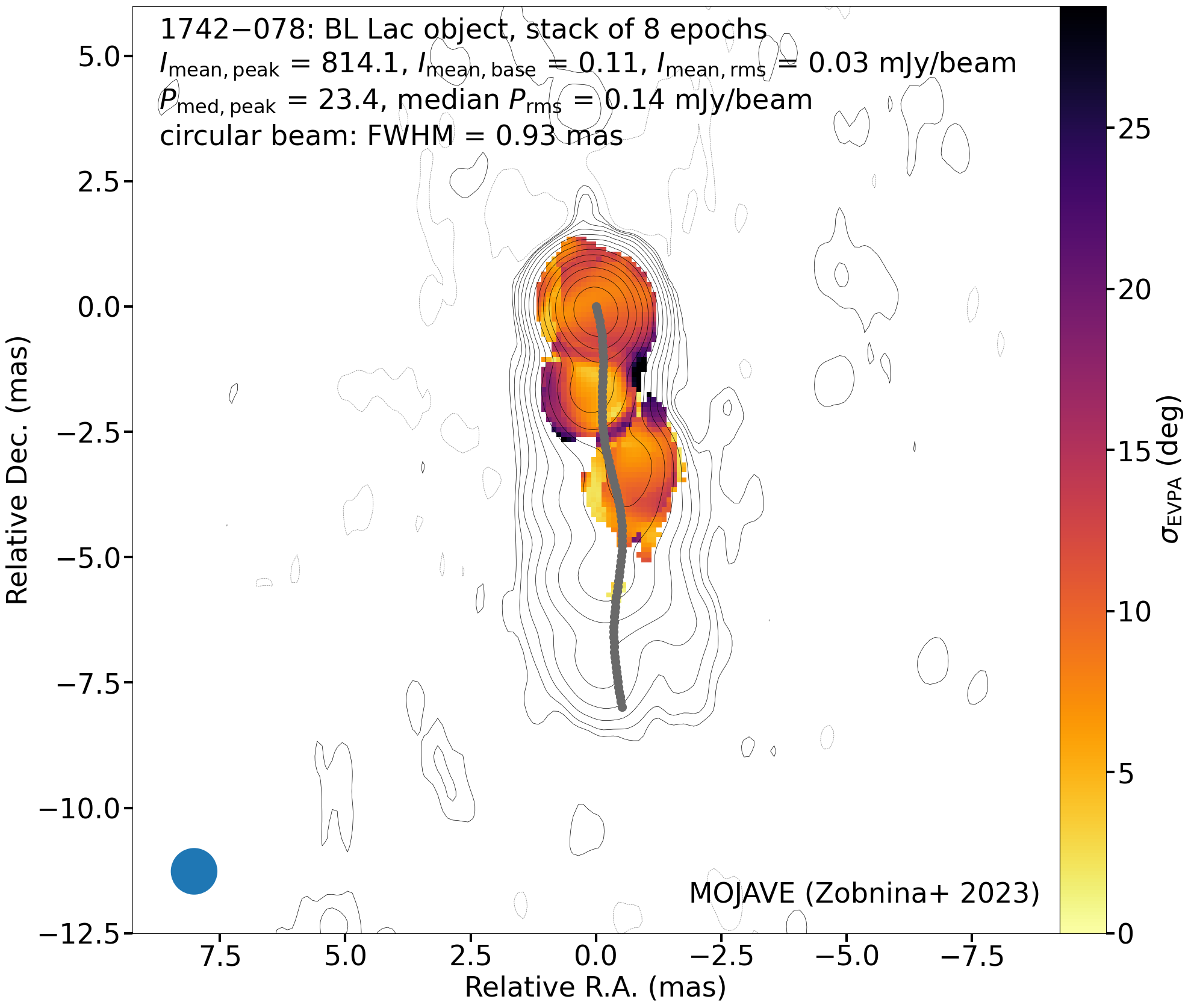

Method II:   std EVPA PNG, FITS

Rotation Measure 8-15 GHz Map: | Not available |

Spectral Index 8-15 GHz Map: | Not available |


VLBA 23 GHz: RRIFD Database
Kpc-scale: Healey et al. 2007, ApJS 171, 61

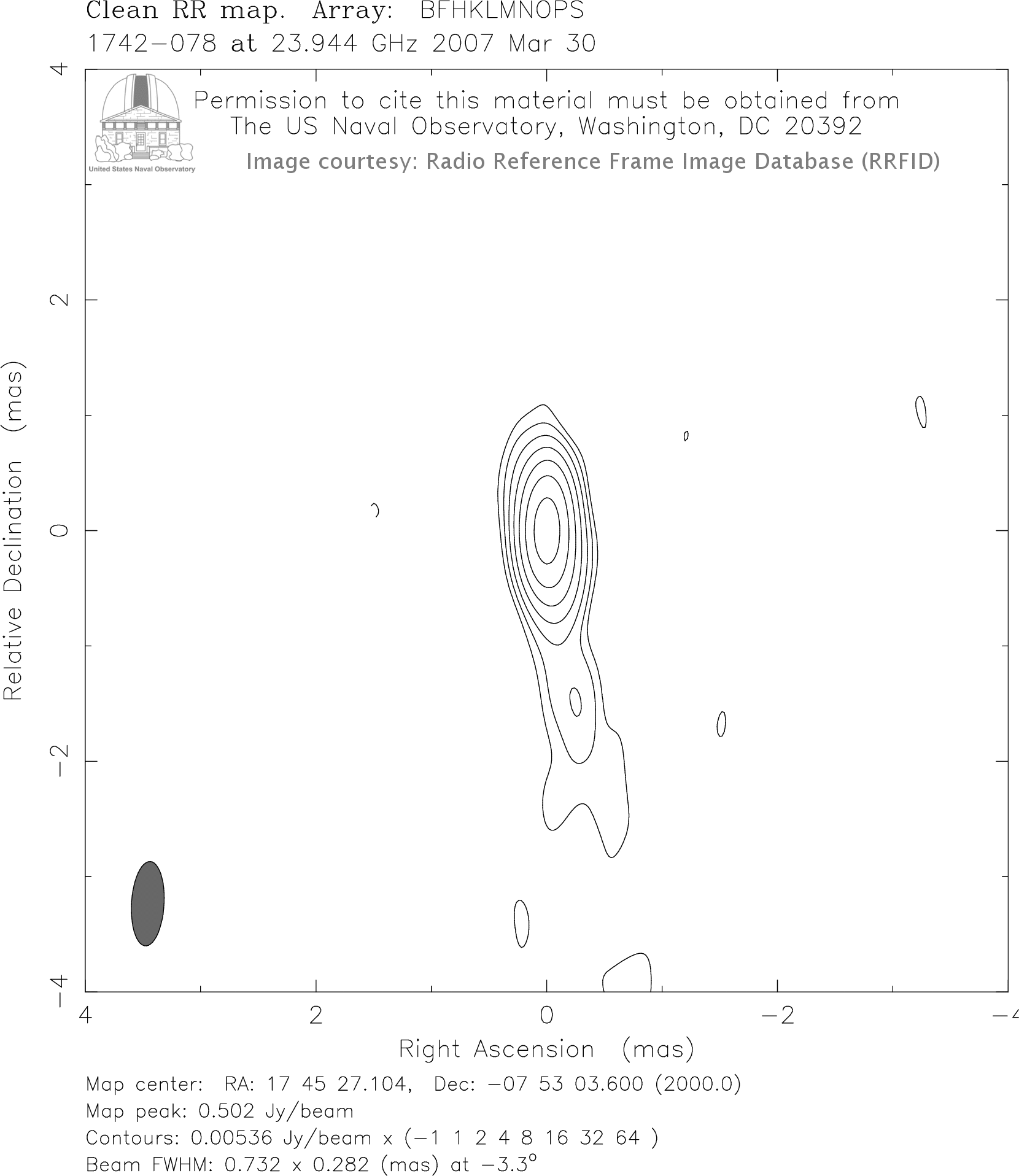

23 GHz Image
Kpc Image

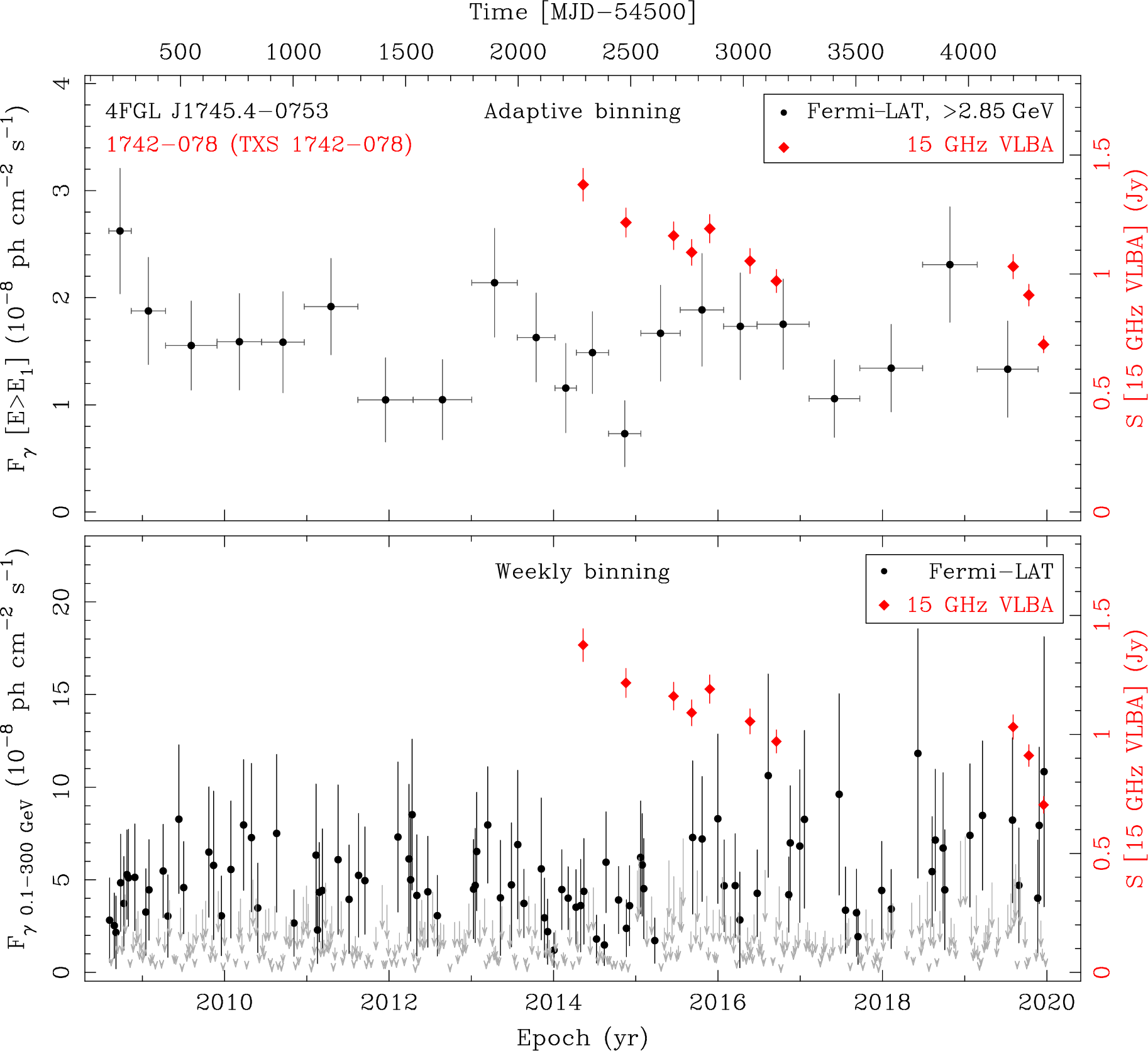

Fermi LAT and 15 GHz VLBA Light Curves

Fermi LAT and 15 GHz VLBA Light Curves
VLBA 43 GHz:
Multiepoch Radio Spectrum:

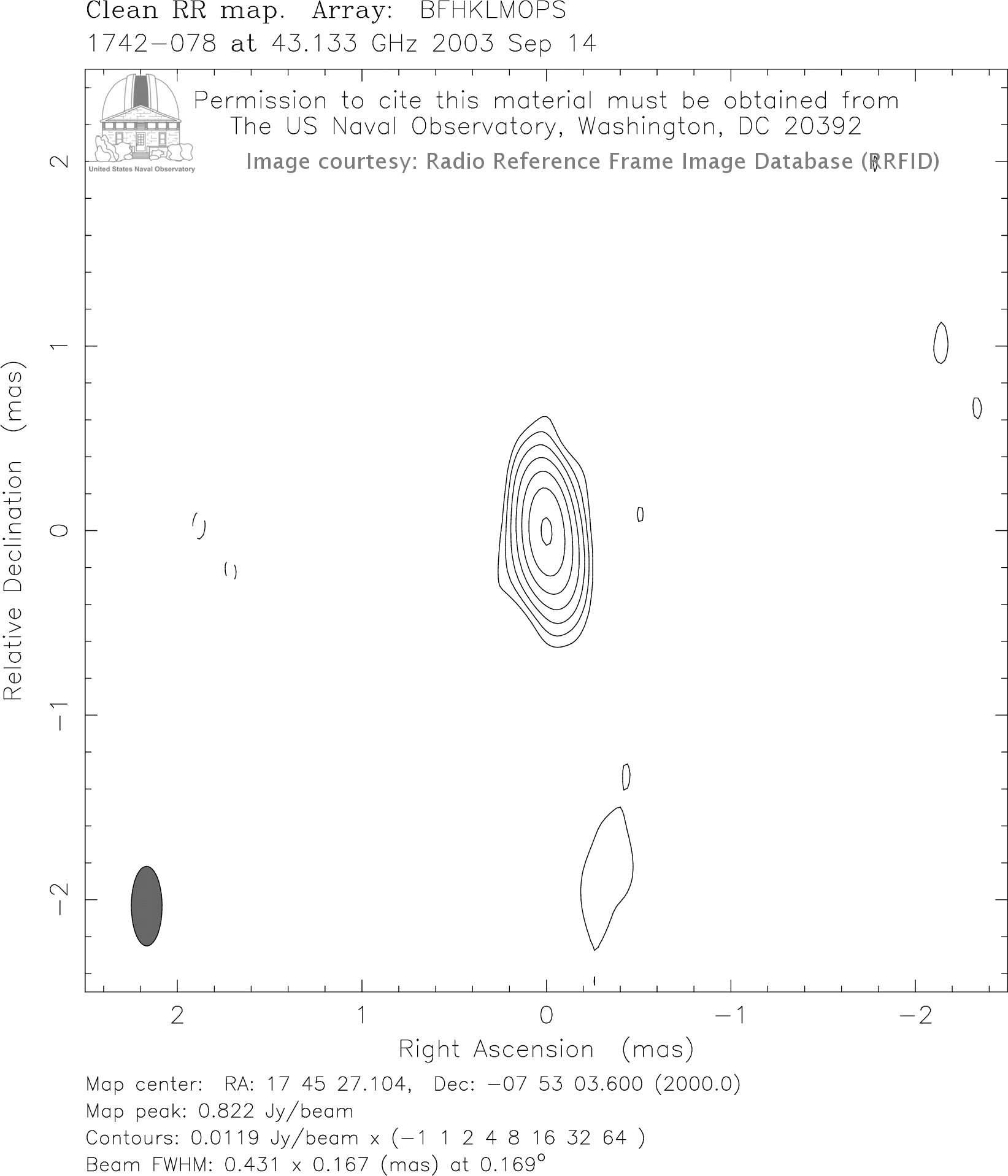

43 GHz Image
Radio Spectrum
Comments: Hard spectrum MOJAVE_4 source

If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"

Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Epoch
(YYYY-MM-DD)
VLBA Code VLBA I
(mJy)
VLBA P
(mJy)
VLBA
P (%)
VLBA
EVPA (deg.)
I Image (Nat. Weight) Visibility
Data
Stokes I Radplot Polarization
Full
Montage
queued BL286BF
2023-12-15 * BL286BB 800 29 3.6 81 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2023-07-01 * BL286AX 698 31 4.5 88 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2022-12-31 * BL286AQ 682 17 2.5 114 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2022-05-21 BL286AK 1019 57 5.6 159 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2022-02-07 BL286AG 925 27 2.9 152 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2022-01-22 BL286AF 932 37 3.9 139 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2021-07-04 BL273L 1309 11 0.8 78 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2021-01-11 BL273I 1318 50 3.8 7 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2020-08-30 BL229BI 930 39 4.2 43 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2020-06-08 BL273F 848 26 3.1 17 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2020-02-16 BL273D 804 33 4.1 6 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2019-12-17 BL273C 817 33 4.0 28 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2019-10-11 BL273B 1003 61 6.1 7 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2019-08-04 BL273A 1016 59 5.8 10 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2016-09-17 BL193BJ 969 32 3.3 1 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2016-05-23 BL193BD 1038 34 3.3 0 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2015-11-25 BL193AY 1197 46 3.9 164 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2015-09-06 BL193AW 1094 51 4.7 6 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2015-06-16 BL193AT 1161 40 3.5 10 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-11-17 BL193AO 1200 17 1.4 6 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2014-05-12 BL193AI 1366 35 2.5 168 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
