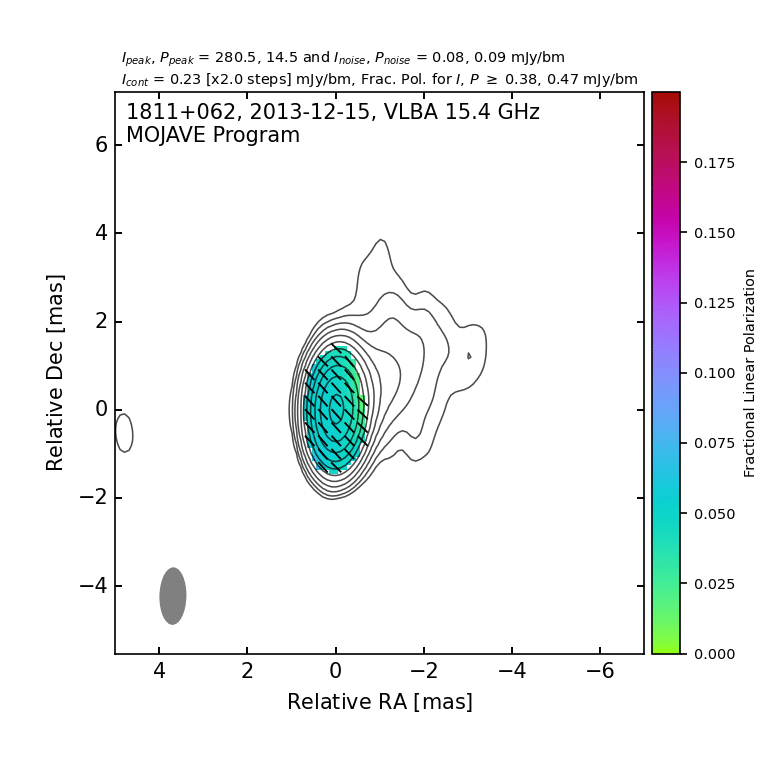

| Common Name: | TXS 1811+062 | MOJAVE 15 GHz [Total intensity movie] | [Polariz. movie] | VLBA 1.4 GHz: |
| B1950 Name: | 1811+062 |  |
 |
| J2000 Name: | J1813+0615 | ||
| R.A. and Dec. (J2000): | 18h13m33.412s +6d15'42.034" |
||
| AGN Class: | ISP BL Lac | ||
| Redshift: | Unknown | Luminosity Distance: | Unknown |
| Radio Spectrum: | Flat | ||
| Gamma-ray Association | LAT: Y, EGRET: N, TeV: N | ||
| Kpc-scale morphology: | Core | ||
| Jet Speed: | Maximum: Unknown ; Median: Unknown ; |
||

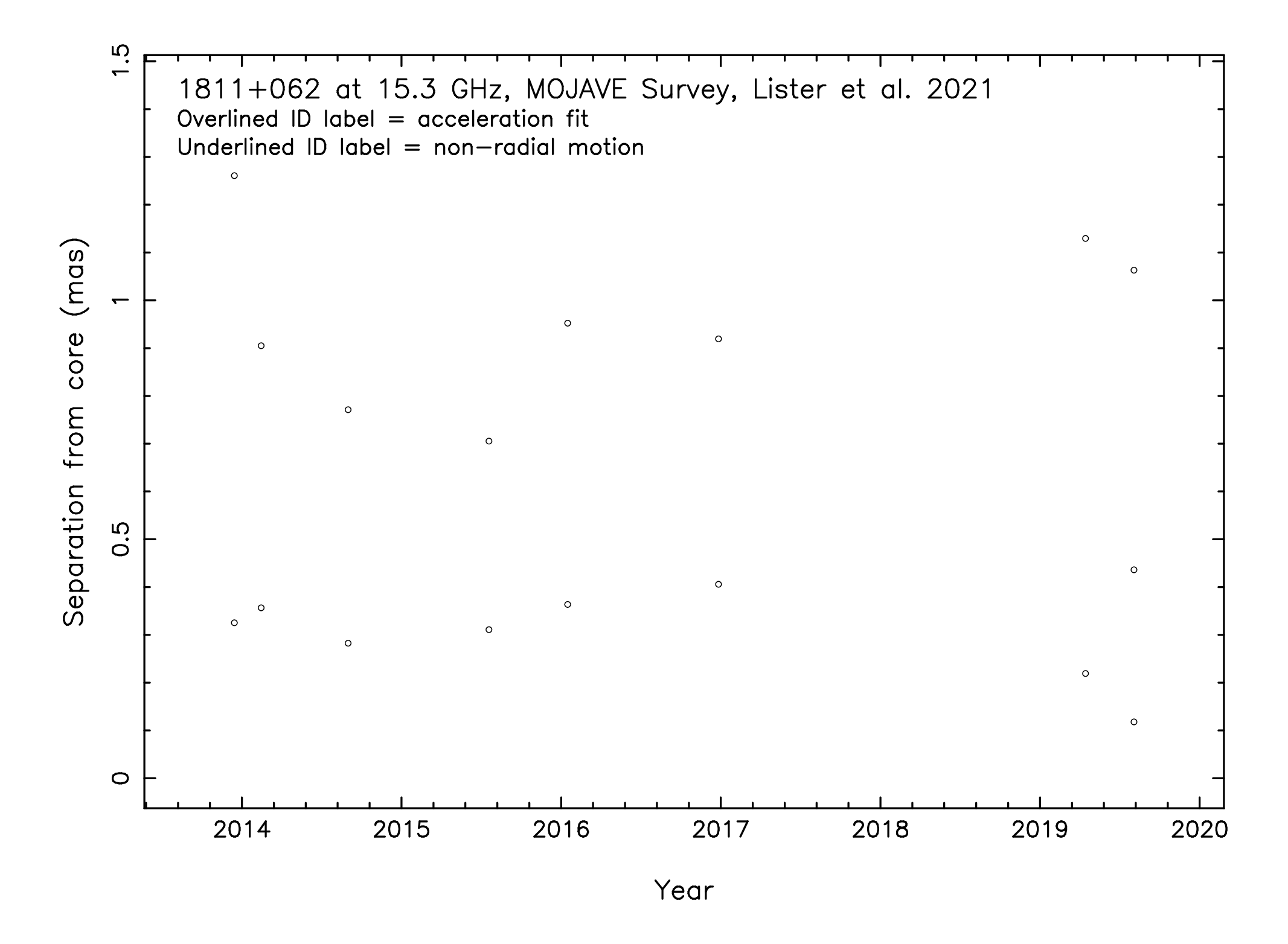

| Separation Versus Time Plot: | PNG PDF | ||

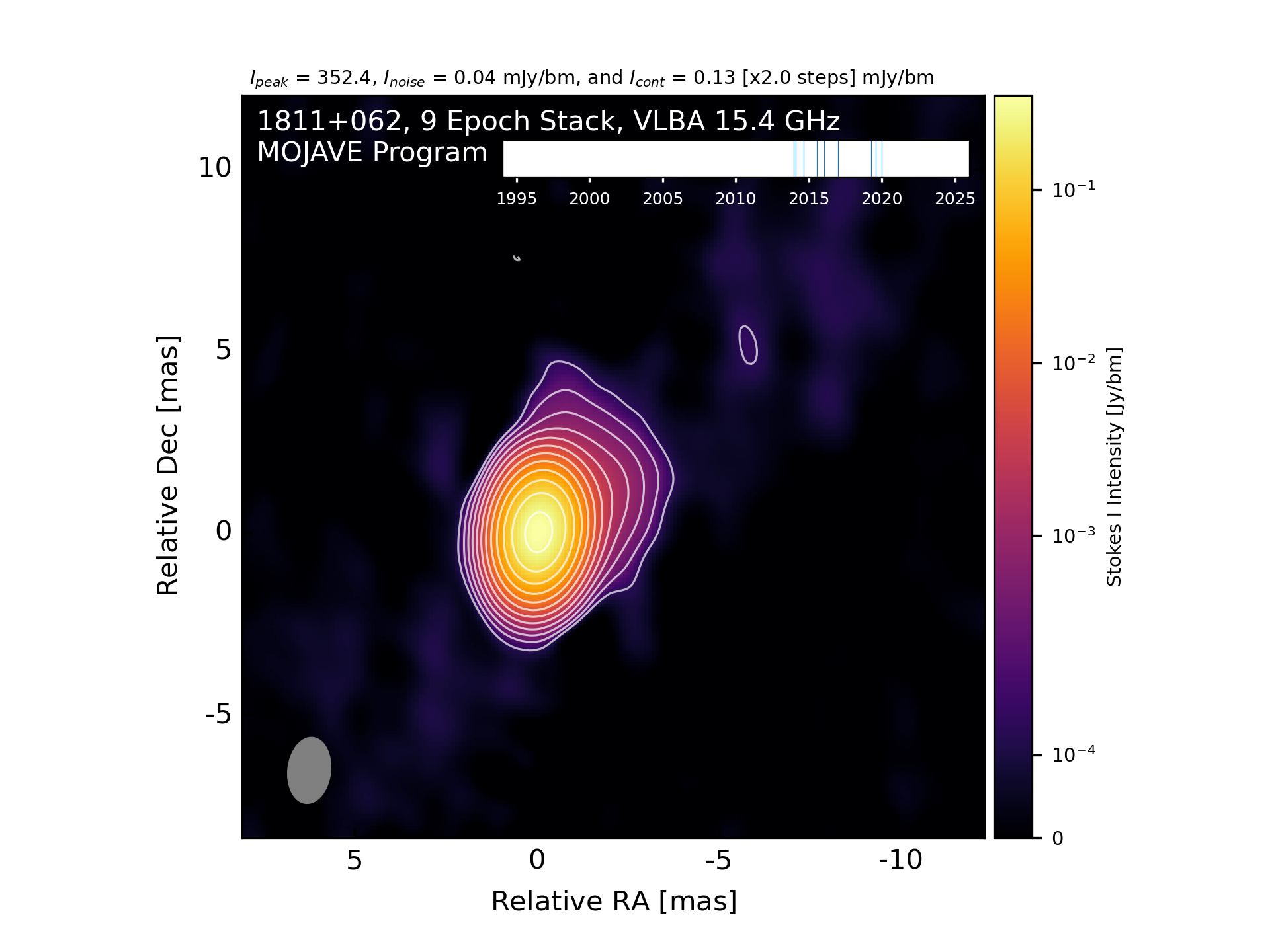

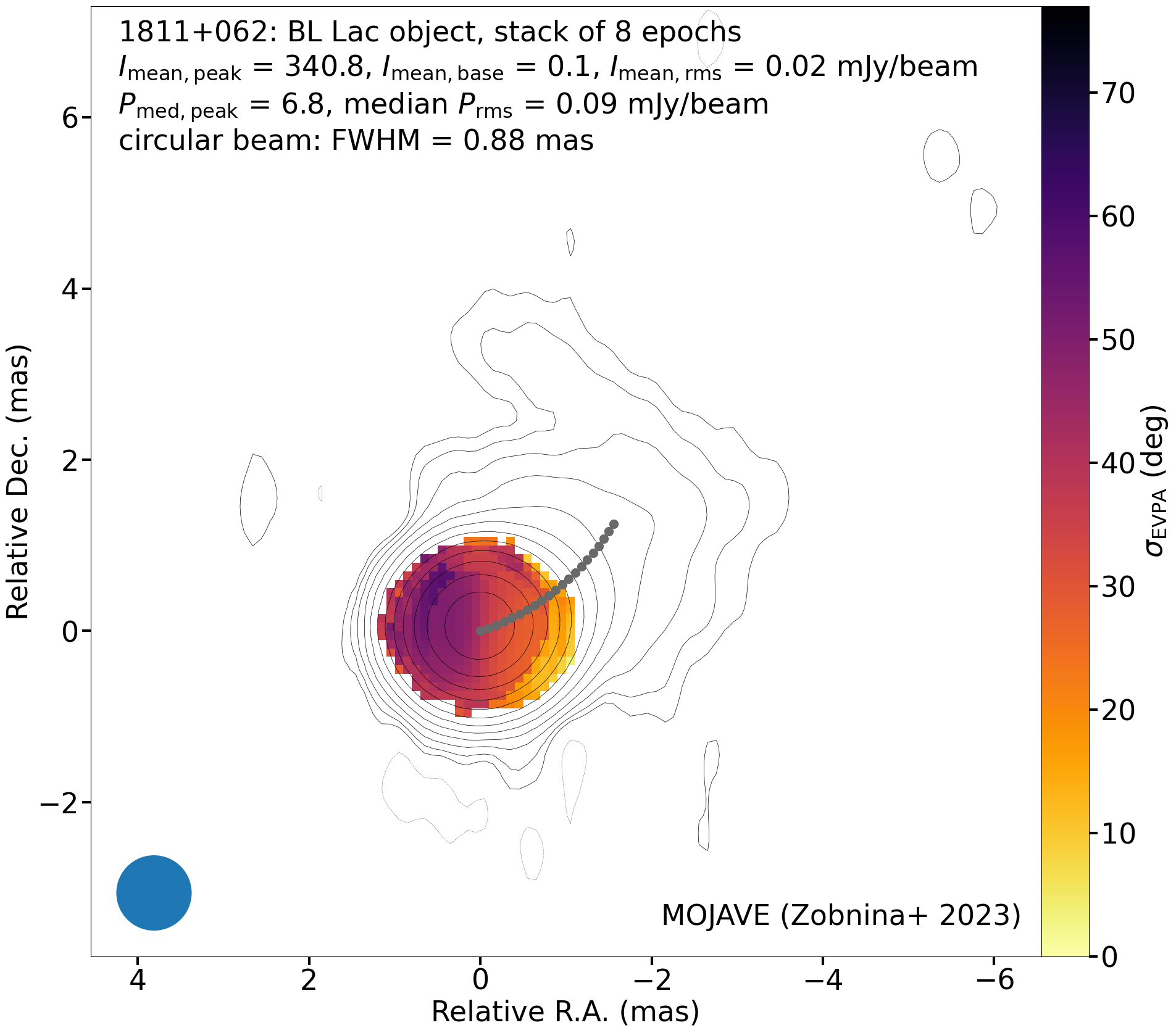

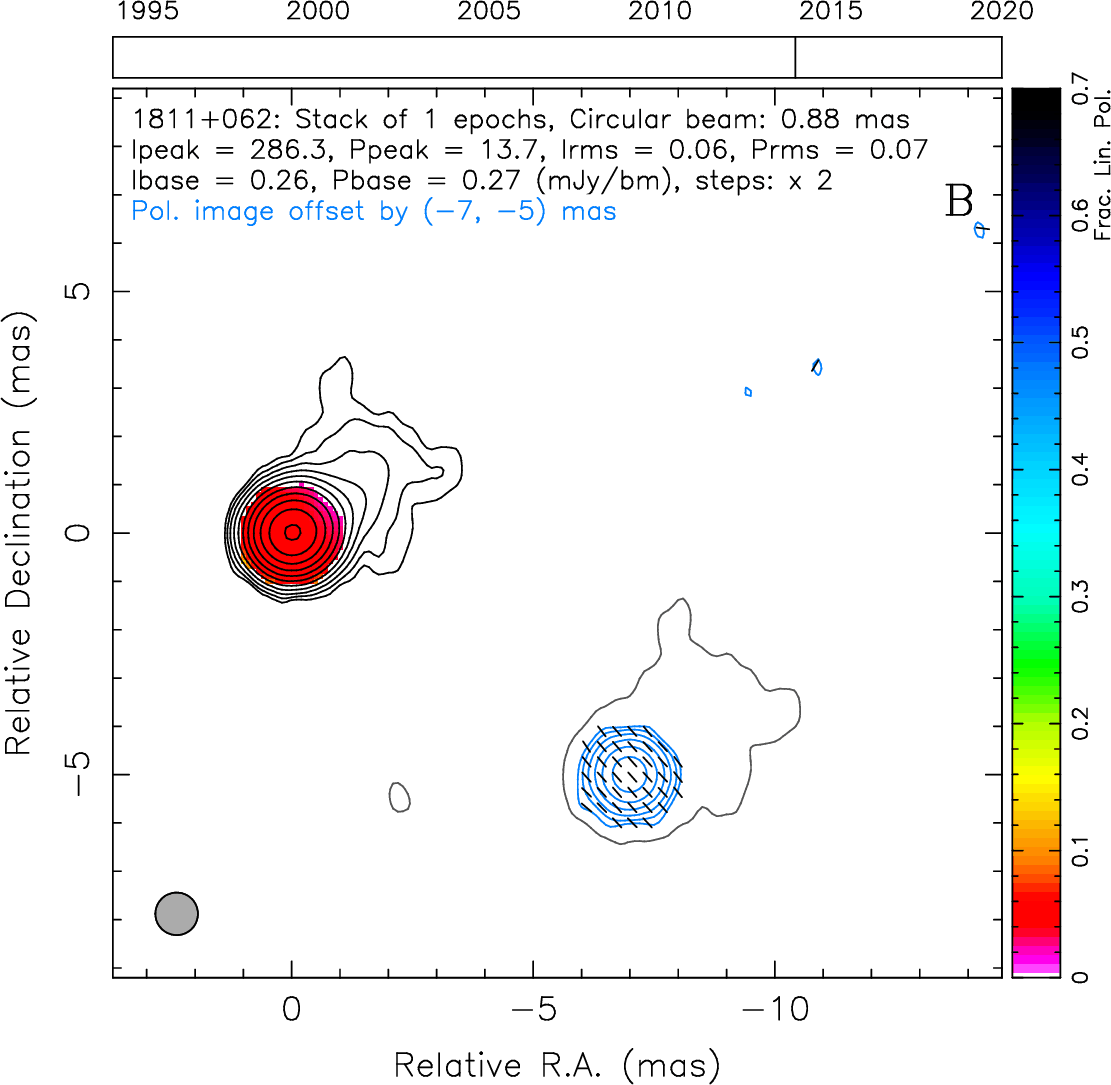

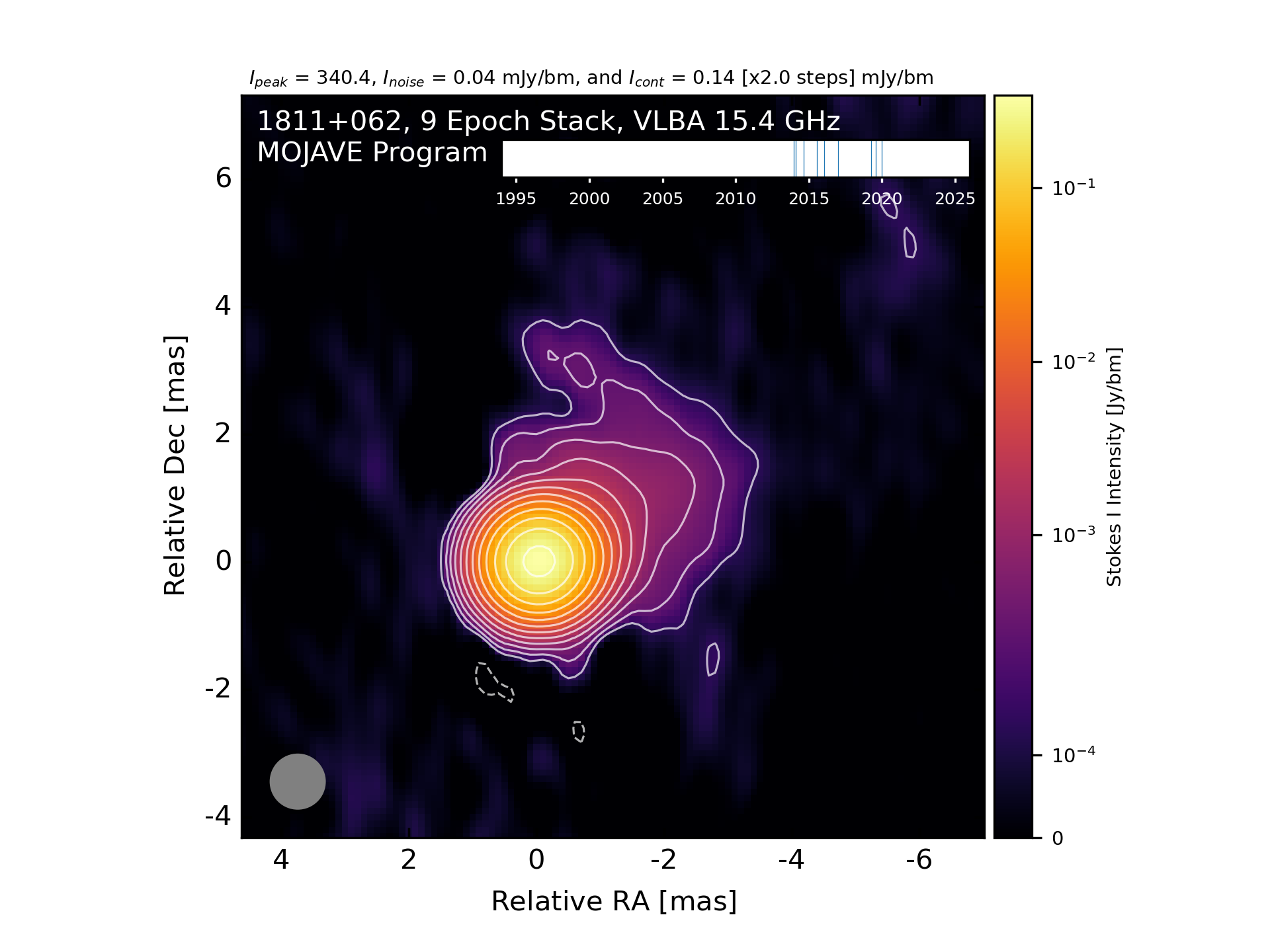

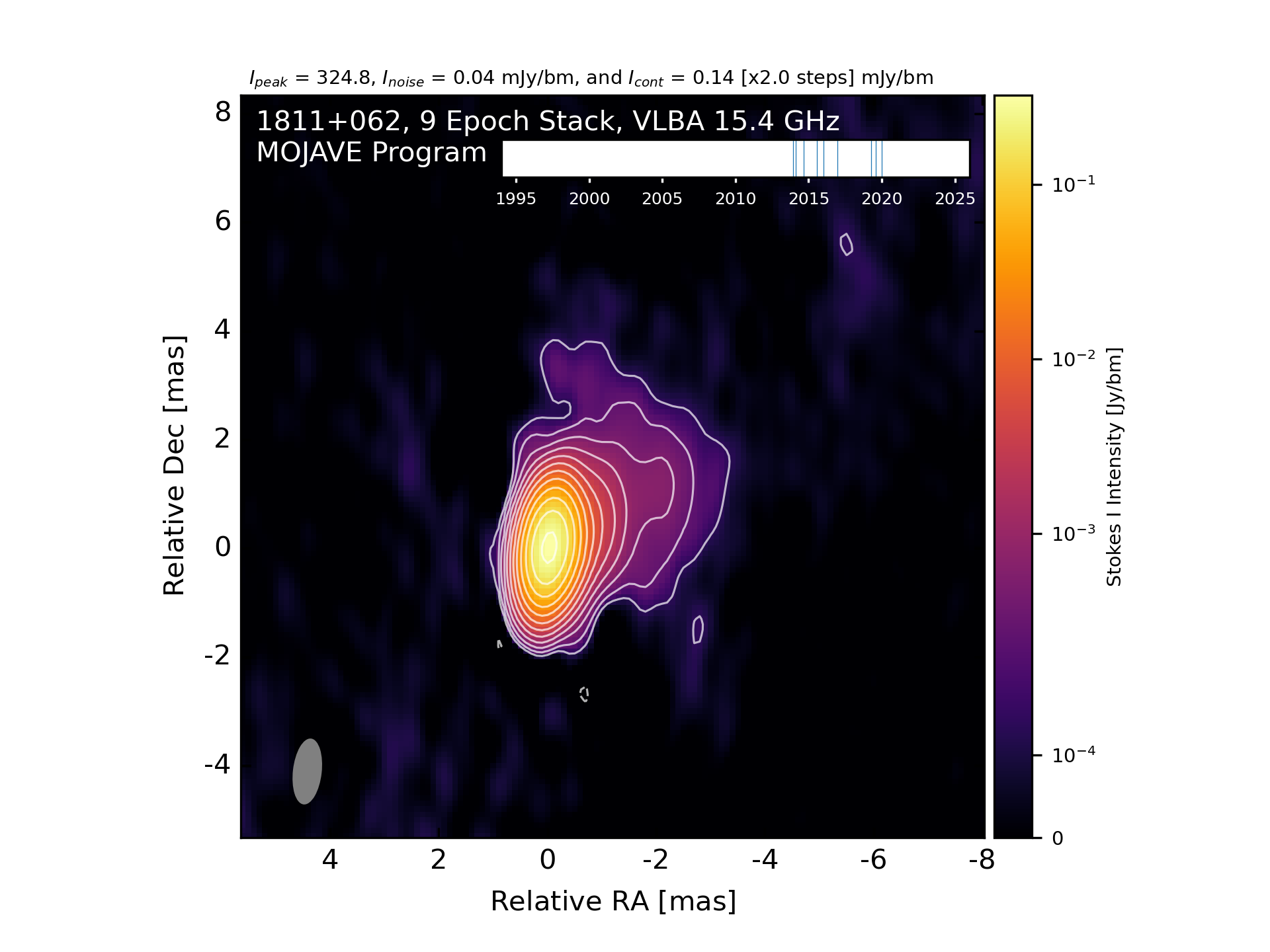

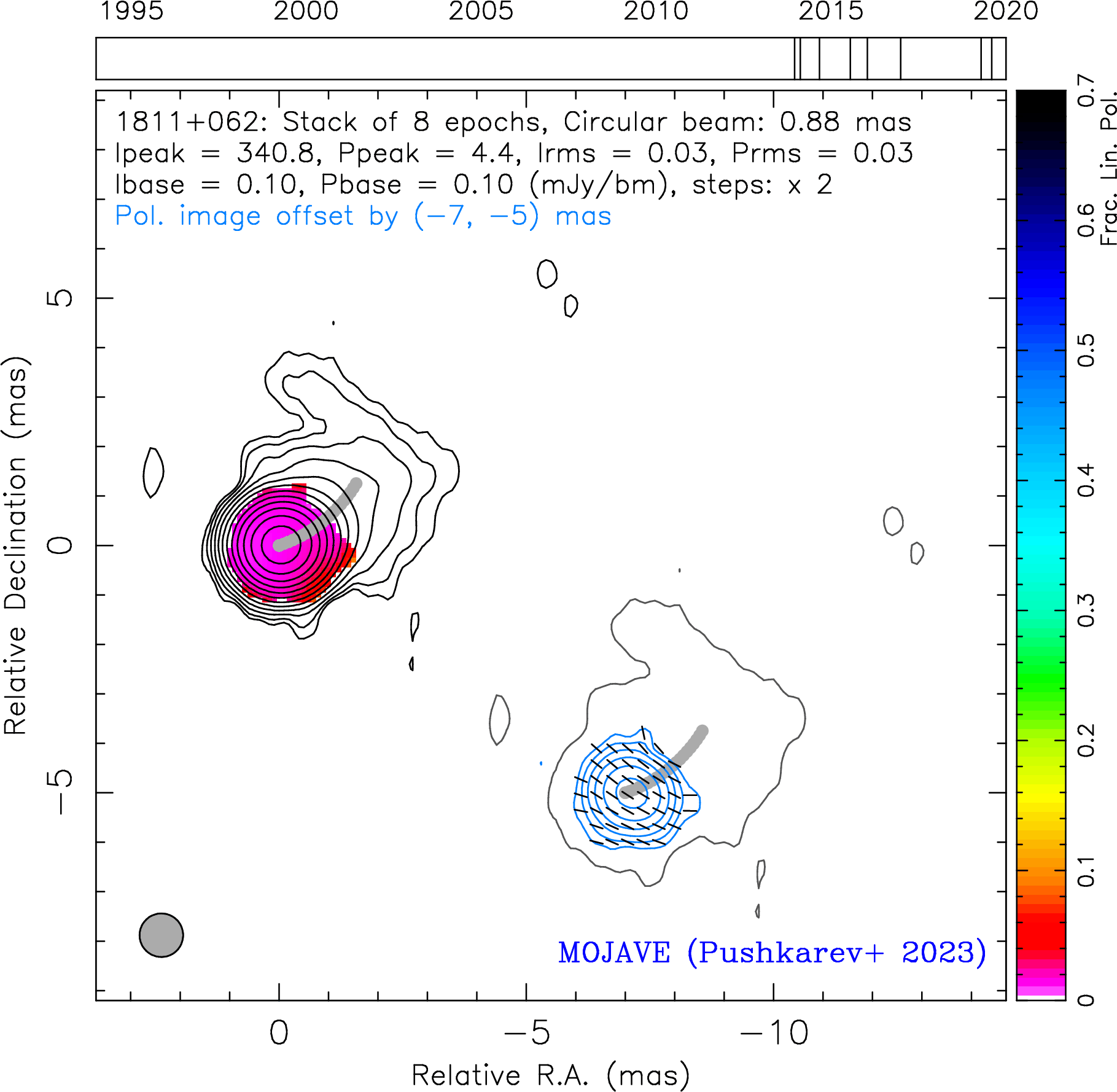

| Stacked 15 GHz Stokes I VLBA images: Natural weight: PNG PDF FITS Circular Beam: PNG PDF FITS Tapered Beam: PNG PDF FITS Stacked 15 GHz Polarization VLBA images: Method I: Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS Method II: std EVPA PNG, FITS Rotation Measure 8-15 GHz Map: | Not available | Spectral Index 8-15 GHz Map: | Not available | |
VLBA 23 GHz: |
Kpc-scale: Healey et al. 2007, ApJS 171, 61 | |
|
|
||

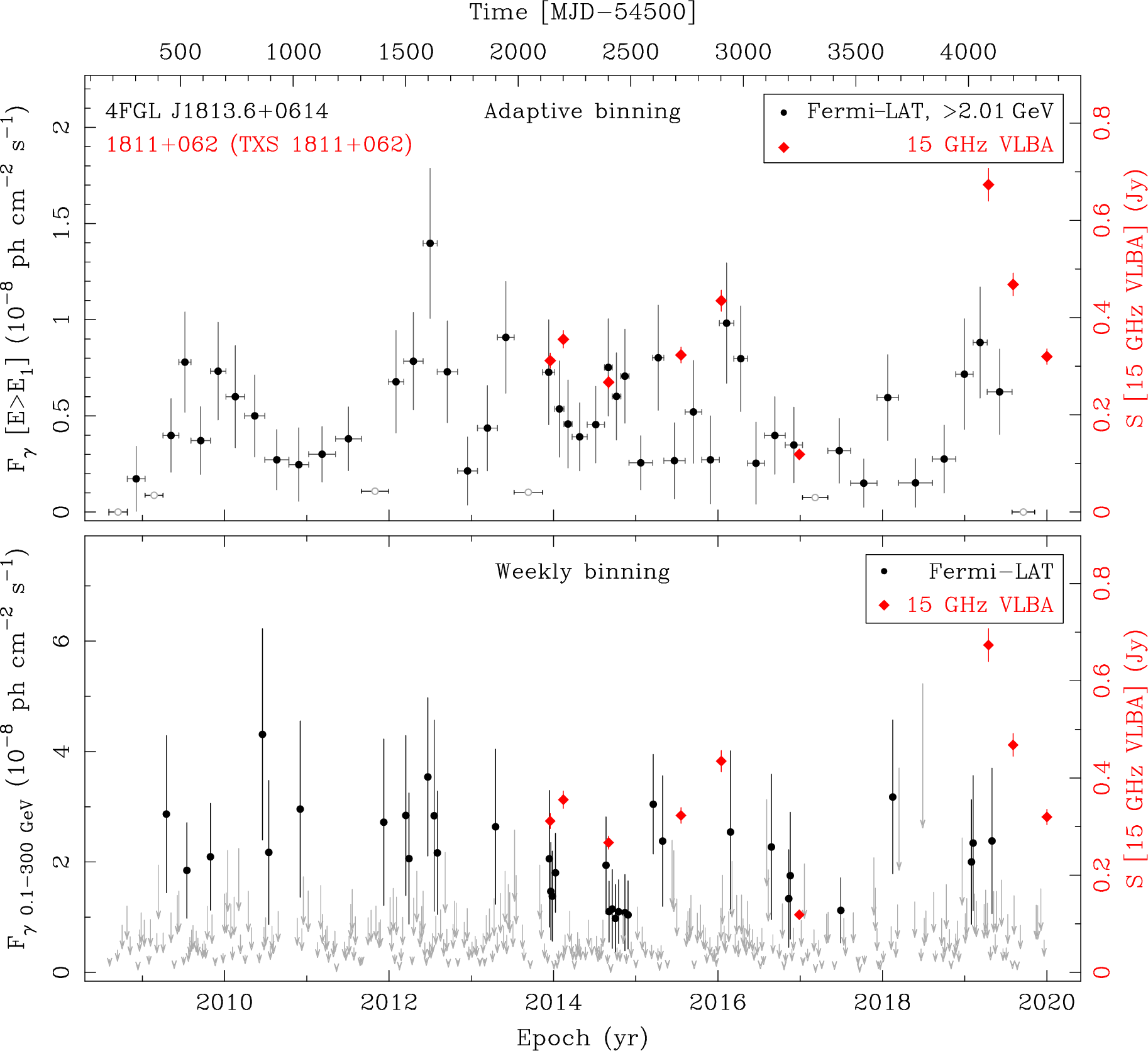

Fermi LAT and 15 GHz VLBA Light Curves |
VLBA 43 GHz: |

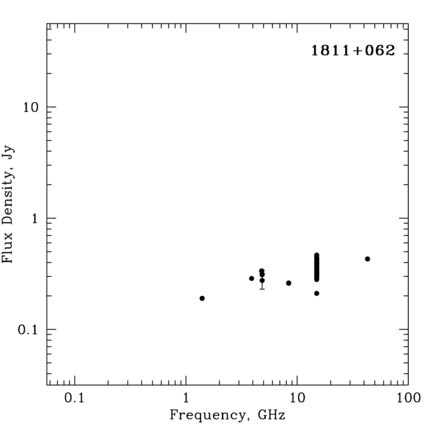

Multiepoch Radio Spectrum: |
|
|---|---|---|---|
|
 |
||
| Comments: | Hard spectrum MOJAVE_4 source | ||
If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
| Epoch (YYYY-MM-DD) | VLBA Code | VLBA I (mJy) |
VLBA P (mJy) |
VLBA P (%) |
VLBA EVPA (deg.) |
Stokes I Image (Nat. weight) |
Visibility Data |
Stokes I Radplot | Polarization Image (Nat. weight) |
Full Montage |
2019-12-31 | BL229BD | 371 | 4.9 | 1.3 | 75 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-08-04 | BL273A | 472 | 12 | 2.6 | 91 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2019-04-15 | BL229AV | 679 | 11 | 1.6 | 157 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2016-12-26 | BL193BN | 118 | 1.3 | 1.1 | 61 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2016-01-16 | BL193BA | 436 | 7.6 | 1.7 | 113 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2015-07-20 | BL193AU | 326 | 2.0 | 0.6 | 94 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-09-01 | BL193AN | 270 | 8.0 | 3.0 | 55 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2014-02-14 | BL193AF | 359 | 30 | 8.4 | 56 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2013-12-15 | BL193AA | 313 | 14 | 4.5 | 42 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG |
