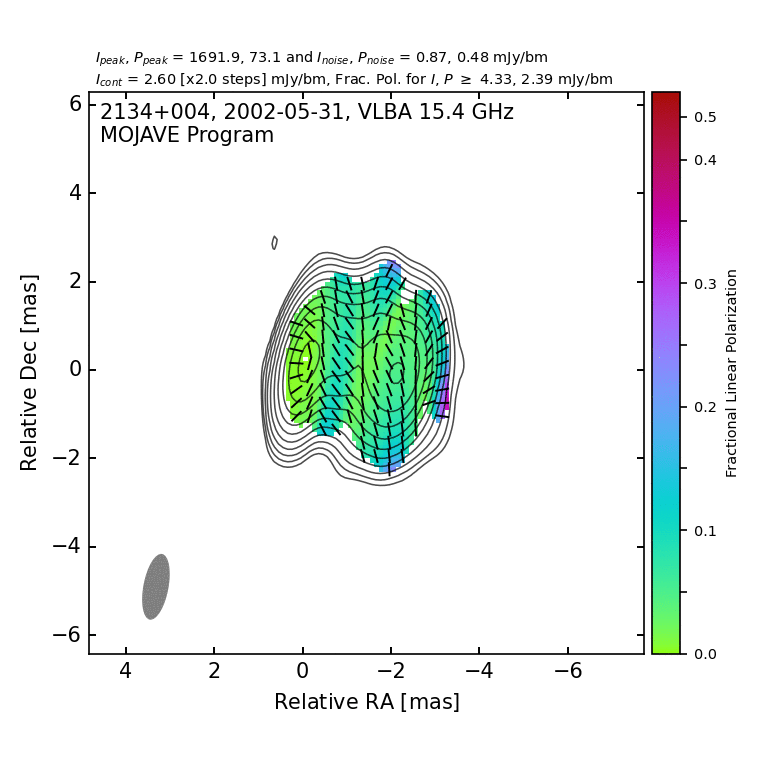

| Common Name: | PKS 2134+004 | MOJAVE 15 GHz [Total intensity movie] | [Polariz. movie] | VLBA 1.4 GHz: BG246 |
||||||||||||||||||
| B1950 Name: | 2134+004 |  |
 |
||||||||||||||||||
| J2000 Name: | J2136+0041 | ||||||||||||||||||||
| R.A. and Dec. (J2000): | 21h36m38.586s +0d41'54.213" |
||||||||||||||||||||
| AGN Class: | LSP LPQ | ||||||||||||||||||||
| Redshift: | 1.94 (2010AJ....139.2360S) | Luminosity Distance: | 15154 Mpc ; 8.50 pc/mas | ||||||||||||||||||
| Radio Spectrum: | Flat | ||||||||||||||||||||
| Gamma-ray Association | LAT: Y, EGRET: N, TeV: N | ||||||||||||||||||||
| Kpc-scale morphology: | One-sided Halo | ||||||||||||||||||||
| Jet Speed: | Maximum: 59 ± 3 μas/y ; 4.80 ± 0.28 c Median: N/A ; based on 4 moving features Lister et al. 2019, ApJ,874,43 |
||||||||||||||||||||

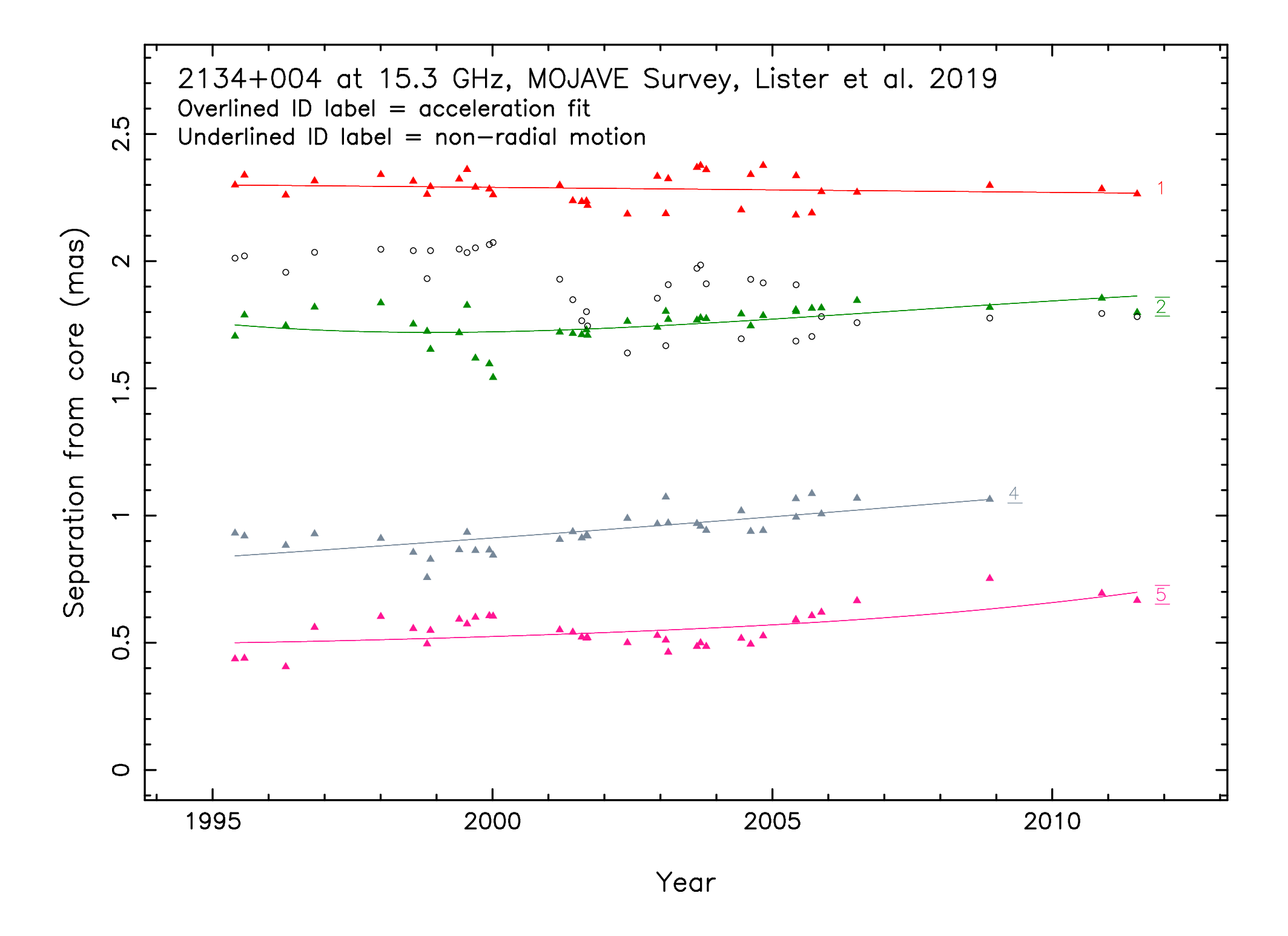

| Separation Versus Time Plot: | PNG PDF | ||||||||||||||||||||

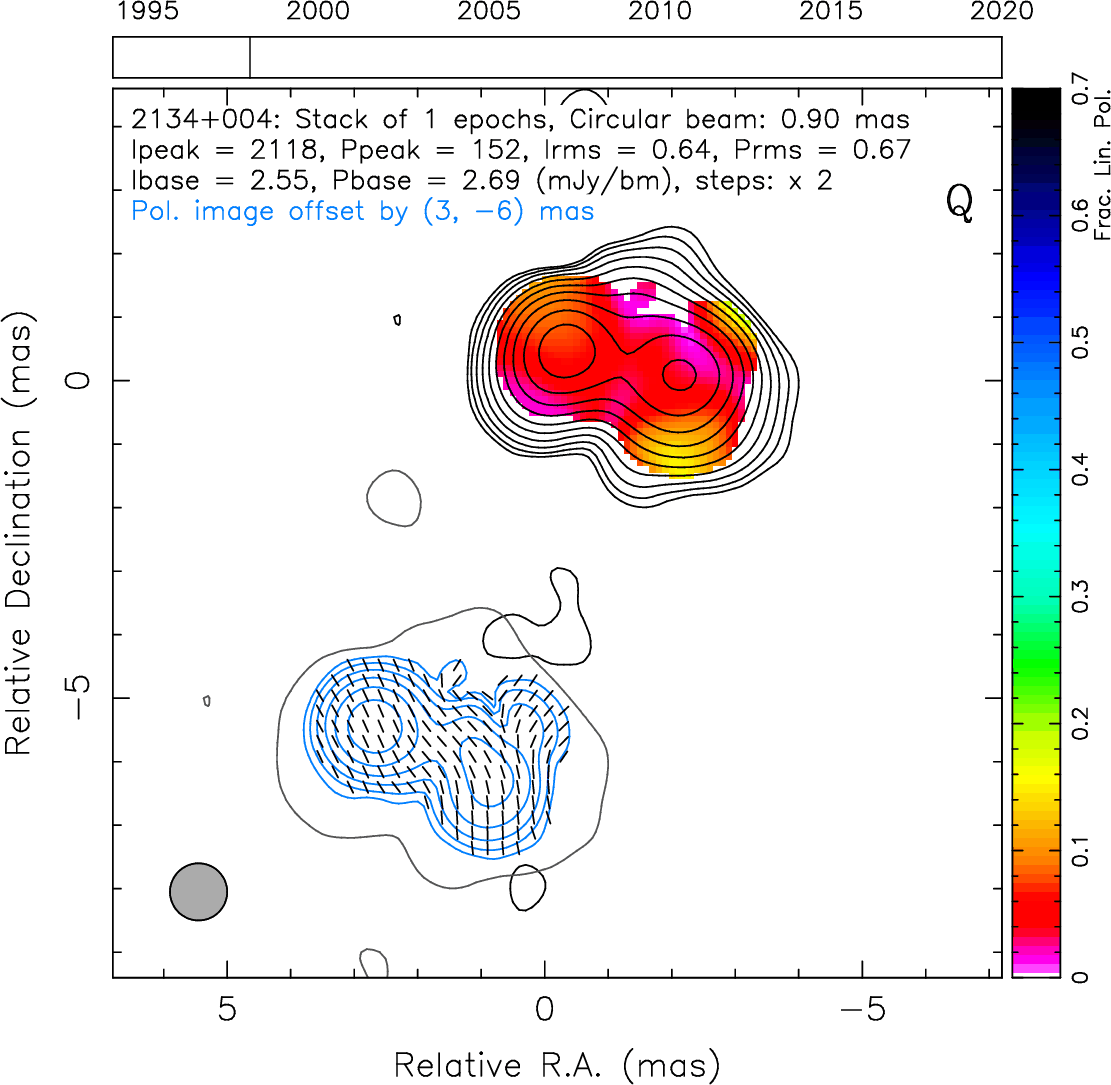

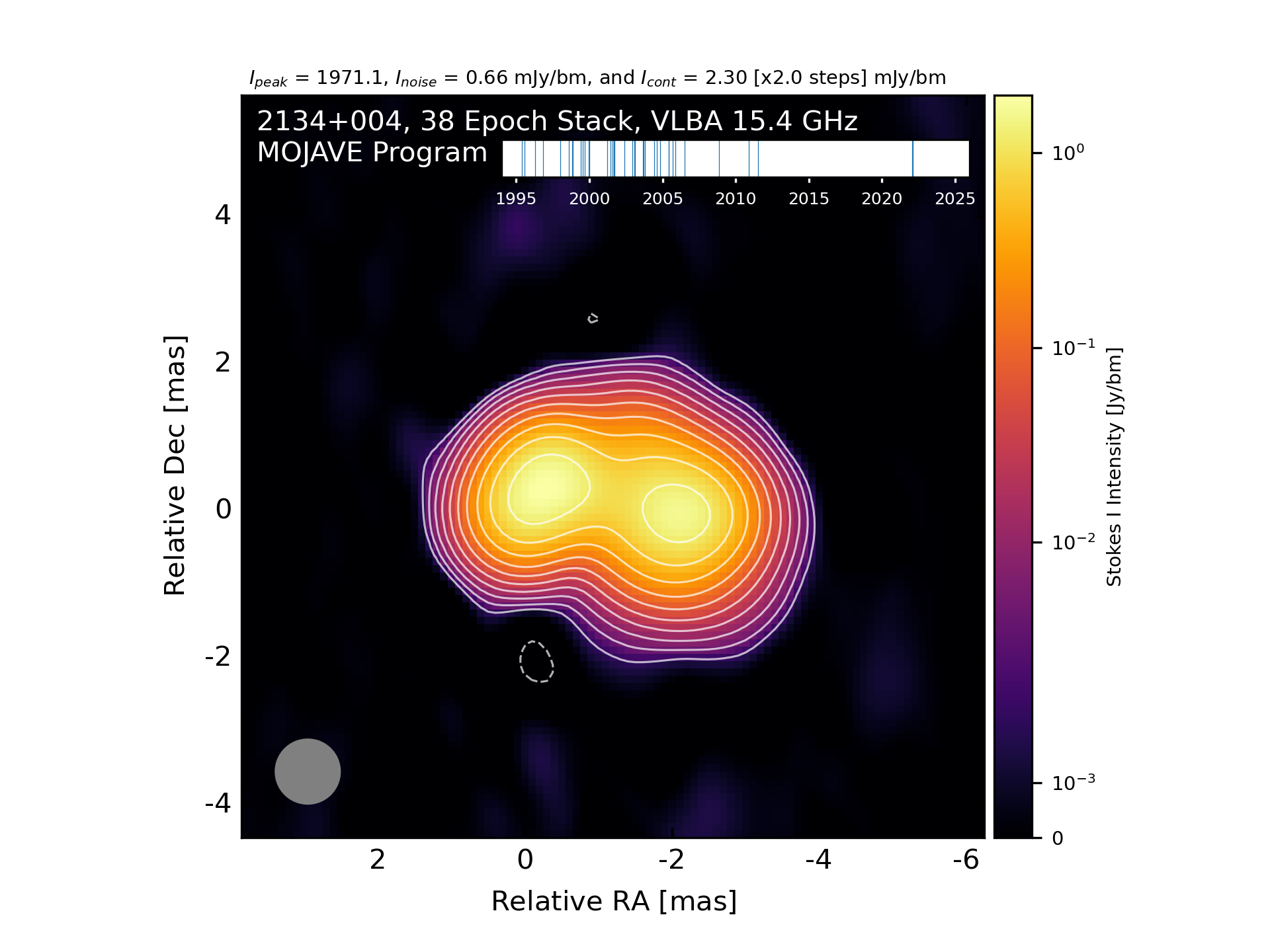

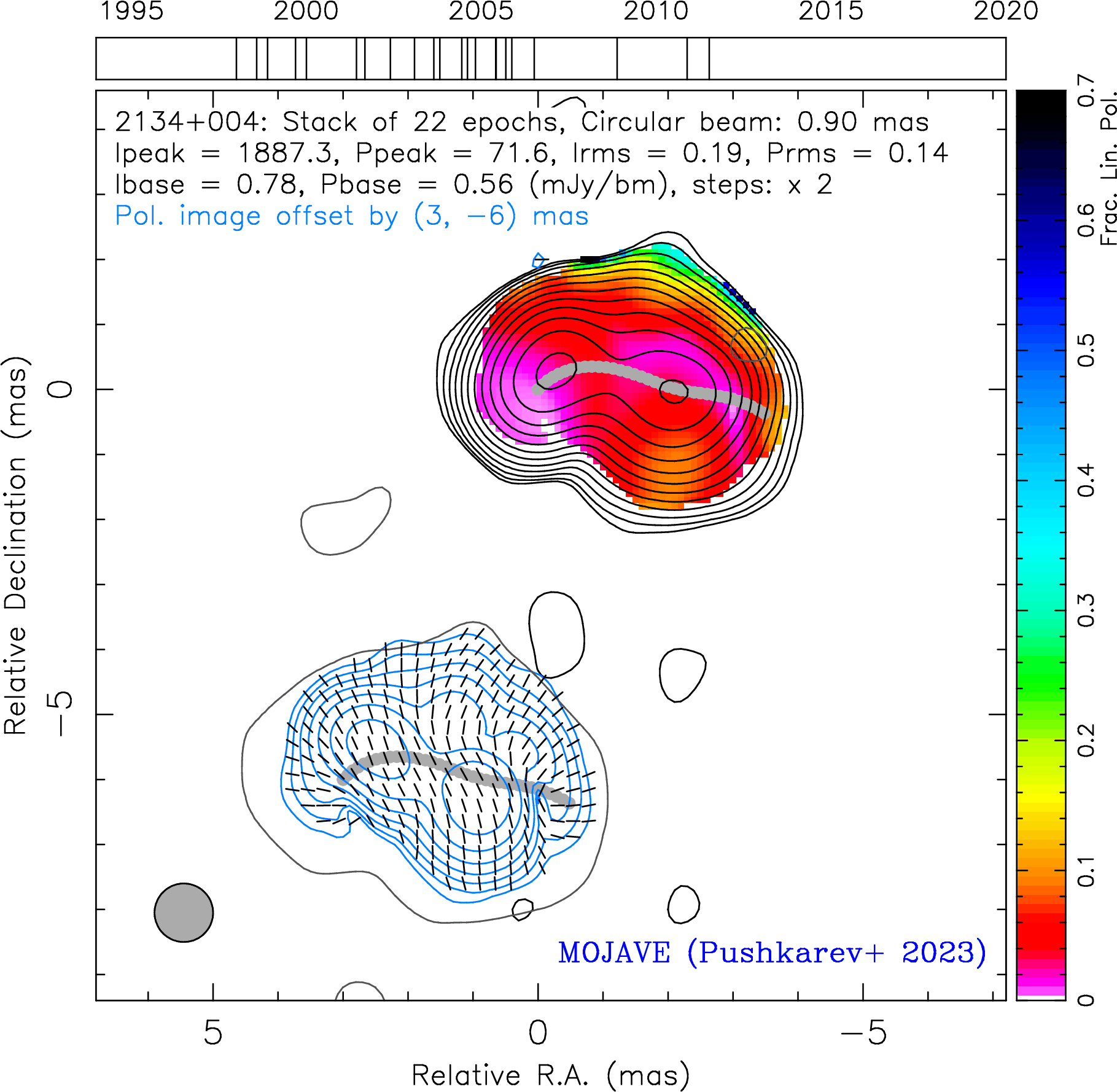

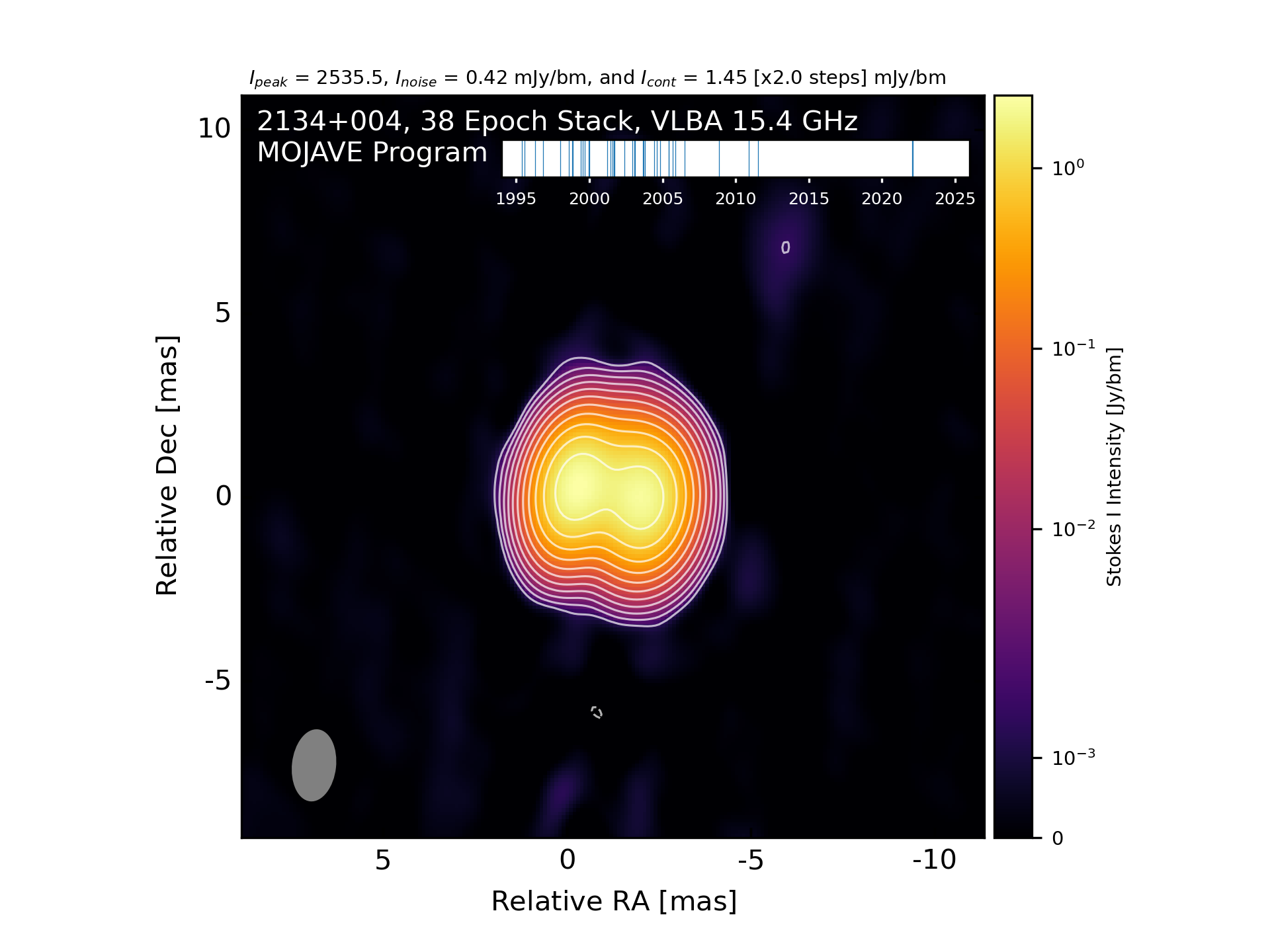

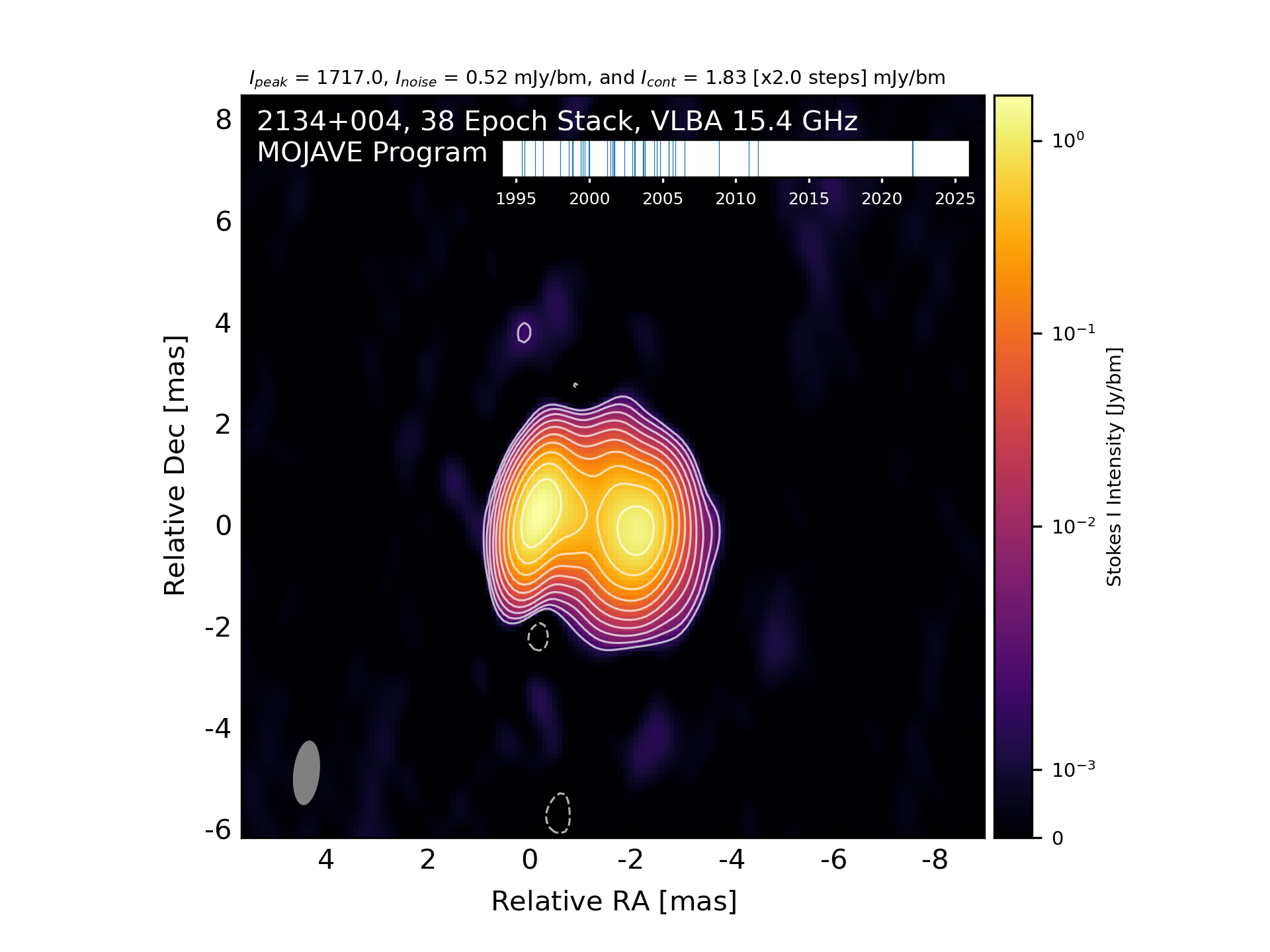

| Stacked 15 GHz Stokes I VLBA images: Natural weight: PNG PDF FITS Circular Beam: PNG PDF FITS Tapered Beam: PNG PDF FITS Stacking for 1994-2015: FITS Stacked 15 GHz Polarization VLBA images: Method I: Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS Method II: std EVPA PNG, FITS Rotation Measure 8-15 GHz Map: | 2006_07_07 | Spectral Index 8-15 GHz Map: | 2006_07_07 | Multifrequency MOJAVE VLBA Data:
Univ. College Cork VLBA L Band Data:
|

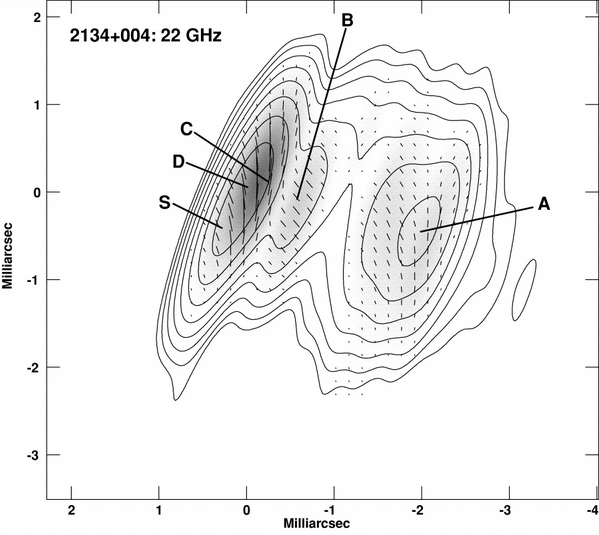

VLBA 23 GHz: Lister and Smith 2000, ApJ 541,66 |
Kpc-scale: Stanghellini et al. 2005, AA, 443, 891 | |||||||||||||||||||
 |
 |
||||||||||||||||||||

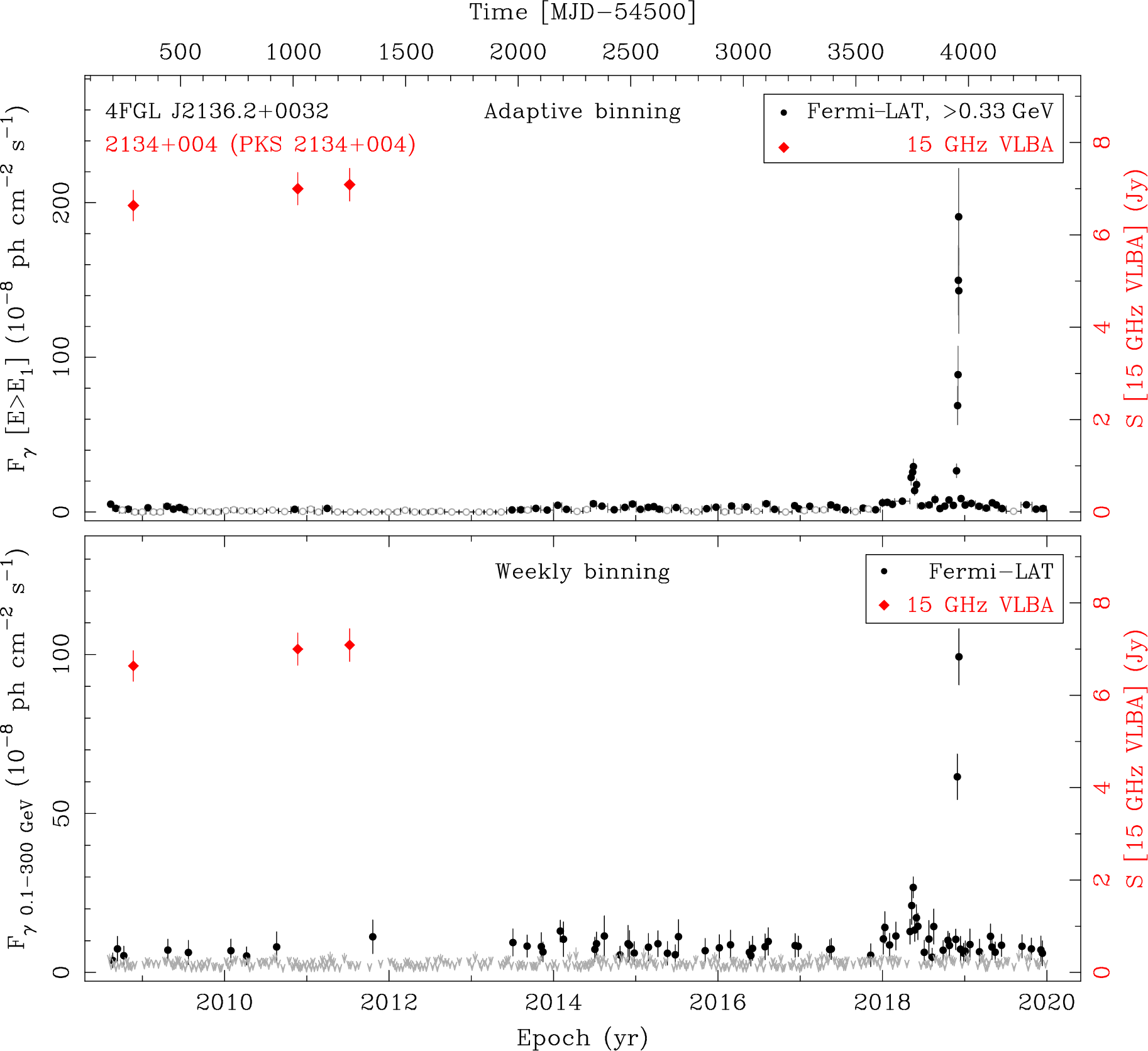

Fermi LAT and 15 GHz VLBA Light Curves |

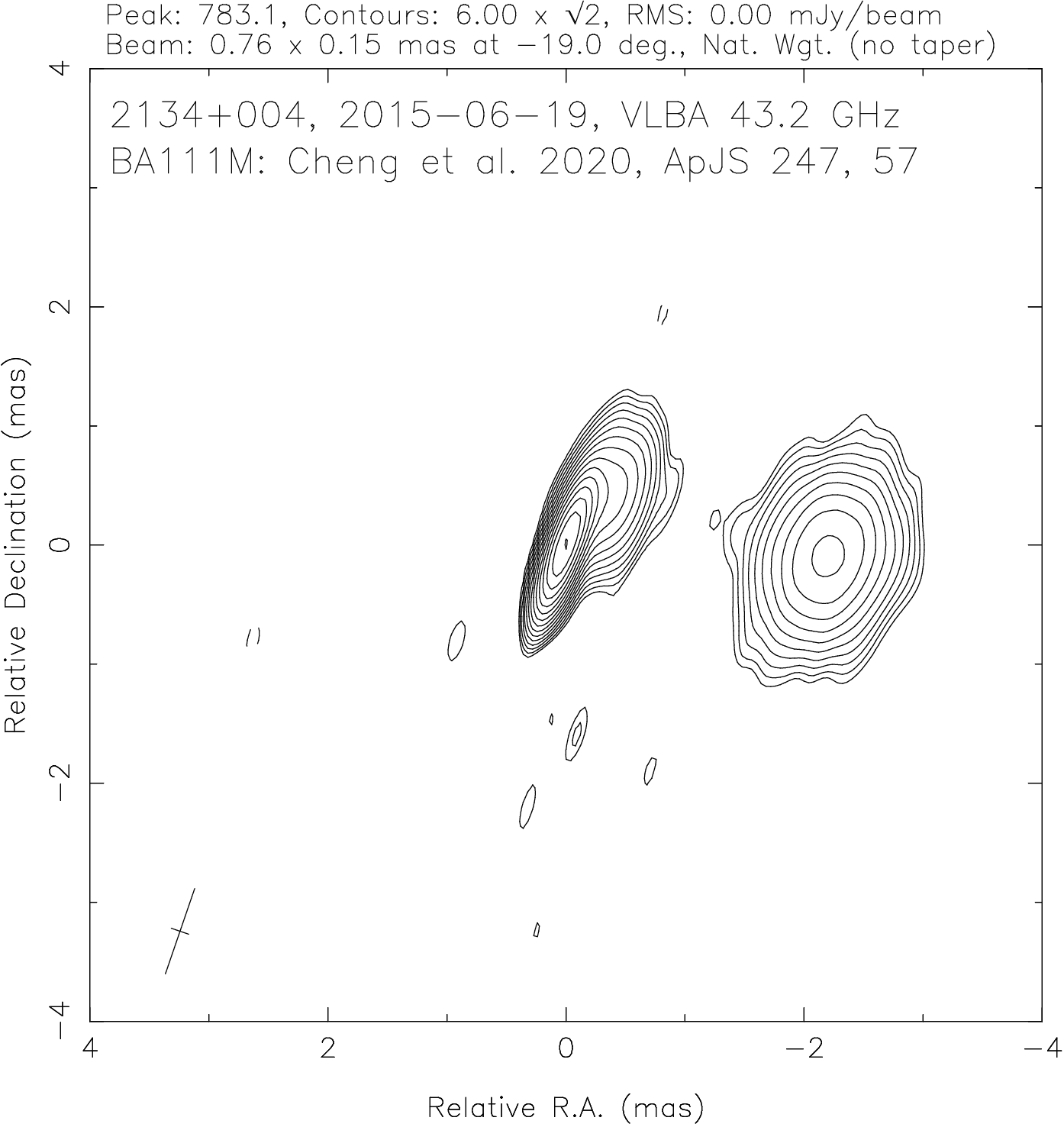

VLBA 43 GHz: Cheng et al. 2020 |

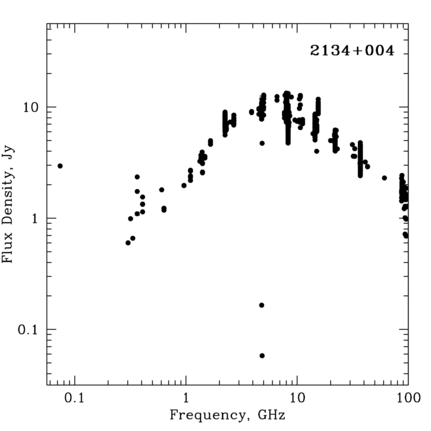

Multiepoch Radio Spectrum: |
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
||||||||||||||||||||
| Comments: | HFP in D00 sample; VLA image also by MBP93; non-GPS based on variability and pol. | ||||||||||||||||||||
If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
| Epoch (YYYY-MM-DD) | VLBA Code | VLBA I (mJy) |
VLBA P (mJy) |
VLBA P (%) |
VLBA EVPA (deg.) |
Stokes I Image (Nat. weight) |
Visibility Data |
Stokes I Radplot | Polarization Image (Nat. weight) |
Full Montage |
2025-08-31 * | BK255AK | 2024-12-27 * | BL286BK | 6566 | 60 | 0.9 | 175 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2024-06-02 * | BL286BG | 6370 | 112 | 1.8 | 176 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-12-15 * | BL286BB | 6400 | 105 | 1.6 | 171 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2023-05-27 * | BL286AU | 7327 | 119 | 1.6 | 168 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-08-09 | BL286AN | 7067 | 174 | 2.5 | 2 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-02-07 | BL286AG | 6510 | 153 | 2.3 | 177 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2022-01-22 | BL286AF | 7239 | 192 | 2.7 | 175 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2011-07-09 | BH168 | 7133 | 113 | 1.6 | 14 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2010-11-20 | BL149CX | 7024 | 148 | 2.1 | 15 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2008-11-19 | BL149BE | 6674 | 172 | 2.6 | 18 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2006-07-07 | BL137G | 6220 | 149 | 2.4 | 15 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-11-17 | BH133 | 6376 | 154 | 2.4 | 13 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-09-16 | BL123M | 6076 | 147 | 2.4 | 10 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-06-05 | BU026C | 6110 | 158 | 2.6 | 12 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2005-06-03 | BL123H | 5976 | 152 | 2.6 | 10 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2004-11-01 | BG152A | 5532 | 151 | 2.7 | 23 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2004-08-12 | BU026B | 5814 | 191 | 3.3 | 19 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2004-06-11 | BL111M | 6016 | 184 | 3.1 | 19 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-10-27 | BM155C | 5720 | 103 | 1.8 | 17 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-09-20 | BE031 | 6302 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2003-08-27 | BU026A | 6096 | 185 | 3.0 | 21 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2003-02-21 | BA064G | 5824 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2003-02-05 | BL111E | 6339 | 174 | 2.8 | 20 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2002-12-12 | BU023C | 5814 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2002-05-31 | BL111A | 6132 | 182 | 3.0 | 16 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-09-13 | BI018B | 5950 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2001-09-06 | BM156 | 6245 | 77 | 1.2 | 17 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-08-06 | BM155A | 5780 | 103 | 1.8 | 12 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-06-09 | BS085E | 6632 | 183 | 2.8 | 15 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 2001-03-15 | BK068G | 6085 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 2000-01-05 | BM110F | 6395 | 266 | 4.2 | 18 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-12-12 | BR057F | 6686 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1999-09-12 | BM110E | 6464 | 247 | 3.8 | 17 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1999-07-19 | BK068B | 6200 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1999-05-29 | BM110D | 6536 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1998-11-23 | BR057 | 6013 | 146 | 2.4 | 24 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-11-01 | BK052E | 6013 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1998-08-03 | BT039 | 6256 | 276 | 4.4 | 27 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1998-01-03 | BH045A | 5542 | 250 | 4.5 | 22 | FITS PNG PDF | UVF | PNG PDF | p:PNG p:PDF f:PNG f:PDF | PNG | 1996-10-27 | BK037D | 5104 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1996-04-22 | BS036 | 5320 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1995-07-28 | BZ014 | 5543 | no data | FITS PNG PDF | UVF | PNG PDF | PNG | 1995-05-27 | BP018 | 5394 | no data | FITS PNG PDF | UVF | PNG PDF | PNG |
