7.1 Secondary Camera

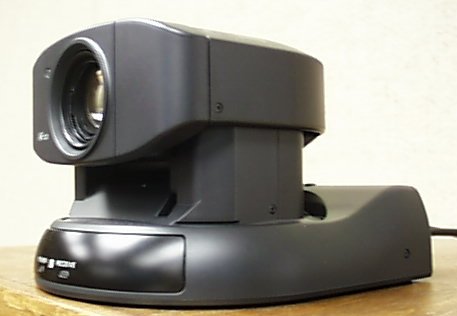

Secondary Video Camera
Every NRAO video conferencing system is equipped with a secondary
camera that is optically identical to the main camera, but whose remote
control provides a slightly different selection of operations.
This remote allows use of only six preset camera pan/zoom positions,
but does allow you also to store a backlight compensation setting as
part of each camera preset. Backlight compensation lets you balance
the visibility of the images on the projector screen relative to those
of people in the room when someone is making a presentation using an
overhead projector. (Backlight compensation is also available for the
main camera, but it can be set only globally within the Polycom
ViewStation, not separately for each camera preset.)
The ability to store a backlight compensation setting with each preset
gives the secondary camera a big advantage over the main camera when
covering presentations that use the overhead or LCD projectors,
The control for the secondary camera has two zoom speeds and finer
camera panning.
Presets for the secondary camera are set by pushing the PRESET button
and the desired preset number simultaneously on its remote control, and
then invoked by pressing only the numbered buttons. There is no
ViewStation menu on the TV monitor for the secondary camera.
Auto voice tracking is not available with the secondary camera.
Presets for the secondary camera will be lost if power is completely
disconnected from this camera, but not if it is turned off/on using the
POWER button on its remote control.
The remote control for the secondary camera must be pointed towards the
camera more precisely than remote control for the main camera, so it is
important that the secondary camera operator have a clear view of the
camera.
The focus of the secondary camera can also be adjusted manually from
its remote control using the FOCUS button, but this feature should
rarely be needed.
Table 2:
Pros and cons of secondary camera
Advantage |
Disadvantage |
Backlight compensation |
Second remote needed |
Finer pan/zoom control |
Remote more directional |
Manual focus possible |
No audio tracking |
Second camera angle |
Fewer presets |
