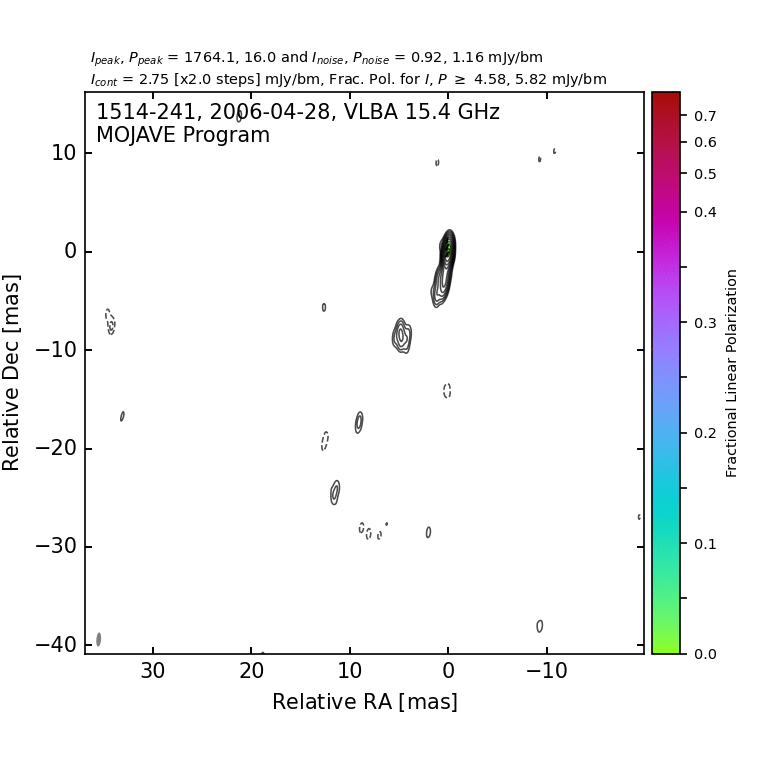

Common Name: AP Librae MOJAVE 15 GHz [Total intensity movie]   | [Polariz. movie] VLBA 1.4 GHz: BG246
B1950 Name: 1514-241 2 cm VLBA Image map
J2000 Name: J1517-2422
R.A. and Dec. (J2000): 15h17m41.813s
-24d22'19.476"
AGN Class: LSP BL Lac
Redshift: 0.049 (Jones et al. 2009, MNRAS, 399, 683)
Luminosity Distance: 215 Mpc ; 0.95 pc/mas
Radio Spectrum: Flat
Gamma-ray Association LAT: Y, EGRET: P, TeV: Y
Kpc-scale morphology: One-sided Halo
Jet Speed: Maximum: 1919 ± 81 μas/y ; 6.21 ± 0.26 c
Median: N/A ;
based on 3 moving features
Lister et al. 2019, ApJ,874,43

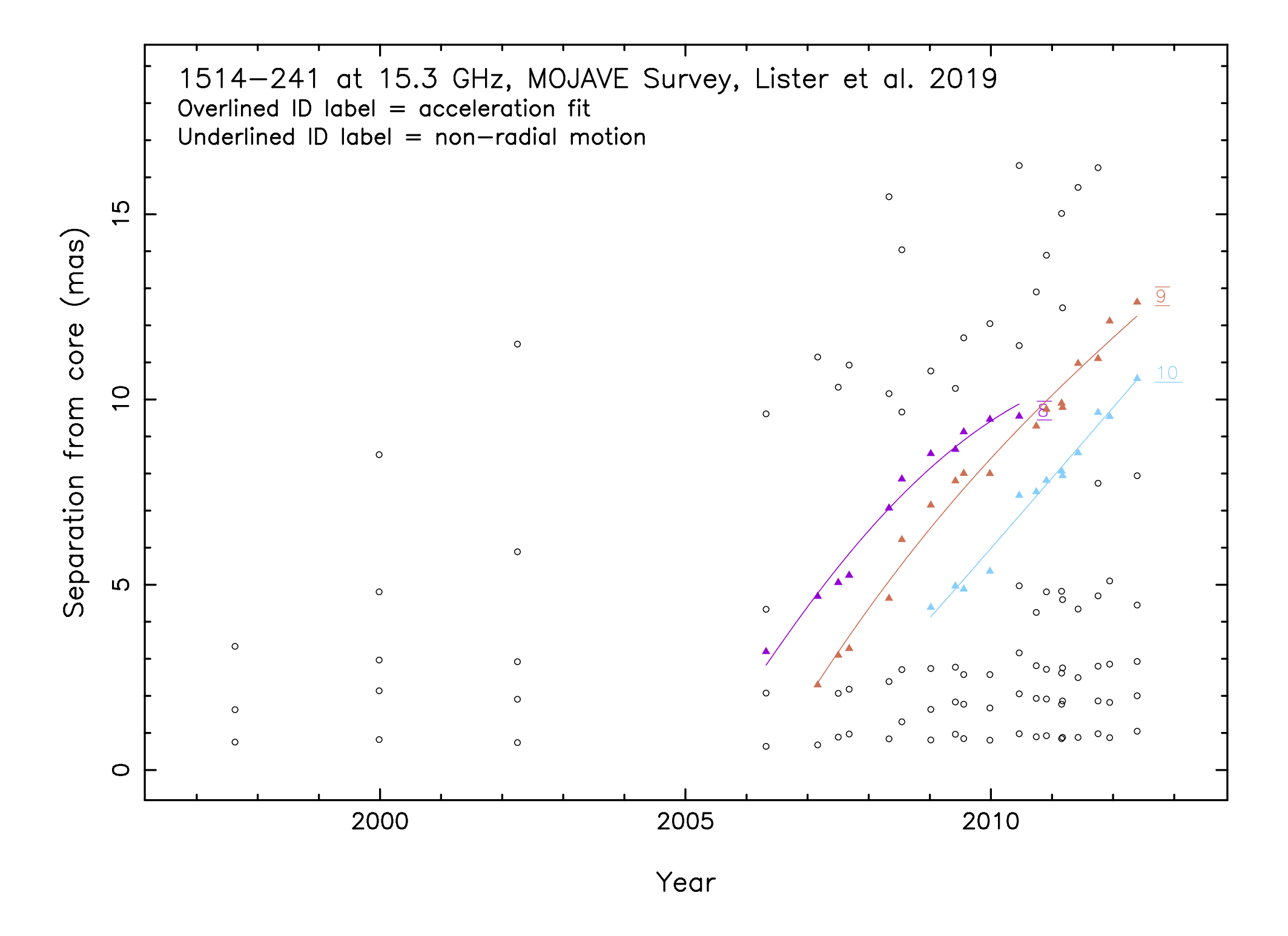

Separation Versus Time Plot: PNG    PDF

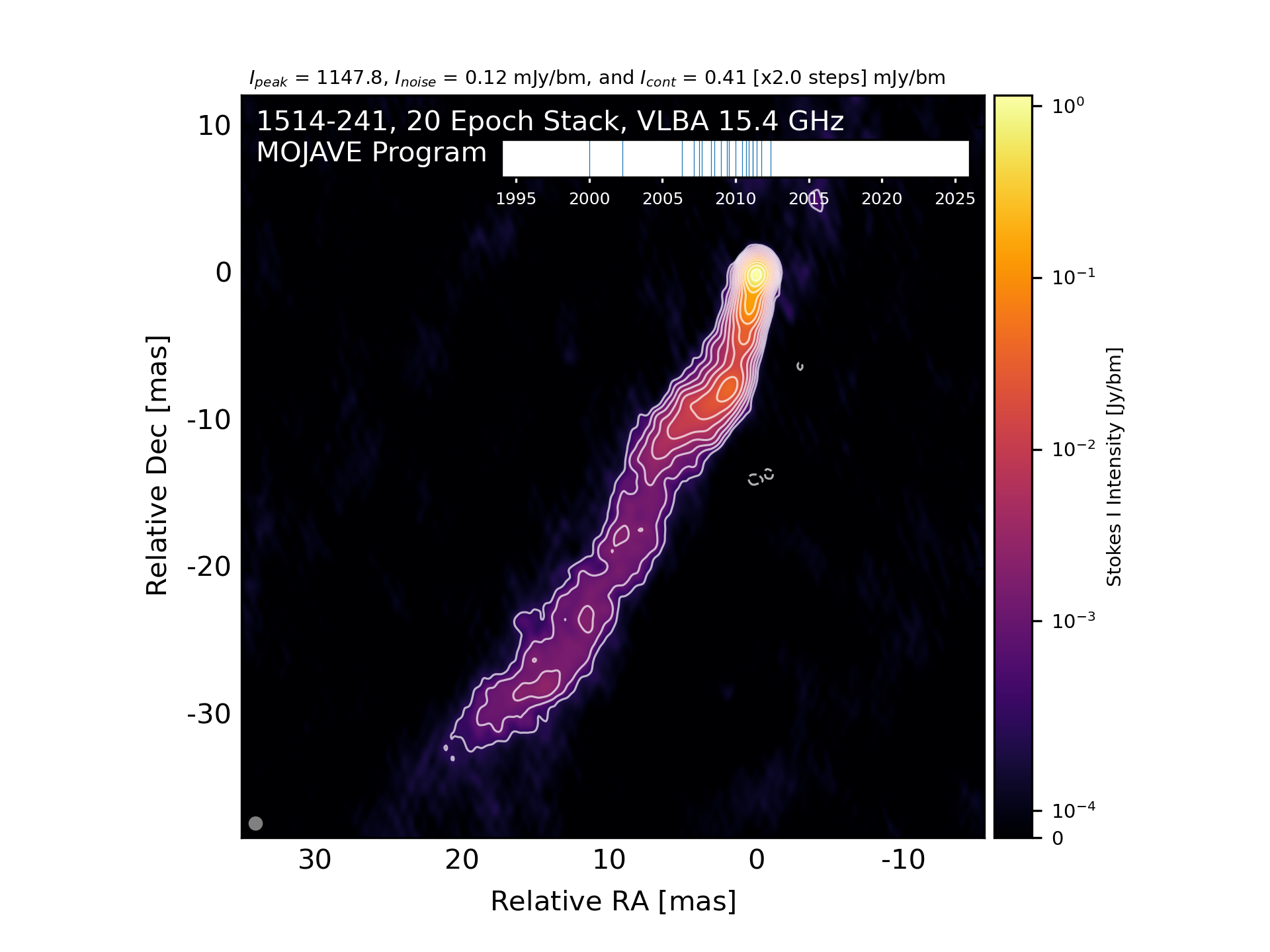

Stacked 15 GHz Stokes I VLBA images:
Natural weight:   PNG PDF FITS
Circular Beam:   PNG PDF FITS
Tapered Beam:   PNG PDF FITS
Stacking for 1994-2015:   FITS

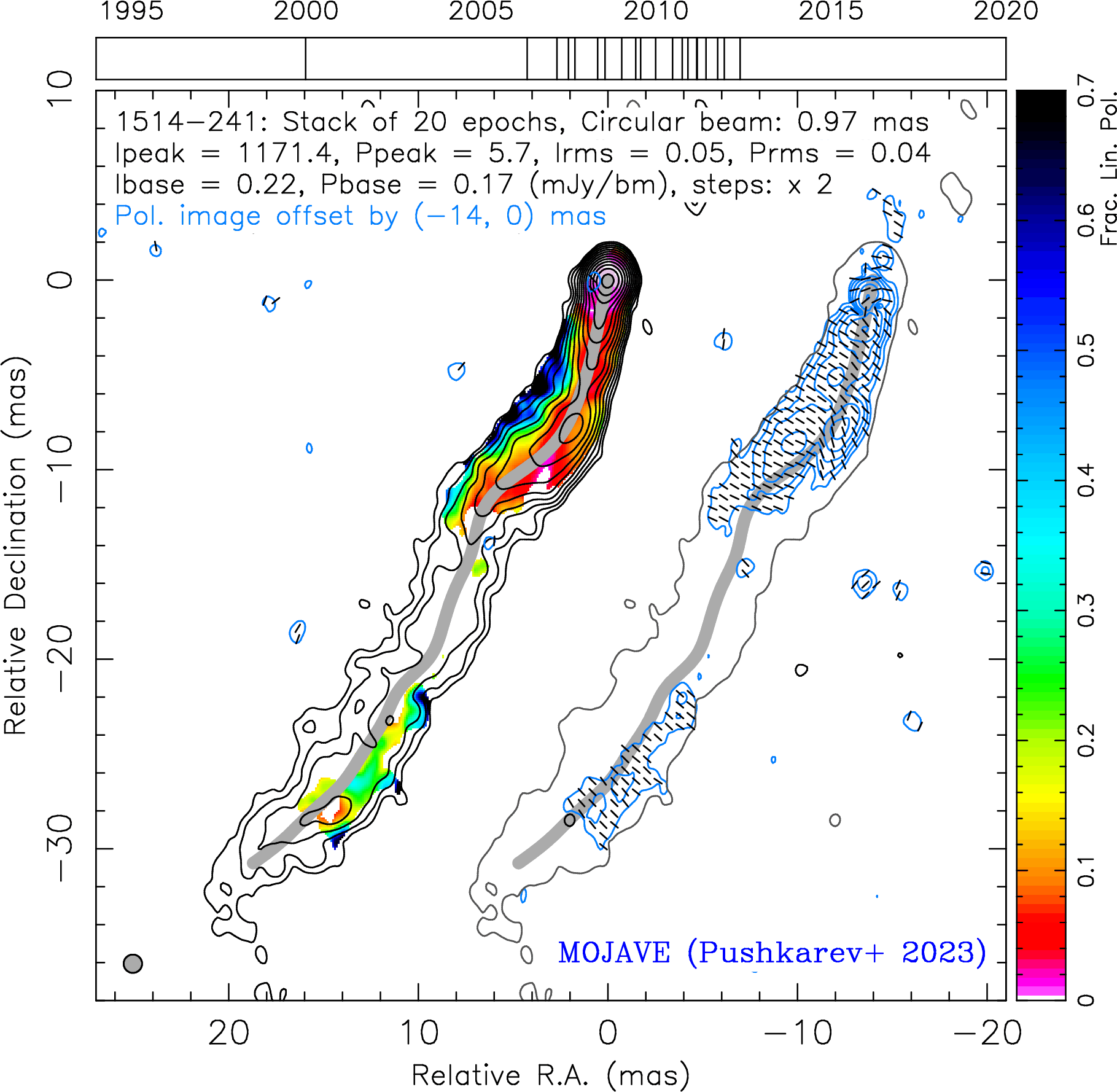

Stacked 15 GHz Polarization VLBA images:

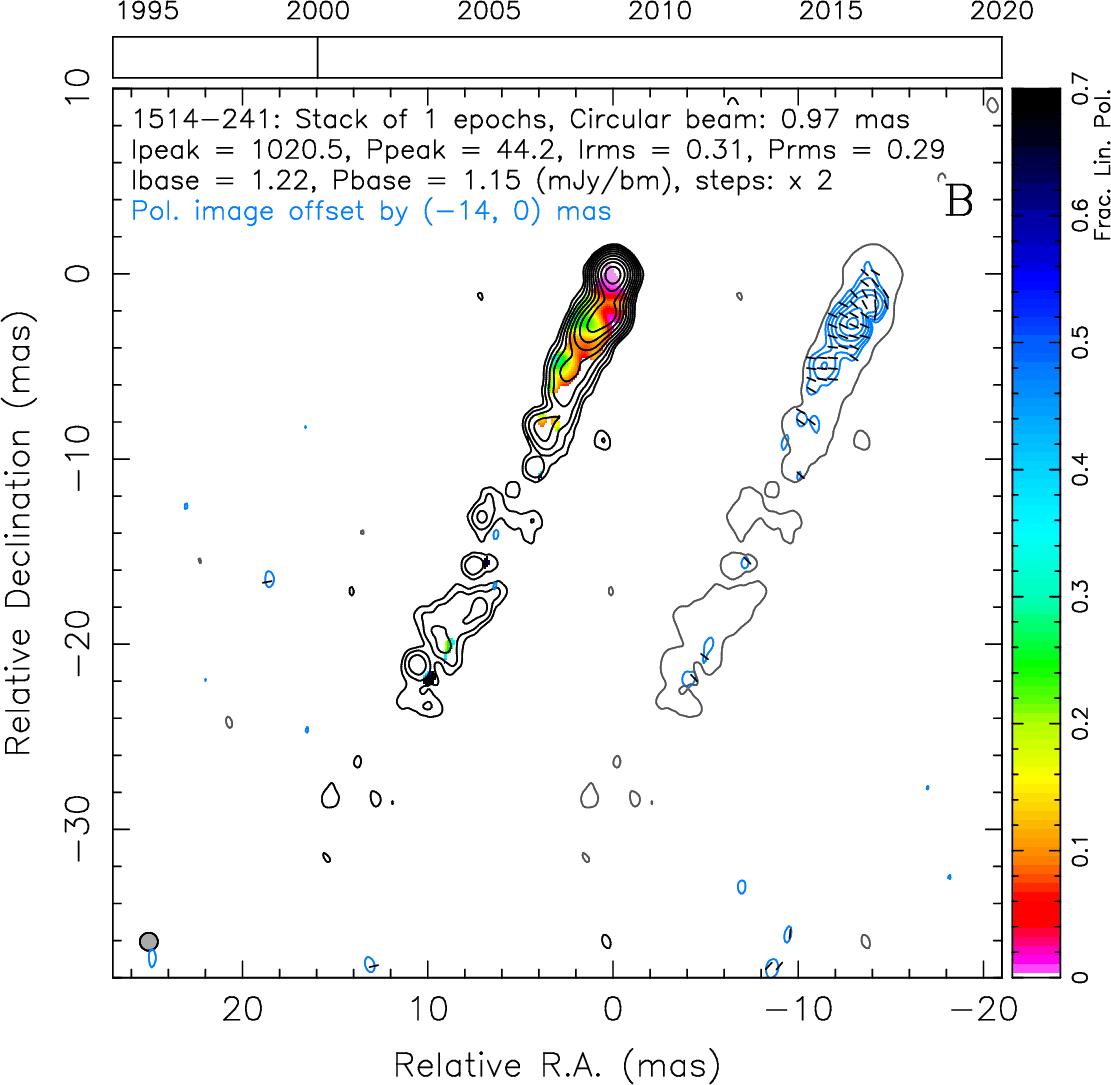

Method I:   Cumulative GIF, pol PNG, I FITS, P FITS, m FITS, EVPA FITS

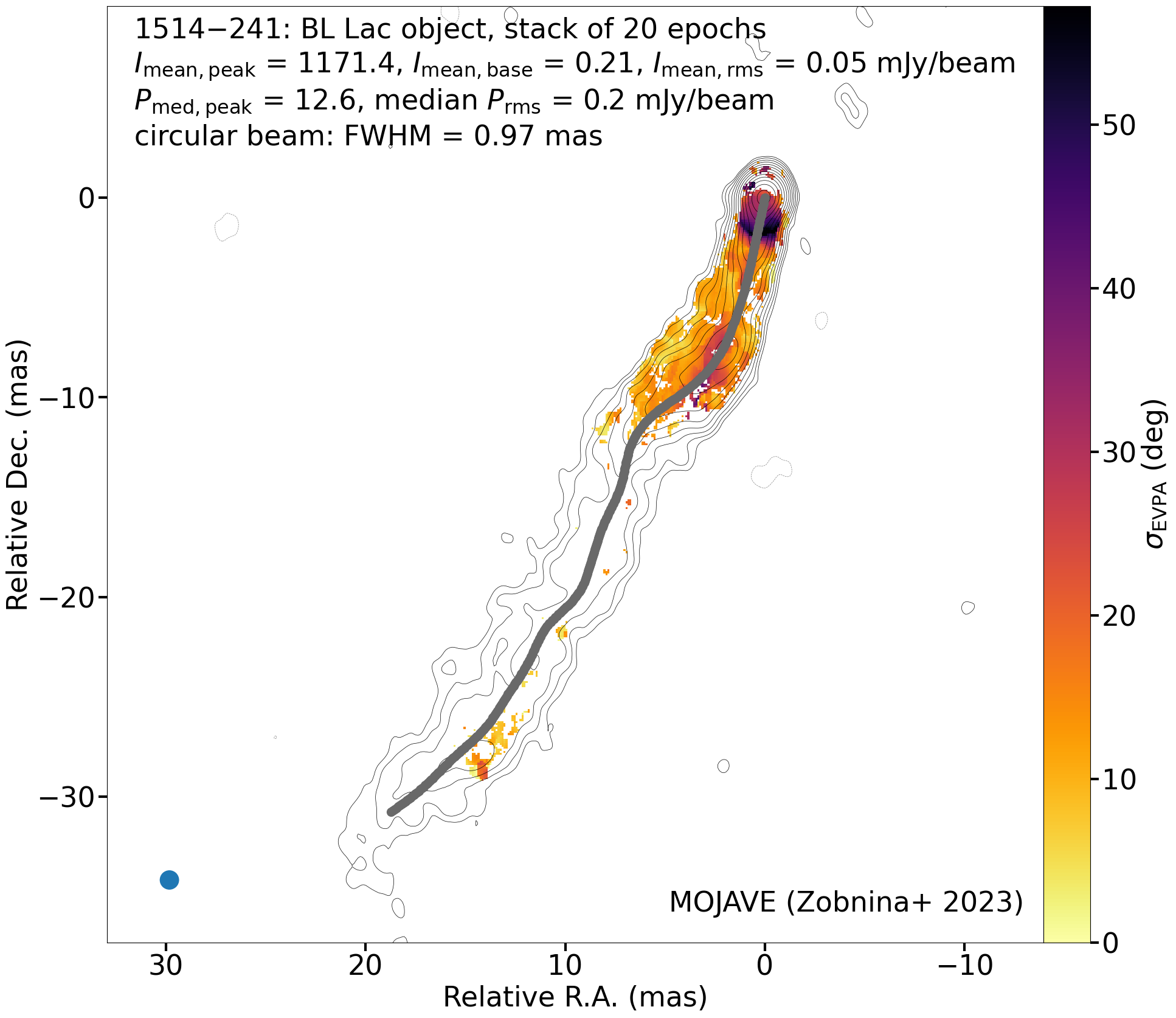

Method II:   std EVPA PNG, FITS

Rotation Measure 8-15 GHz Map: | Not available |

Spectral Index 8-15 GHz Map: | 2006_04_28 |


Multifrequency MOJAVE VLBA Data:

Epoch
8.1 GHz
8.4 GHz
12.1 GHz
2006-04-28
uvf  FITS  PNG  PDF
uvf  FITS  PNG  PDF
uvf  FITS  PNG  PDF

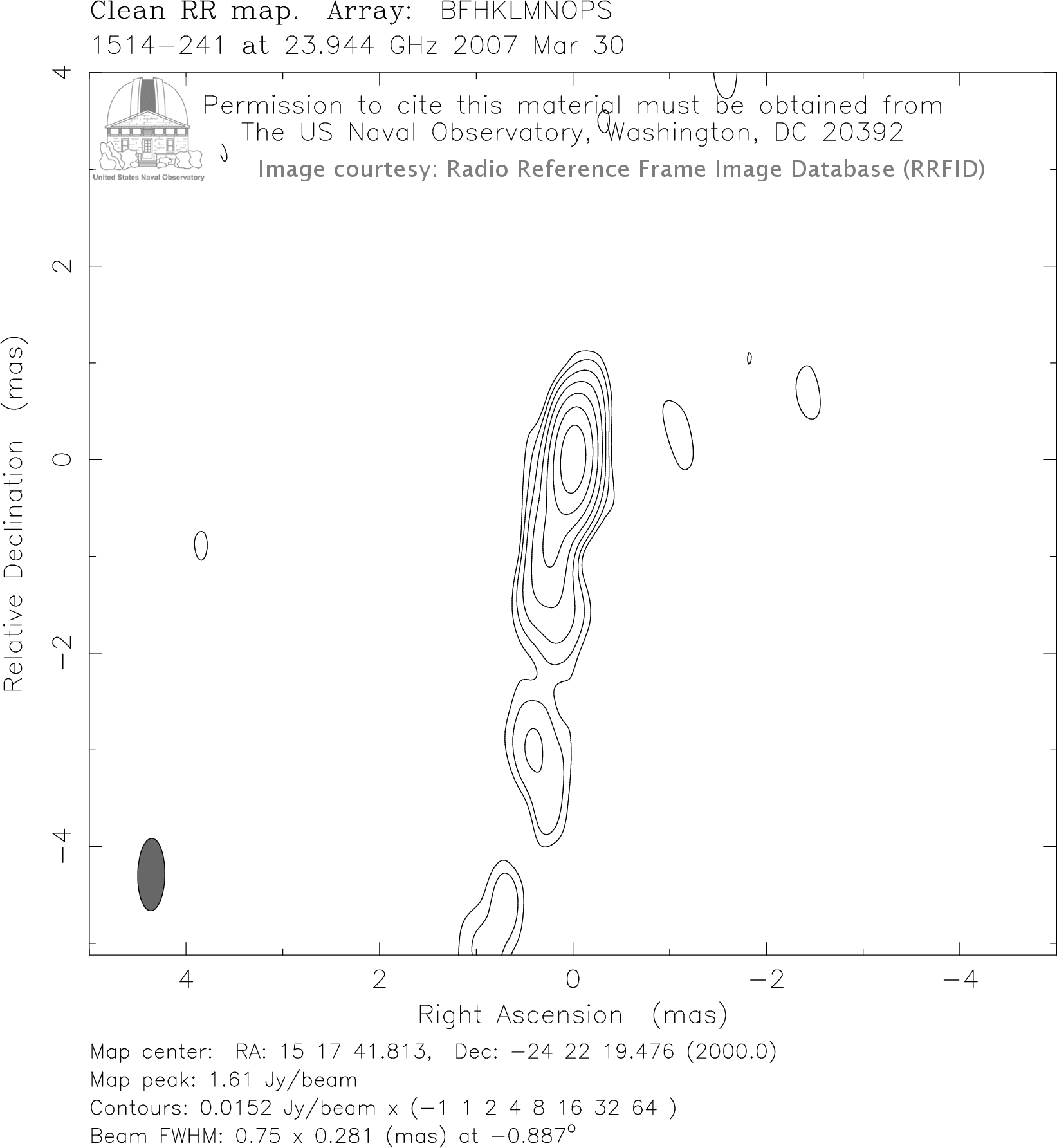

VLBA 23 GHz: RRIFD Database

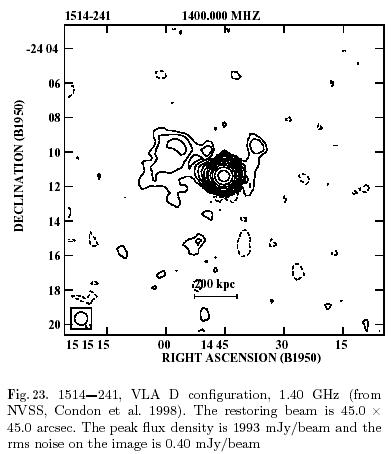

Kpc-scale: Cassaro, Stanghellini, Bondi 1999, AAS 139, 601
23 GHz Image
Kpc Image

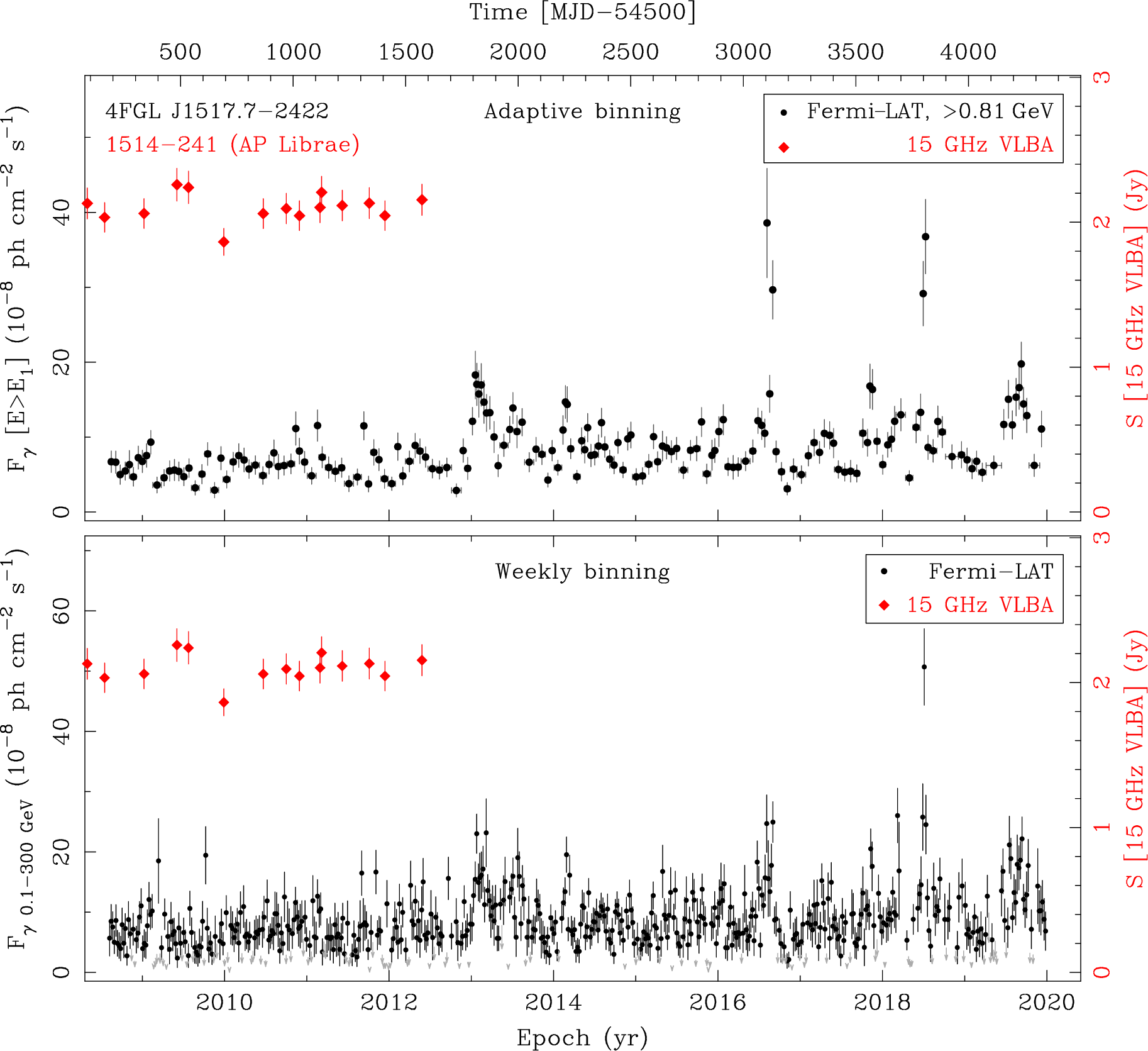

Fermi LAT and 15 GHz VLBA Light Curves

Fermi LAT and 15 GHz VLBA Light Curves
VLBA 43 GHz:

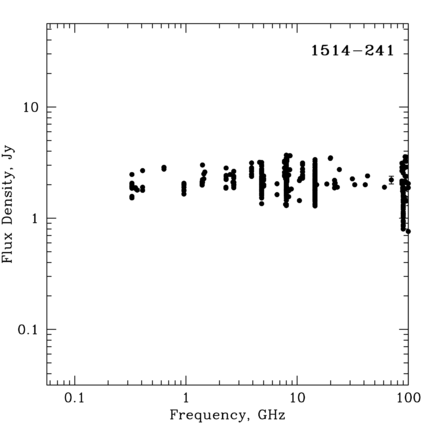

Multiepoch Radio Spectrum:
43 GHz Image
Radio Spectrum
Comments: Promoted 1.5 Jy; 1FM source; low-Lum MOJAVE_2

If you use these data in a publication, we ask that you please contact us so we can add a link to the list of external MOJAVE publications, and ask that you cite Lister et al., 2018, ApJS, 234, 12 and include the following acknowledgment: "This research has made use of data from the MOJAVE database that is maintained by the MOJAVE team (Lister et al. 2018)"

Important Note: The MOJAVE team, working with the OVRO 40m AGN monitoring team checks and adjusts the flux density scaling of the MOJAVE VLBA data for possible systematics based on near-simultaneous OVRO 40m measurements at 15 GHz. Asterisked entries below denote epochs that have not yet been checked and corrected.
Epoch
(YYYY-MM-DD)
VLBA Code VLBA I
(mJy)
VLBA P
(mJy)
VLBA
P (%)
VLBA
EVPA (deg.)
I Image (Nat. Weight) Visibility
Data
Stokes I Radplot Polarization
Full
Montage
2012-05-24 BL178AK 2105 32 1.5 170 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-12-12 BL178AC 1628 21 1.3 123 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-10-03 BL178AA 2098 10 0.5 57 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-06-06 BL149DJ 2086 22 1.0 60 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-03-05 BL149DD 2172 30 1.4 52 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2011-02-27 BL149DC 2069 23 1.1 49 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-11-29 BL149CY 2000 23 1.2 53 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-09-29 BL149CR 2030 24 1.2 61 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2010-06-19 BL149CK 2043 30 1.4 59 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-12-26 BL149CF 1832 8.9 0.5 37 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-07-23 BL149BQ 2258 35 1.6 49 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-06-03 BL149BM 2261 51 2.3 47 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2009-01-07 BL149BG 2044 64 3.1 47 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2008-07-17 BL149AK 2001 75 3.7 48 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2008-05-01 BL149AO 2103 62 2.9 42 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2007-09-06 BL149AG 2211 44 2.0 51 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2007-07-03 BL149AC 2593 69 2.7 52 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2007-03-02 BL137O 3027 89 2.9 48 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2006-04-28 BL137D 2275 144 6.3 139 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
2002-04-02 BR077J 1680 no data FITS   PNG   PDF UVF PNG   PDF PNG
1999-12-27 BG095 2142 77 3.6 56 FITS   PNG   PDF UVF PNG   PDF p:PNG  p:PDF   f:PNG  f:PDF PNG
1997-08-18 BZ022 2123 no data FITS   PNG   PDF UVF PNG   PDF PNG
