4.4 Calls to External Sites via ISDN
Charlottesville's CV-ER311 Polycom FX unit has direct ISDN connections, and ISDN
calls of 384 Kbps and below can be placed or received directly from it.
The other NRAO sites do not have direct ISDN service, but they can
receive calls from, or place calls to, ISDN sites outside the NRAO by
connecting to the NRAO ISDN Gateway. At present, this Gateway supports
only 128 Kbps (2x64 Kbps) calls. For such calls, you must dial one
ISDN phone number for each 64 Kbps connection (unless the far end is
equipped to negotiate the second connection automatically).
Start the process from the Polycom Top Menu:

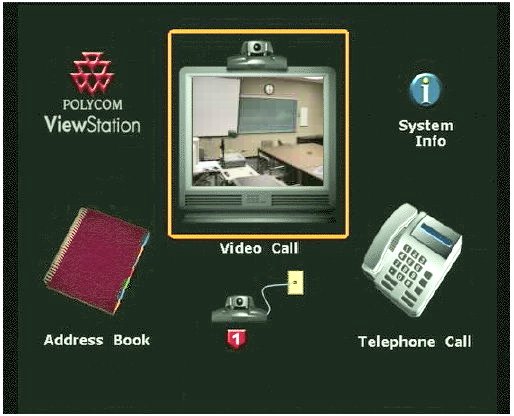

Polycom Top Menu with Video Call Icon highlighted
If you see any other menu when you pick up the ViewStation remote
control, press the MENU button on the remote until you reach the
Polycom Top Menu (the unit will also chime when you reach the top
menu level).
